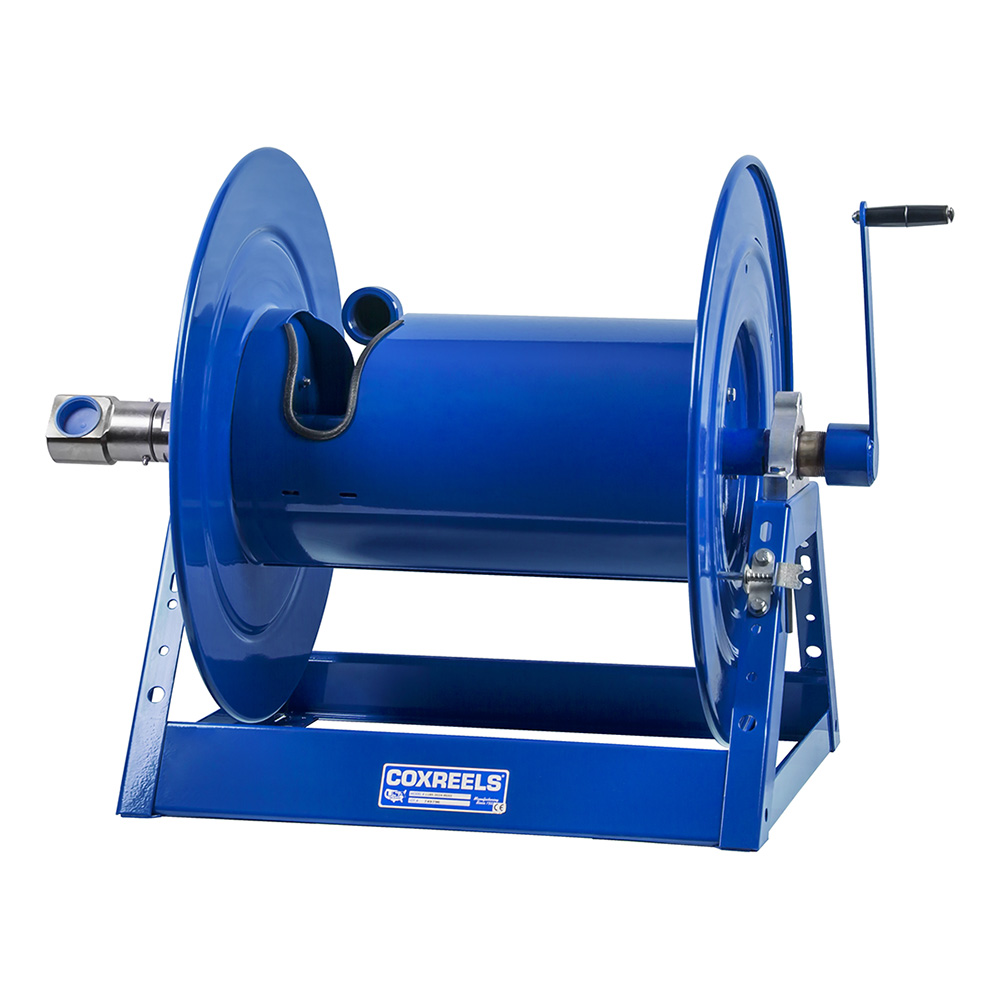

COXREELS 1185-1124-BUXX Hand Crank Hose Reel, 50 ft., 1 1/2 Inch I.D., 24 x 26 7/8 x 26 Inch Size, Blue
Get it by Tuesday, Sep 1
5.00% off
€2,286.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hand Crank Hose Reel |
| Base Motion Type | Stationary |
| Base Size | 17" x 22.25" |
| Bearing Construction | PTFE |
| Drive Type | Hand Crank |
| Enclosed | No |
| Fasteners Included | No |
| Features | Coxreels Exclusive Low Profile Outlet Riser And Open Drum Design Provide A Non-Crimping, Flat Smooth Hose Wrap. |
| For Dual Hose | No |
| Handle Length | 3 1/2" |
| Height | 26" |
| Hose Capacity | 50 ft. |
| Hose Included | No |
| Hose Inside Dia. | 1/2" |
| Hose Length | 50 ft. |
| Hose Reel Primary Application | Air, Fire Hose, Garden Hoses, Hydraulic Oil, Nitrogen, Oil, Washdown, Water |
| Hose Reel Type | Wall Mount Hose Reel |
| Included | Locking Pin |
| Included Gooseneck | Yes |
| Included Hose | No |
| Included Leader Hose | No |
| Inside Dia. | 1 1/2" |
| Length | 24" |
| Max. Operating Temp. | 250°F |
| Min. Operating Temp. | -40°F |
| Mount Base Height | 22 1/4" |
| Mount Base Width | 17" |
| Mount Hole Dia. | 1/2" |
| Mounting | Wall Mounted |
| Mounting Hole Center To Center Height | 16" |
| Mounting Hole Center To Center Width | 15" |
| Mounting Size | 14.75" x 16" |
| No. Of Mount Holes | 8 |
| No. Of Mounting Holes | 8 |
| Outside Dia. | 2.062" |
| Overall Height | 26" |
| Overall Length | 24" |
| Overall Width | 26 7/8" |
| Product Datasheet | coxreels-1185-1124-buxx.pdf |
| Reel Color | Blue |
| Reel Dia. | 2 1/16" |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Reel Width | 11 1/2" |
| Seal Material | TFE/P |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 1 1/2" |
| Swivel Inlet Thread Size | 1 1/2" |
| Swivel Inlet Type | NPT |
| Swivel Material | Nickel Plated Steel |
| Swivel Outlet Gender | Female |
| Swivel Outlet Size | 1 1/2" |
| Swivel Outlet Thread Size | 1 1/2" |
| Swivel Outlet Type | NPT |
| Width | 26 7/8" |
Shipping Info:
| Ship weight (kg) | 34.2 |
| Ship height (cm) | 66.04 |
| Ship length (cm) | 60.96 |
| Ship width (cm) | 68.28 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Overall Height | Mounting Size | Base Size | Overall Width | Max. Operating Pressure | Hose Inside Dia. | Height | Reel Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1185-1124 | 26" | 14.75" x 16" | 17" x 22.25" | 25" | 1500 psi | 1 1/2" | 26" | 10 1/2" | €1,450.14 | |
| 1185-2024 | 26" | 23.25" x 16" | 25.5" x 22.25" | 33 1/2" | 1500 psi | 1 1/2" | 26" | 10 1/2" | €1,447.84 | |
| 1185-1124-C | 26" | 14.75" x 16" | 17" x 22.25" | 25" | 1500 psi | - | - | - | €1,177.18 | |
| 1185-1524 | 26" | 18.75" x 16" | 21" x 22.25" | 29" | 1500 psi | 1 1/2" | 26" | 24" | €1,432.97 | |
| 1185-1524-C | 26" | 18.75" x 16" | 21" x 22.25" | 29" | 1500 psi | 1/2" | - | - | €1,179.02 | |
| 1185-2020 | 21.63" | 23.25" x 16" | 25.5" x 19.63" | 33 1/2" | 1500 psi | 1/2" | - | - | €882.42 | |
| 1185-2020-C | 21.63" | 23.25" x 16" | 25.5" x 19.63" | 33 1/2" | 1500 psi | - | - | - | €1,194.73 |
