COXREELS 1175-6-200-E-SP Electric Motor Driven Hose Reel, 200 ft., 24 x 32 7/8 x 26 1/8 Inch Size
Get it by Tuesday, Dec 23
10.00% off
€5,079.93 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hose Reel |
| Base Motion Type | Stationary |
| Base Size | 17" x 20.13" |
| Bearing Type | Permanently Lubricated |
| Color | Gray |
| Drive Type | Motor Driven |
| Duty Rating | Heavy Duty |
| Enclosed Reel | No |
| Features | Gear Driven Drive System, Heavy Duty Solid Spun Discs With Rolled Edge, Low Profile Risers For No-Hump Winding |
| Finish | Unfinished |
| For Dual Hose | No |
| Hazardous Location | No |
| Height | 26 1/8" |
| Hose Capacity | 200 ft. |
| Hose Included | No |
| Hose Inside Dia. | 1" |
| Hose Length | 200 ft. |
| Hose Outside Dia. | 1 7/16" |
| Hose Reel Primary Application | Air, Chemical Fluid Transfer, Clean Fluids, Oil/Lubrication, Pest Control, Pressure Washer, Spray Operations, Washdown, Water |
| Hose Reel Type | Floor, Vehicle Mount Hose Reel, Wall Mount Hose Reel |
| Housing Material | Steel |
| Hp | 1/3 hp |
| Includes Gooseneck | Yes |
| Includes Leader Hose | No |
| Latch Type | Locking |
| Length | 24" |
| Material | Stainless Steel |
| Max. Pressure | 3000 psi |
| Maximum Operating Temperature | 250°F |
| Minimum Operating Pressure | 0 psi |
| Minimum Operating Temperature | -40°F |
| Motor Type | 1/3 hp 12V Dc Motor |
| Motor Voltage | 12V DC |
| Mount Base Height | 20 1/8" |
| Mount Base Width | 25 1/2" |
| Mounting | Bench, Floor, Truck, Wall |
| Mounting Hole Center To Center Width | 23 1/2" |
| Mounting Size | 23.31" x 13.75" |
| Overall Height | 26 1/8" |
| Overall Length | 24" |
| Overall Width | 32 7/8" |
| Reel Color | Blue |
| Reel Dia. | 10 1/2" |
| Reel Diameter | 10 1/2" |
| Reel Finish | Passivated |
| Reel Material | Stainless Steel |
| Reel Width | 20" |
| Seal Material | Nitrile |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 1" |
| Swivel Inlet Thread Size | 1"-11.5 |
| Swivel Inlet Type | NPT |
| Swivel Material | Stainless Steel |
| Swivel Outlet Gender | Female |
| Swivel Outlet Size | 1" |
| Swivel Outlet Thread Size | 1"-11 1/2 |
| Swivel Outlet Type | NPT |
| Vacuum Rating | Not Rated |
| Weight | 96 lbs. |
| Width | 32 7/8" |
Shipping Info:
| Ship weight (kg) | 43.2 |
| Ship height (cm) | 66.37 |
| Ship length (cm) | 60.96 |
| Ship width (cm) | 87.63 |
| Country of Origin | US |
Product Variants
| Model | Drive Type | Hose Capacity | Overall Height | Mounting Size | Hose Length | Overall Width | Reel Width | Reel Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

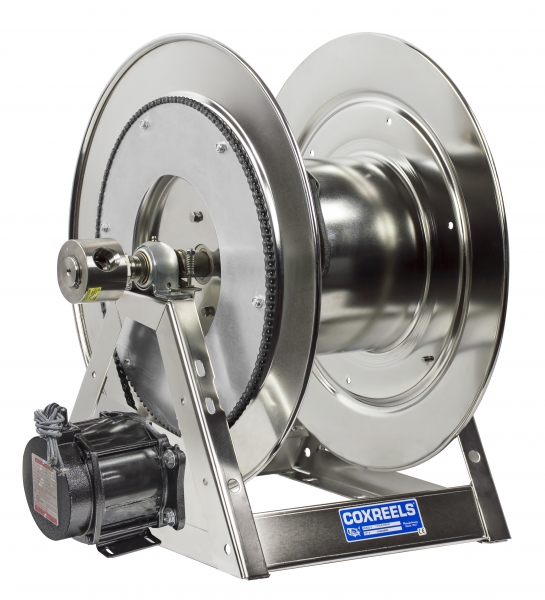

| 1175-6-100-A-SP | Compressed Air | - | 26.13" | 14.81" x 13.75" | 200 ft. | 24 1/2" | - | - | €3,376.34 | |
| 1175-6-100-A-SS | Hand Crank | - | 26.13" | 14.81" x 13.75" | 100 ft. | 24 1/2" | - | - | - | RFQ
|
| 1175-6-100-AB-SP | - | - | 26.13" | 14.81" x 13.75" | 100 ft. | - | - | - | - | RFQ
|
| 1175-6-100-AB-SS | - | - | 26.13" | 14.81" x 13.75" | 100 ft. | 24 1/2" | - | - | - | RFQ
|
| 1175-6-100-E-SP | Motor Driven | 100 ft. | 26 1/8" | 14.81" x 13.75" | 100 ft. | 24 3/8" | 11 1/2" | Stainless Steel | €5,252.45 | |
| 1175-6-100-E-SS | Hand Crank | - | 26.13" | 14.81" x 13.75" | 100 ft. | 26" | - | - | - | RFQ
|
| 1175-6-100-EA-SP | - | - | 26.13" | 14.81" x 13.75" | 100 ft. | - | - | - | €3,534.30 |
