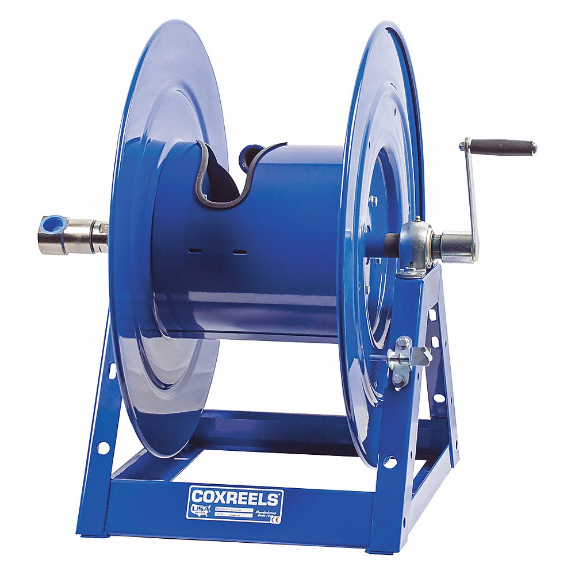

COXREELS 1175-6-100 Hand Crank Hose Reel, 100 ft., 1 Inch I.D., 24 x 20 x 26 1/8 Inch Size, Blue
Get it by Tuesday, Dec 23
10.00% off
€1,070.46 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hand Crank Hose Reel |
| Base Motion Type | Stationary |
| Base Size | 17" x 20.13" |
| Bearing Construction | Permanently Lubricated |
| Drive Type | Hand Crank |
| Duty Rating | Medium Duty |
| Enclosed | No |
| Fasteners Included | No |
| Features | "A" Frame, Cnc Spun Discs, Outlet Riser, Pillow Block Bearings, Professional Grade Heavy Duty Steel Construction |
| For Dual Hose | No |
| Handle Length | 3 1/2" |
| Height | 26 1/8" |
| Hose Capacity | 100 ft. |
| Hose Included | No |
| Hose Inside Dia. | 1" |
| Hose Length | 100 ft. |
| Hose Reel Primary Application | Air, Bulk Liquid Handling, Chemical Fluid Transfer, Fire Booster Hose, Hydro Seeding, Oil/Lubrication, Pest Control, Spraying Operation, Washdown, Water |
| Hose Reel Type | Wall Mount Hose Reel |
| Includes | Locking Pin |
| Includes Gooseneck | Yes |
| Includes Hose | No |
| Includes Leader Hose | No |
| Inside Dia. | 1" |
| Length | 24" |
| Max. Operating Pressure | 3000 psi |
| Maximum Operating Pressure | 3000 psi |
| Maximum Operating Temperature | 250°F |
| Minimum Operating Temperature | -40°F |
| Mount Base Height | 20 1/8" |
| Mount Base Width | 17" |
| Mount Hole Diameter | 1/2" |
| Mounting | Bench, Floor, Truck, Wall |
| Mounting Hole Center To Center Height | 13 3/4" |
| Mounting Hole Center To Center Width | 15" |
| Mounting Size | 14.81" x 13.75" |
| Number Of Mount Holes | 8 |
| Number Of Mounting Holes | 8 |
| Outside Dia. | 1.438" |
| Overall Height | 26 1/8" |
| Overall Length | 24" |
| Overall Width | 20" |
| Reel Color | Blue |
| Reel Diameter | 24" |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Reel Width | 11 1/2" |
| Seal Material | TFE/P |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 1" |
| Swivel Inlet Thread Size | 1" |
| Swivel Inlet Type | NPT |
| Swivel Material | Nickel Plated Steel |
| Swivel Outlet Gender | Female |
| Swivel Outlet Size | 1" |
| Swivel Outlet Thread Size | 1" |
| Swivel Outlet Type | NPT |
| Weight | 67 lbs. |
| Width | 20" |
Shipping Info:
| Ship weight (kg) | 31.5 |
| Ship height (cm) | 66.37 |
| Ship length (cm) | 60.96 |
| Ship width (cm) | 71.45 |
| Country of Origin | US |
Product Variants
| Model | Hose Capacity | Overall Height | Overall Length | Mounting Size | Hose Length | Base Size | Overall Width | Duty Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

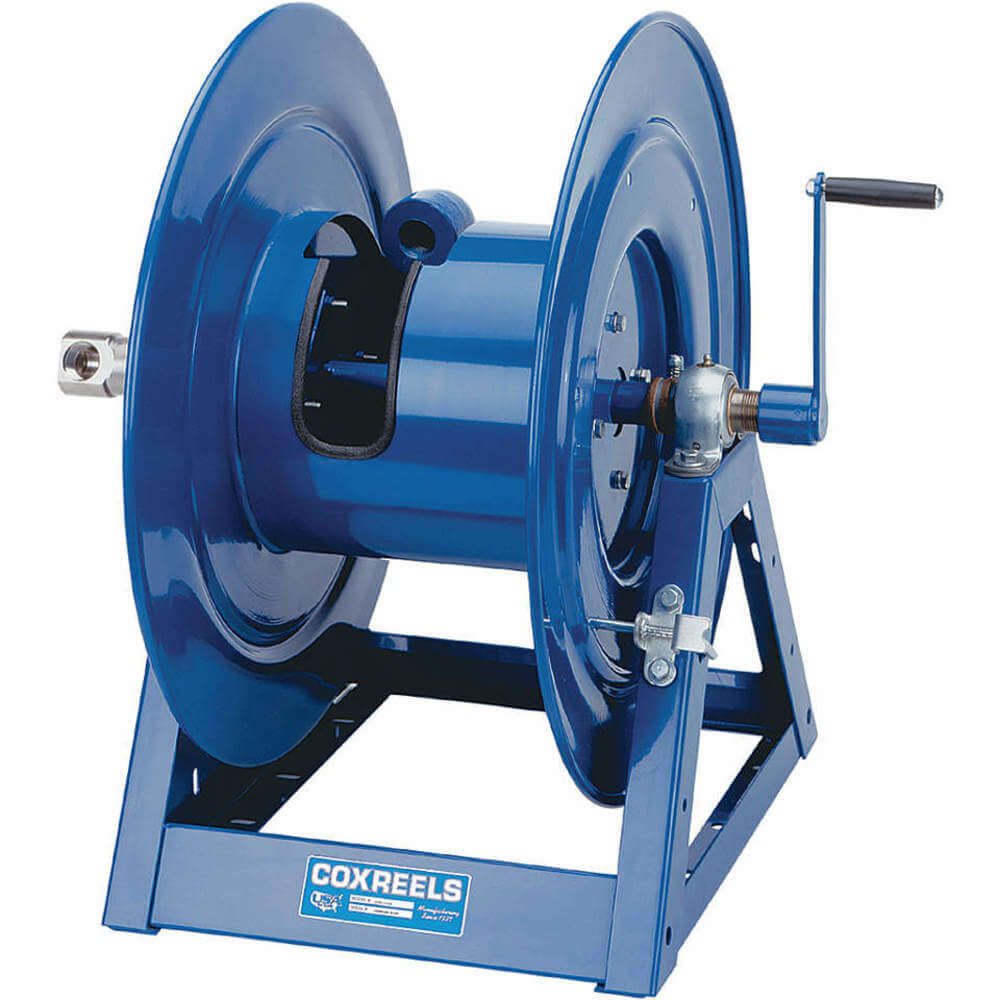

| 1175-6-200 | 200 ft. | 26 1/8" | 24" | 23.31" x 13.75" | 200 ft. | 17" x 20.13" | 36 5/8" | Heavy Duty | €1,275.52 | |
| 1175-6-100-C | - | 26.13" | 24" | 14.81" x 13.75" | 100 ft. | 17" x 20.13" | 28.13" | - | €1,018.10 | |
| 1175-6-125 | 125 ft. | 26 1/8" | 24" | 16.81" x 13.75" | 125 ft. | 19" x 20.13" | 30 1/8" | - | €1,247.01 | |
| 1175-6-125-C | - | 26.13" | 24" | 16.81" x 13.75" | 125 ft. | 19" x 20.13" | 30.13" | - | €1,078.23 | |
| 1175-6-135 | - | 22" | 20" | 23.31" x 13.75" | 135 ft. | 25.5" x 18.13" | 36.63" | - | €798.99 | |
| 1175-6-135-C | - | 22" | 20" | 23.31" x 13.75" | 135 ft. | 25.5" x 18.13" | 36.63" | - | €1,048.67 | |
| 1175-6-150-C | - | 26.13" | 24" | 18.81" x 13.75" | 150 ft. | 21" x 20.13" | 32.13" | - | €1,078.23 |
