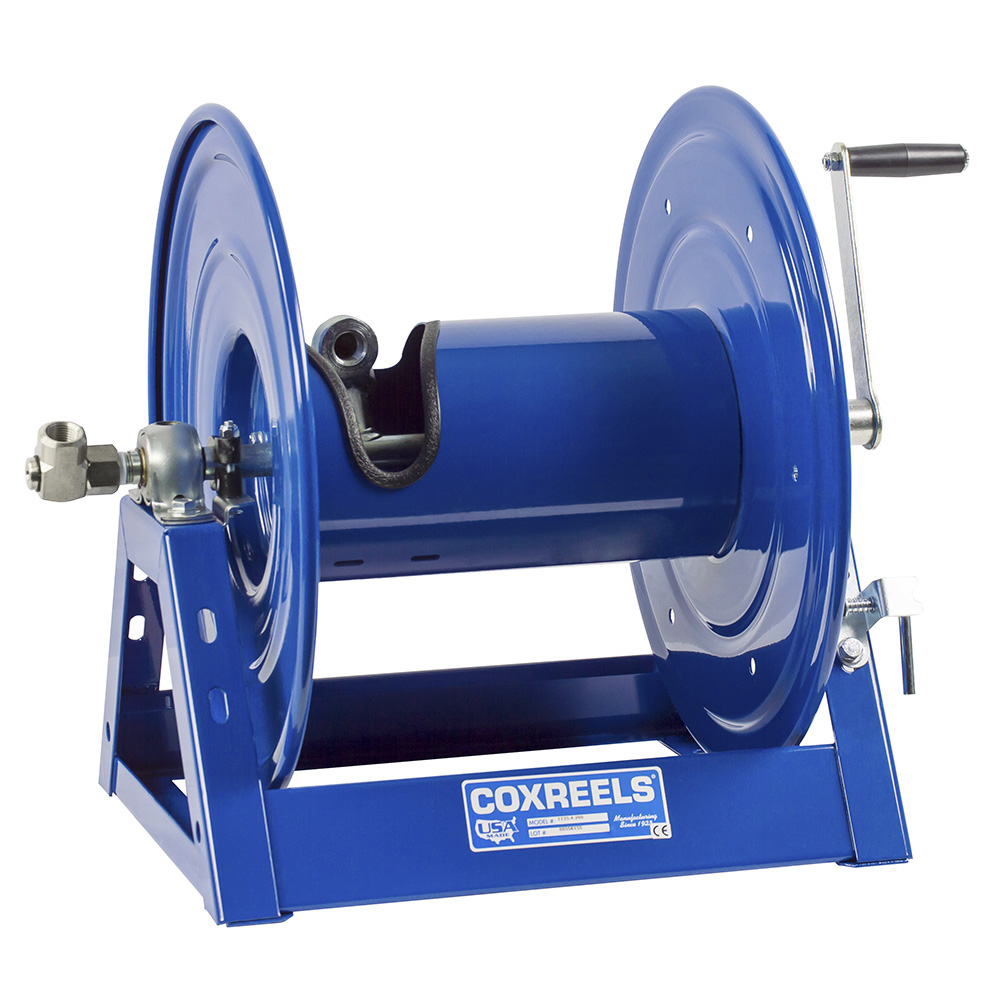

COXREELS 1125P-4-6 Hand Crank Hose Reel, 1/2 Inch Hose Inside Diameter, 100 Feet Hose Capacity | CF2BDQ 29PR99

COXREELS 1125P-4-6 Hand Crank Hose Reel, 1/2 Inch Hose Inside Diameter, 100 Feet Hose Capacity

Item: CF2BDQModel: 1125P-4-6Cross Ref: 29PR99
Check Availability
In Stock

Get it by Tuesday, Dec 23

€1,206.73
10.00% off
€1,086.06 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Hand Crank Hose Reel
Base Motion Type Stationary
Base Size 11.38" x 15.38"
Bearing Type Permanently Lubricated
Color Blue
Drive Type Hand Crank
Duty Rating Heavy Duty
Enclosed Reel No
Fasteners Included No
Features "A" Frame, Cnc Spun Disc, Heavy Duty Steel Construction, Outlet Riser
Finish Powder Coated
For Dual Hose No
Handle Length 3 1/2"
Height 18 5/8"
Hose Capacity 100 ft.
Hose Included No
Hose Inside Dia. 1/2"
Hose Length 100 ft.
Hose Outside Dia. 7/8"
Hose Reel Primary Application Air, Water
Hose Reel Type Wall Mount Hose Reel
Housing Material Steel
Hp Not Rated
Includes Locking Pin
Includes Gooseneck Yes
Includes Leader Hose No
Length 17 5/8"
Max. Pressure 6000 psi
Max. Pressure Rating 6000 psi
Maximum Operating Temperature 250°F
Minimum Operating Temperature -40°F
Mount Base Height 15 3/8"
Mount Base Width 11 3/8"
Mount Hole Diameter 1/2"
Mounting Bench, Floor, Truck, Wall
Mounting Hole Center To Center Height 10"
Mounting Hole Center To Center Width 9 3/8"
Mounting Size 9.44" x 10"
Number Of Mount Holes 6
Number Of Mounting Holes 6
Overall Height 18 5/8"
Overall Length 17 5/8"
Overall Width 11 3/8"
Product Datasheet coxreels-1125p-4-6.pdf
Reel Diameter 6 1/4"
Reel Material Steel
Reel Width 6"
Seal Material Nitrile
Swivel Inlet Gender Female
Swivel Inlet Size 1/2"
Swivel Inlet Thread Size 1/2"
Swivel Inlet Type NPT
Swivel Material Stainless Steel
Swivel Outlet Gender Female
Swivel Outlet Size 1/2"
Swivel Outlet Thread Size 1/2"
Swivel Outlet Type NPT
Weight 36 lbs.
Width 11 3/8"

Shipping Info:

Ship weight (kg) 16.2
Ship height (cm)47.32
Ship length (cm)44.78
Ship width (cm)50.17
Country of OriginUS

Documentation:

Datasheet

Product Variants

ProductModelDrive TypeReel MaterialHose CapacityMax. Operating PressureOverall HeightOverall LengthMounting SizeHose LengthPrice
COXREELS 1125-4-100 Spring Return Hose Reel, 3/8 Inch Size, 75 Feet, 300 Psi Maximum Pressure | CE9FNZ 5FYD3 1125-4-100Hand CrankSteel100 ft.3000 psi18 3/4"17 5/8"9.44" x 10"100 ft.€650.51
COXREELS 1125-5-100 Spring Return Hose Reel, 3/4 Inch Size, 75 Feet, 300 Psi Maximum Pressure | CE9FPK 5FYD6 1125-5-100Hand CrankSteel100 ft.3000 psi18 3/4"17 5/8"15.44" x 10"100 ft.€838.98
COXREELS 1125-4-200 Spring Return Hose Reel, 1/2 Inch Size, 75 Feet, 300 Psi Maximum Pressure | CE9FQA 5FYD4 1125-4-200Hand CrankSteel200 ft.3000 psi18 3/4"17 5/8"15.44" x 10"200 ft.€639.12
COXREELS 112-3-150 Hand Crank Hose Reel, 3/8 Inch Hose Inside Diameter, 150 Feet Hose Capacity | CF2BDC 16X556 112-3-150Hand CrankSteel150 ft.4000 psi13"12"10" x 3"150 ft.€426.09
COXREELS 112-3-150-CM Hand Crank Hose Reel, 3/8 Inch Hose Inside Diameter, 150 Feet Hose Capacity | CF2BDD 16X566 112-3-150-CMHand CrankSteel150 ft.-14 3/4"13 1/8"10.5" x 5.25"150 ft.€462.07
COXREELS 112P-3-8 Hand Crank Hose Reel, 3/8 Inch Hose Inside Diameter, 100 Feet Hose Capacity | CF2BDE 29PT24 112P-3-8Hand CrankSteel100 ft.-13"12"5.5" x 3"100 ft.€743.74
COXREELS SM12-3-100 Hand Crank Hose Reel, 3/8 Inch Hose Inside Diameter, 100 Feet Hose Capacity | CF2BDF 16X560 SM12-3-100Hand CrankSteel--13 1/2"12"7" x 3"100 ft.€470.15
