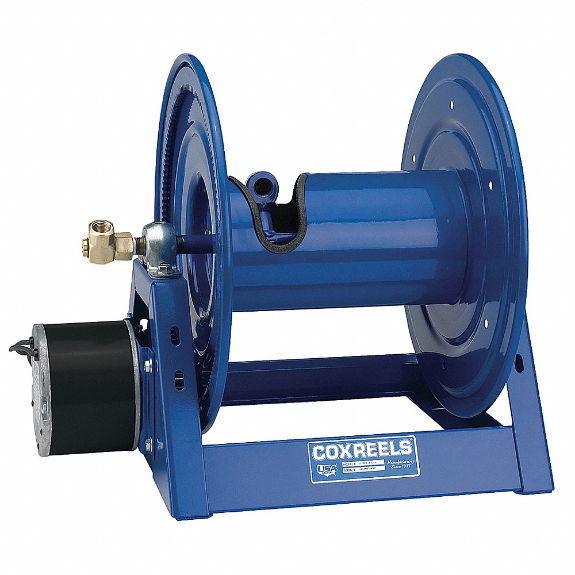

COXREELS 1125-4-200-E Electric Motor Driven Hose Reel, 200 ft., 17 5/8 x 24 x 19 3/4 Inch Size
Get it by Wednesday, Dec 24
10.00% off
€1,320.86 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hose Reel |
| Base Motion Type | Stationary |
| Base Size | 17.38" x 16" |
| Bearing Construction | Permanently Lubricated |
| Drive Type | Motor Driven |
| Enclosed | No |
| Features | Gear Driven Drive System, Heavy Duty Solid Spun Discs With Rolled Edge, Low Profile Risers For No Hump Winding |
| For Dual Hose | No |
| Hazardous Location | No |
| Height | 19 3/4" |
| Hose Capacity | 200 ft. |
| Hose Length | 200 ft. |
| Hose Reel Primary Application | Air, Chemical Fluid Transfer, Oil, Lubrication, Pest Control, Pressure Washer, Spray Operations, Washdown, Water |
| Hose Reel Type | Floor, Vehicle Mount Hose Reel, Wall Mount Hose Reel |
| Hp | 1/3 hp |
| Includes Gooseneck | Yes |
| Includes Hose | No |
| Includes Leader Hose | No |
| Inside Dia. | 1/2" |
| Latch Type | Locking |
| Length | 17 5/8" |
| Max. Operating Pressure | 3000 psi |
| Maximum Operating Temperature | 250°F |
| Minimum Operating Pressure | 0 psi |
| Minimum Operating Temperature | -40°F |
| Motor Type | 1/3 hp 12V Dc Motor |
| Motor Voltage | 12V DC |
| Mount Base Height | 16" |
| Mount Base Width | 17 3/8" |
| Mounting Hole Center To Center Height | 10" |
| Mounting Hole Center To Center Width | 15 3/8" |
| Mounting Size | 15.44" x 10" |
| Outside Dia. | 7/8" |
| Overall Height | 19 3/4" |
| Overall Length | 17 5/8" |
| Overall Width | 24" |
| Reel Color | Blue |
| Reel Diameter | 6 1/4" |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Reel Width | 12" |
| Seal Material | Nitrile |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 1/2" |
| Swivel Inlet Thread Size | 1/2"-14 |
| Swivel Inlet Type | NPT |
| Swivel Material | Brass |
| Swivel Outlet Gender | Female |
| Swivel Outlet Size | 1/2" |
| Swivel Outlet Thread Size | 1/2"-14 |
| Swivel Outlet Type | NPT |
| Vacuum Rating | Not Rated |
| Weight | 52 lbs. |
| Width | 24" |
Shipping Info:
| Ship weight (kg) | 23.4 |
| Ship height (cm) | 50.17 |
| Ship length (cm) | 44.77 |
| Ship width (cm) | 60.96 |
| Country of Origin | US |
Product Variants
| Product | Model | Drive Type | Mounting | Hose Capacity | Mounting Size | Base Size | Hose Length | Overall Height | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1125-5-50-EJ | Spring Return | - | - | 10" | 11.38" x 16" | 50 ft. | 19 1/4" | 17.63" | €1,201.54 | |
 |
1125-4-100-A | Motor Driven | Bench, Floor, Truck, Wall | 100 ft. | 9.44" x 10" | 11.38" x 16" | 100 ft. | 17" | 17 5/8" | €1,537.73 | |
|
1125-4-100-AB | Air Driven | - | - | 9.44" x 10" | 11.38" x 16" | 100 ft. | 18 3/4" | 17.63" | €1,409.44 | |
 |
1125-4-100-E | Motor Driven | - | 100 ft. | 9.44" x 10" | 11.38" x 16" | 100 ft. | 19 3/4" | 17 5/8" | €1,418.39 | |
|
1125-4-100-EA | - | - | - | 9.44" x 10" | 11.38" x 16" | 100 ft. | 19 1/4" | 17.63" | €1,053.77 | |
|
1125-4-100-EB | Motorized | - | - | 9.44" x 10" | 11.38" x 16" | 100 ft. | 19 1/4" | 17.63" | €1,028.29 | |
|
1125-4-100-ED | Motorized | - | - | 9.44" x 10" | 11.38" x 16" | 100 ft. | 19 1/4" | 17.63" | €963.06 |
