COXREELS 112-4-75 Hand Crank Hose Reel, 1/2 Inch Hose Inside Diameter, 75 Feet Hose Capacity
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€393.21 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hand Crank Hose Reel |
| Base Motion Type | Stationary |
| Base Size | 14" x 6" |
| Bearing Construction | EPDM |
| Bearings | EPDM Bearings |
| Color | Blue |
| Drive Type | Hand Crank |
| Duty Rating | Medium Duty |
| Enclosed | No |
| Fasteners Included | No |
| Features | U Shaped Frame Design, Adjustable Tension Brake, Cnc Spun Discs, Heavy Duty Steel Construction, Lightweight |
| Finish | Powder Coated |
| For Dual Hose | No |
| Handle Length | 3 1/2" |
| Height | 13" |
| Hose Capacity | 75 ft. |
| Hose Inside Dia. | 1/2" |
| Hose Length | 75 ft. |
| Hose Outside Dia. | 7/8" |
| Hose Reel Primary Application | Air, Chemical Fluid Transfer, Pest Control, Pressure Washer, Spraying Operation, Washdown, Water |
| Hose Reel Type | Wall Mount Hose Reel |
| Housing Material | Steel |
| Hp | Not Rated |
| Includes Gooseneck | No |
| Includes Hose | No |
| Includes Leader Hose | No |
| Inside Dia. | 1/2" |
| Length | 12" |
| Max. Operating Pressure | 4000 psi |
| Max. Pressure Rating | 4000 psi |
| Maximum Operating Pressure | 4000 psi |
| Maximum Operating Temperature | 225°F |
| Minimum Operating Temperature | -40°F |
| Mount Base Height | 6" |
| Mount Base Width | 14" |
| Mount Hole Diameter | 7/16" |
| Mounting | Bench, Floor, Truck, Wall |
| Mounting Hole Center To Center Height | 3" |
| Mounting Hole Center To Center Width | 10" |
| Mounting Size | 10" x 3" |
| Number Of Mount Holes | 4 |
| Outside Dia. | 7/8" |
| Overall Height | 13" |
| Overall Length | 12" |
| Overall Width | 22 3/4" |
| Reel Color | Blue |
| Reel Diameter | 5 1/2" |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Reel Width | 12 1/2" |
| Seal Material | Nitrile |
| Seal Type | Nitrile |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 1/2" |
| Swivel Inlet Thread Size | 1/2" |
| Swivel Inlet Type | NPT |
| Swivel Material | Brass |
| Swivel Material | Solid Brass |
| Swivel Outlet Gender | Female |
| Swivel Outlet Size | 1/2" |
| Swivel Outlet Thread Size | 1/2" |
| Swivel Outlet Type | NPT |
| Weight | 21 lbs. |
| Width | 22 3/4" |
Shipping Info:
| Ship weight (kg) | 9.45 |
| Ship height (cm) | 33.02 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 57.79 |
| Country of Origin | US |
Product Variants
| Product | Model | Drive Type | Reel Material | Hose Capacity | Max. Operating Pressure | Overall Height | Overall Length | Mounting Size | Hose Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1125-4-100 | Hand Crank | Steel | 100 ft. | 3000 psi | 18 3/4" | 17 5/8" | 9.44" x 10" | 100 ft. | €650.51 | |
 |
1125-5-100 | Hand Crank | Steel | 100 ft. | 3000 psi | 18 3/4" | 17 5/8" | 15.44" x 10" | 100 ft. | €838.98 | |
|
1125-4-200 | Hand Crank | Steel | 200 ft. | 3000 psi | 18 3/4" | 17 5/8" | 15.44" x 10" | 200 ft. | €639.12 | |
|
112-3-150 | Hand Crank | Steel | 150 ft. | 4000 psi | 13" | 12" | 10" x 3" | 150 ft. | €426.09 | |
 |

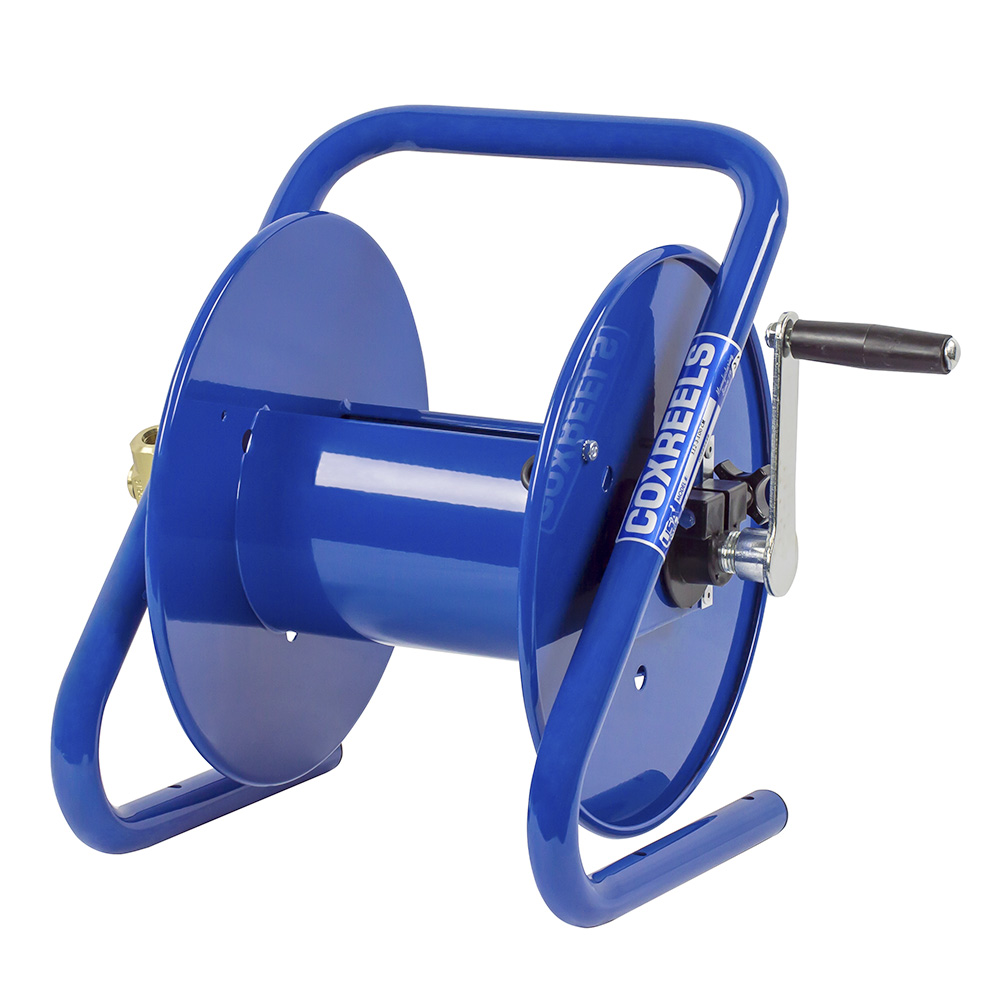

112-3-150-CM | Hand Crank | Steel | 150 ft. | - | 14 3/4" | 13 1/8" | 10.5" x 5.25" | 150 ft. | €462.07 | |
 |

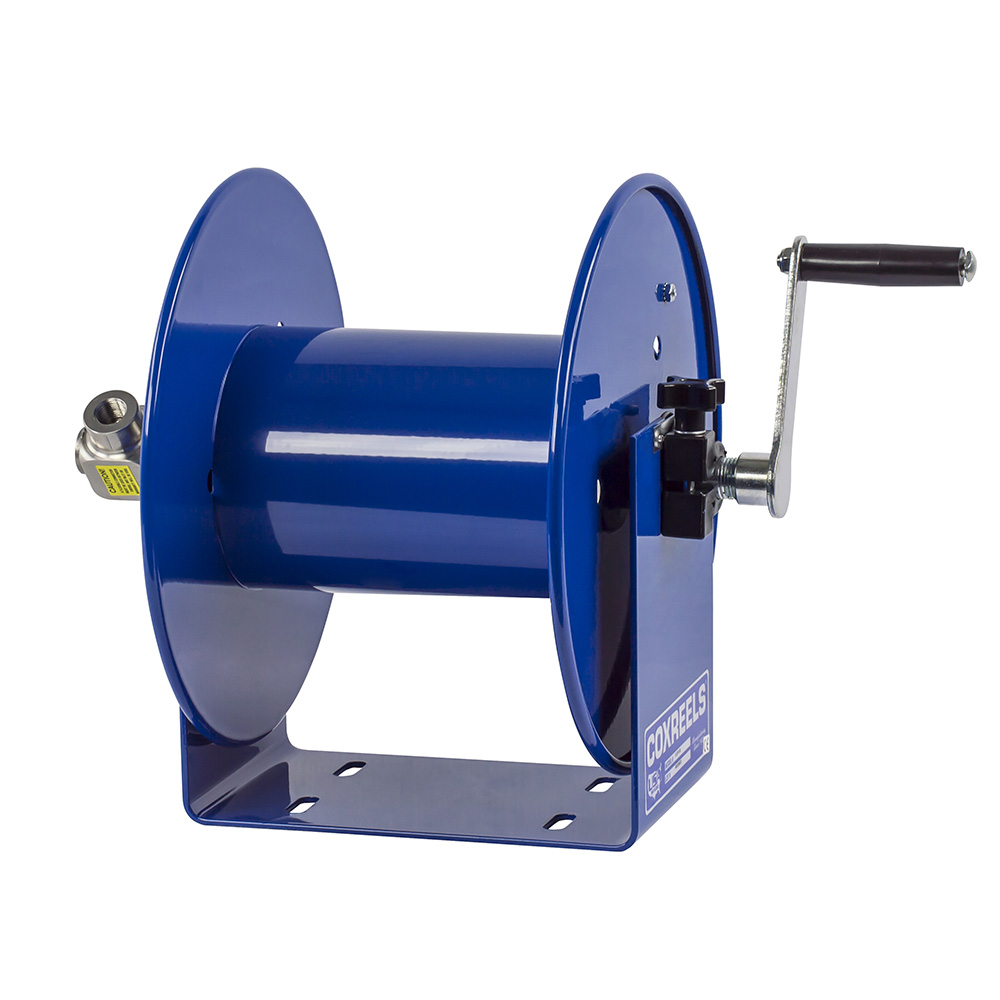

112P-3-8 | Hand Crank | Steel | 100 ft. | - | 13" | 12" | 5.5" x 3" | 100 ft. | €743.74 | |
 |

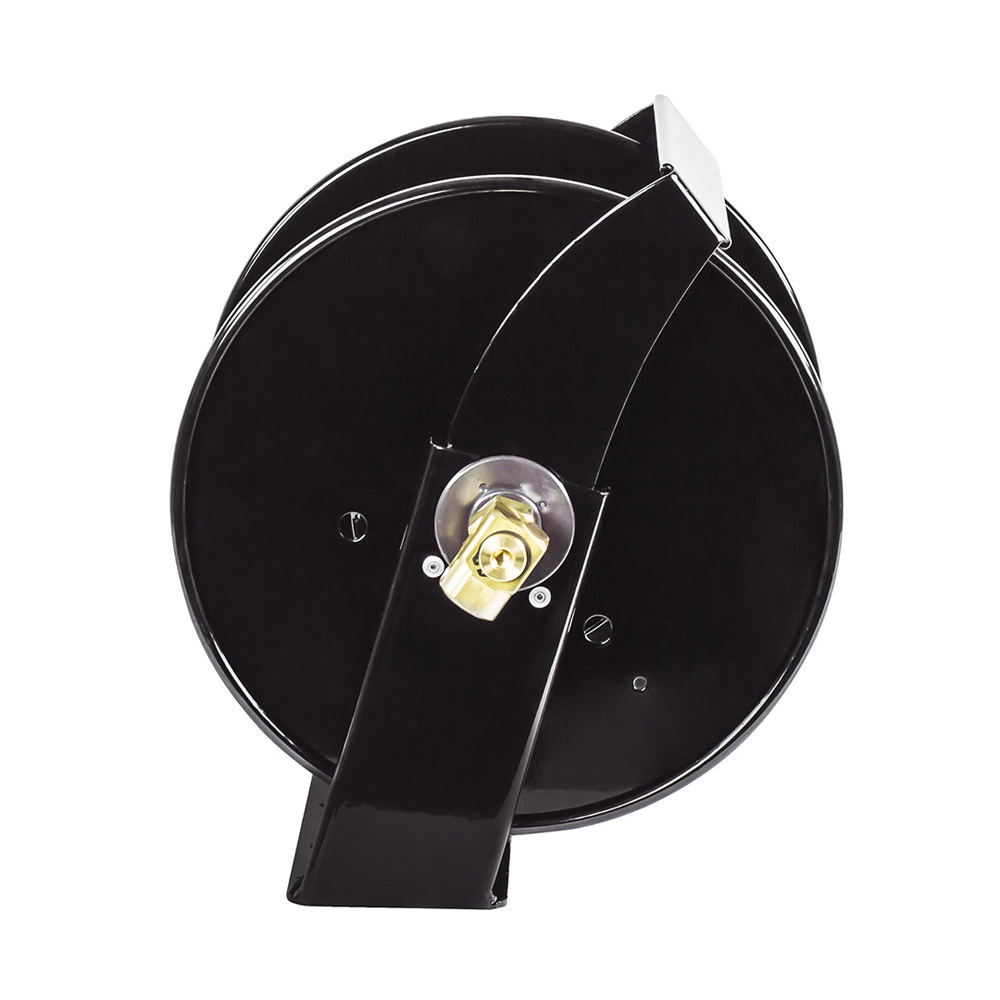

SM12-3-100 | Hand Crank | Steel | - | - | 13 1/2" | 12" | 7" x 3" | 100 ft. | €470.15 |
