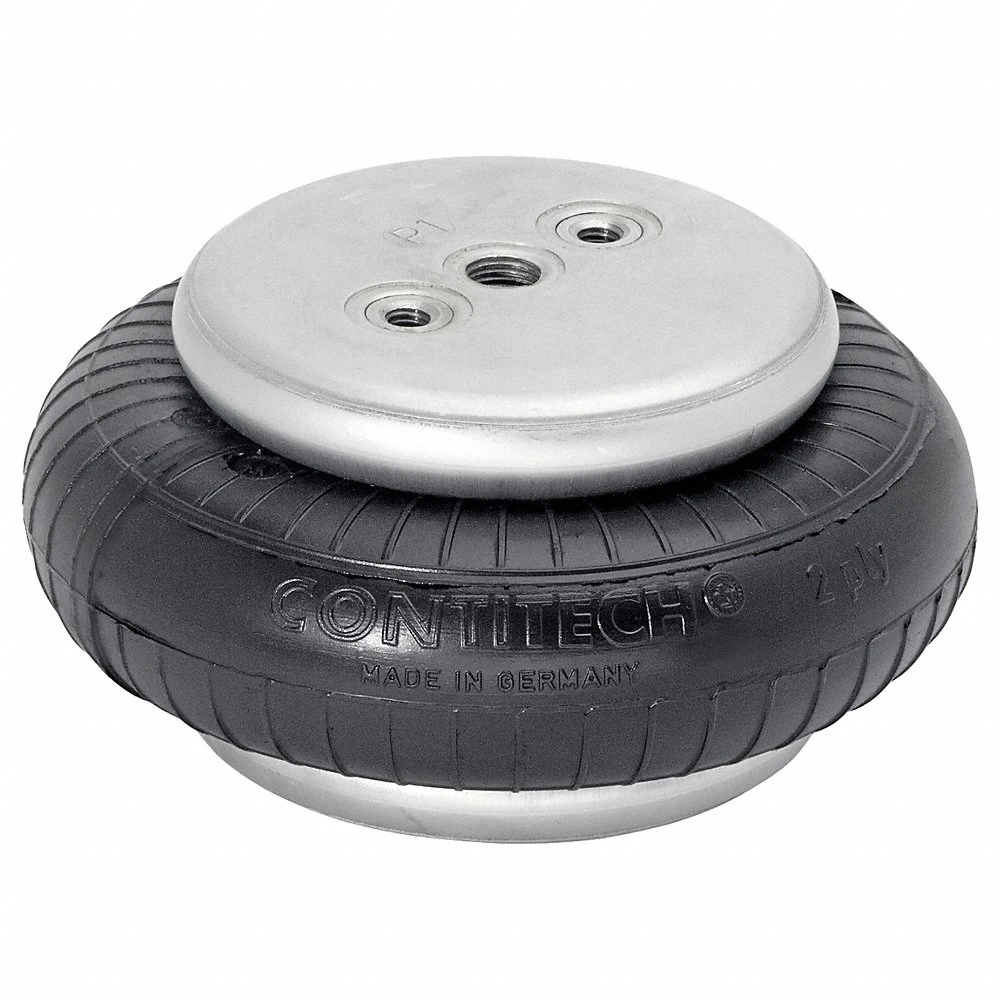

CONTINENTAL FS33014CIG34CA Single Convolution Air Actuator, Natural Rubber, 70 mm Compressed Ht, 151 mm Extended Ht
Item: EA7RFZModel: FS33014CIG34CACross Ref: 817UP6
7 In Stock
Ships within 2 days via
€392.54 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mechanical |
| Air Inlet | 3/4" |
| Air Inlet Location | Center |
| Air Spring Material | Natural Rubber |
| Air Spring Type | Single Convoluted |
| Full Stroke Height | 151 mm |
| Height-compressed | 70 mm |
| Max. Compressed Dia. | 343 mm |
| Max. Dynamic Load Capacity | 4840 lbf. @ 80 psi, 7250 lbf. @ 120 psi, 6070 lbf. @ 100 psi, 3610 lbf. @ 60 psi, 2400 lbf. @ 40 psi |
| Pressure | 0 psi to 120 psi |
| System Of Measurement | Metric |
| Temp. | -76°F to +158°F |
Shipping Info:
| Ship weight (kg) | 3.87 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 39.37 |
| Ship width (cm) | 26.67 |
| Country of Origin | MX |
