CONGRESS DRIVES VP450X050 V-belt Pulley 1/2 Variable Pitch 4.5 Outer Diameter Zamak 3
Item: AC9XEPModel: VP450X050Cross Ref: 54XM96
7 In Stock
Ships within 2 days via
10.00% off
€75.41 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Variable Pitch V-Belt Pulley |
| 3l Pitch Diameter (maximum) | 3.8" |
| 3l Pitch Diameter (minimum) | 3" |
| 4l Pitch Diameter (maximum) | 4.3" |
| 4l Pitch Diameter (minimum) | 3.3" |
| 4l, A, Or Ax Belt Pitch Dia. | 3.3" to 4.3" |
| 4la Or A Belt Pitch Dia. | 3.3" to 4.3" |
| 5l Pitch Diameter (maximum) | 4 1/2" |
| 5l Pitch Diameter (minimum) | 3.7" |
| 5l, B, Or Bx Belt Pitch Dia. | 3.7" to 4.5" |
| A Pitch Diameter (maximum) | 4.3" |
| A Pitch Diameter (minimum) | 3.3" |
| Ax Pitch Diameter (maximum) | 4.3" |
| Ax Pitch Diameter (minimum) | 3.3" |
| B Pitch Diameter (maximum) | 4 1/2" |
| B Pitch Diameter (minimum) | 3.7" |
| Bore Dia. | 1/2" |
| Bore Type | Fixed Bore |
| Bushing Required | None |
| Bx Pitch Diameter (maximum) | 4.5" |
| Bx Pitch Diameter (minimum) | 3.7" |
| Construction | Solid |
| Fits Shaft Dia. | 1/2" |
| For Belt Section | 3L, 4L, 5L, A, B |
| For V-belt Type | Classical |
| Includes | Set Screw |
| Keyway | No |
| Length Through Bore | 1 25/32" |
| Material | Zinc |
| Material Fabrication | Cast |
| Material Grade | Grade Zamak 3 |
| Max. Pitch Dia. | 3.8" (3L), 4.3" (4L), 4.5" (5L) |
| Maximum Face Width | 7/8" |
| Minimum Face Width | 0.469" |
| Minimum Pitch Diameter | 3" (3L), 3.3" (4L), 3.7" (5L) |
| No. Of Grooves | 1 |
| Outside Dia. | 4 1/2" |
| Outside Diameter | 4.5" |
| Product Datasheet | congress-drives-vp450x050.pdf |
| Pulley Construction | Plain |
| Set Screw Included | Yes |
| Set Screw Size | 5/16" |
| Weight | 1.83 lbs. |
Shipping Info:
| Ship weight (kg) | 1.01 |
| Ship height (cm) | 5.33 |
| Ship length (cm) | 13.21 |
| Ship width (cm) | 13.21 |
| HS code | 8483509040 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | 4l, A, Or Ax Belt Pitch Dia. | 5l, B, Or Bx Belt Pitch Dia. | 4la Or A Belt Pitch Dia. | Bore Type | Material | For Belt Section | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

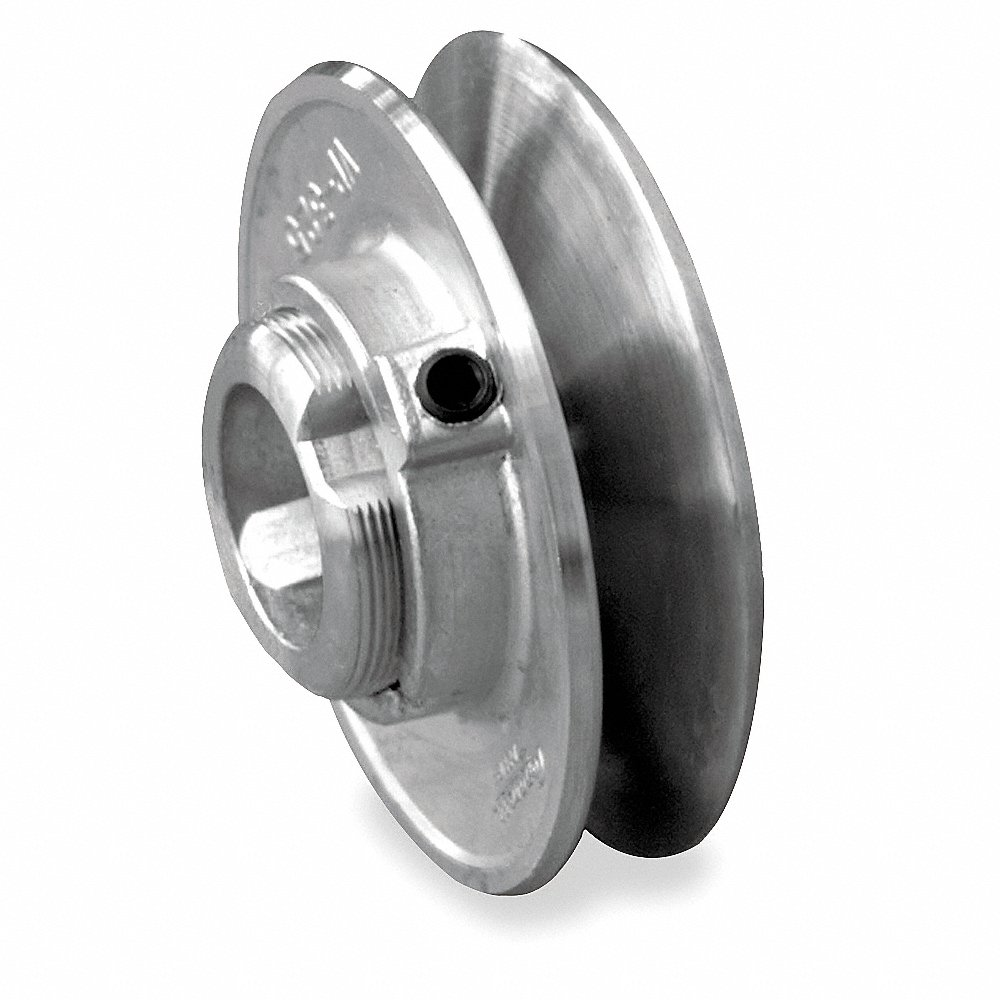

VP400X062KW | 4" | 5/8" | 2.9" to 3.9" | 3.2" to 4" | 2.9" to 3.9" | Fixed Bore | - | - | €66.66 |
