FREE delivery on orders over €150

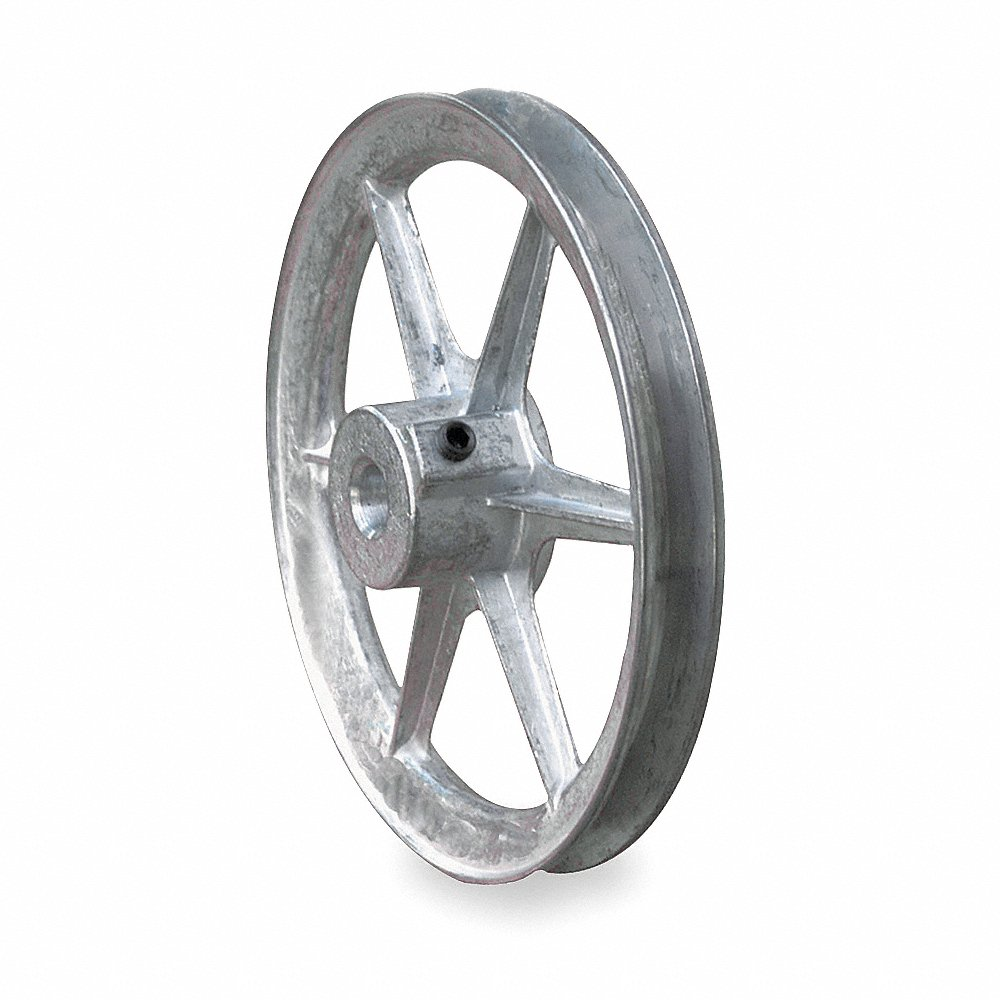

CONGRESS DRIVES CA0700X050 V-belt Pulley 1/2 Fixed 7 Outer Diameter Zamak 3
Item: AD2ZNAModel: CA0700X050Cross Ref: 54XN06
7 In Stock
Ships within 2 days via
10.00% off
€42.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Pulley |
| 3l Belt Pitch Dia. | 6.55" |
| 4l Pitch Diameter | 6.75" |
| 4l, A, Or Ax Belt Pitch Dia. | 6.85" |
| 4la Or A Belt Pitch Dia. | 6.85" |
| A Pitch Diameter | 6.75" |
| Bore Dia. | 1/2" |
| Bore Type | Fixed Bore |
| Bushing Required | None |
| Construction | Spoked |
| Face Width | 0.69" |
| Fits Shaft Dia. | 1/2" |
| For Belt Section | 4L, A |
| For V-belt Type | Classical |
| Hub Projection | 0.594" |
| Hub Type | One Side |
| Includes | Set Screw |
| Keyway | No |
| Length Through Bore | 1 3/32" |
| Material | Zinc |
| Material Fabrication | Cast |
| Material Grade | Grade Zamak 3 |
| No. Of Grooves | 1 |
| Outside Diameter | 7" |
| Pitch Diameter | 6 3/4" |
| Product Datasheet | congress-drives-ca0700x050.pdf |
| Pulley Construction | Spoked |
| Resistance Properties | Corrosion Resistant, Impact Resistant |
| Set Screw Included | Yes |
| Set Screw Size | 5/16" |
| Weight | 0.99 lbs. |
Shipping Info:
| Ship weight (kg) | 0.54 |
| Ship height (cm) | 3.56 |
| Ship length (cm) | 21.08 |
| Ship width (cm) | 20.83 |
| HS code | 8483509040 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | 4l, A, Or Ax Belt Pitch Dia. | Bore Dia. | Outside Dia. | 4la Or A Belt Pitch Dia. | Construction | Fits Shaft Dia. | Face Width | Keyway Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CA0275X050 | 2.6" | 1/2" | 2 3/4" | 2.6" | Solid | 1/2" | 0.78" | - | €24.03 | |
| CA1100X100KW | 10.85" | 1" | 11" | 10.85" | Spoked | 1" | 0.69" | 1/4" x 1/8" | €80.13 | |
| CA1000X087KW | 9.85" | 7/8" | 10" | 9.85" | Spoked | 7/8" | 0.69" | 0.187" x 0.093" | €83.05 | |
| CA1200X087KW | 11.85" | 7/8" | - | 11.85" | Spoked | 7/8" | 0.69" | 0.187" x 0.093" | €103.45 | |
| CA1400X087KW | 13.85" | 7/8" | 14" | 13.85" | Spoked | 7/8" | 0.69" | 0.187" x 0.093" | €121.67 | |
| CA0300X087KW | 2.85" | 7/8" | 3" | 2.85" | Solid | - | 0.63" | 0.187" x 0.093" | €22.22 | |
| CA0350X087KW | 3.35" | 7/8" | 3 1/2" | 3.35" | Solid | - | 0.63" | 0.187" x 0.093" | €26.08 |
