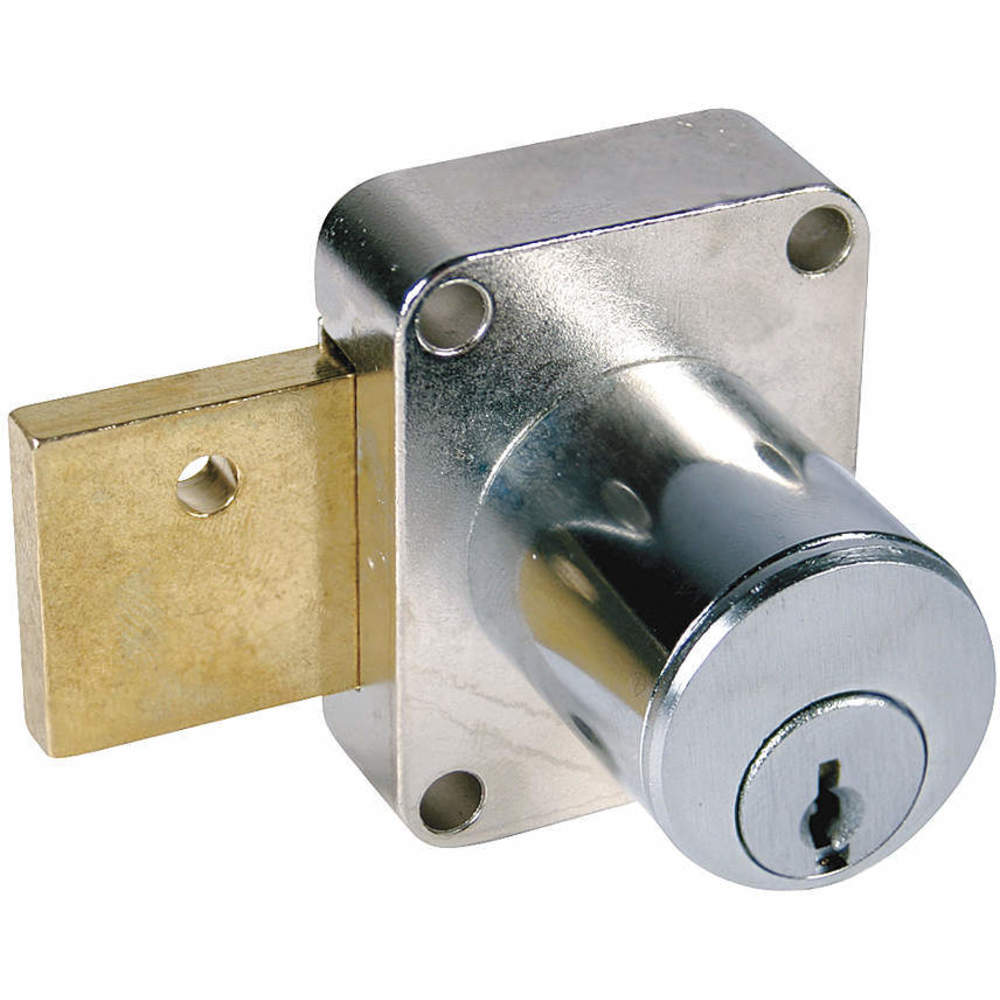

COMPX NATIONAL C8173-MKKD-26D Pin Tumbler Cam Door Lock Dull Chrome Master Key Keyed Different
Item: AD9PNPModel: C8173-MKKD-26DCross Ref: 4TYA2
7 In Stock
Ships within 2 days via
10.00% off
€61.66 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Door Deadbolt |
| Body Color | Silver |
| Body Height | 1 5/8" |
| Body Thickness | 1 3/8" |
| Body Width | 1 15/64" |
| Cabinet Lock Type | Removable Core Plug Cabinet And Drawer Dead Bolt Locks |
| Cam Length | 3/4" |
| Cam Length (in.) | 3/4 |
| Cam Width | 0.875" |
| Cam Width (in.) | 7/8 |
| Cylinder Dia. | 57/64" |
| Distance Between Mounting Holes | 15/16" |
| Finish | Dull Chrome |
| For Door Thickness | 7/8" |
| For Material | Wood |
| For Material Thickness | 7/8" |
| Head Dia. | 7/8" |
| Includes | Strike |
| Includes Interchangeable Core Lock Core | No |
| Includes Mounting Hardware | Yes |
| Key Number | MKKD |
| Key Type | Different, Master |
| Latch Bolt Projection | 3/4" |
| Latch Bolt Shape | Rectangle |
| Lock Body Color | Silver |
| Lock Body Dimensions | 1 5/8" x 1 15/64" x 1 3/8" |
| Lock Body Finish | Chrome Plated |
| Lock Body Material | Steel |
| Lock Body Shape | Rectangular |
| Lock Orientation | Horizontal Left |
| Lock Type | Dead Bolt |
| Max. Latching Distance | 1/4" |
| Max. Latching Distance (in.) | 1/4 |
| Mounting Hardware | Included |
| Mounting Hardware Required | Yes |
| Mounting Hole Dia. | 29/32" |
| Mounting Hole Size | 57/64" |
| Mounting Style | Through Hole |
| Number Of Mounting Holes | 5 |
| Number Of Pins | 4 |
| Opens With | Key |
| Rear Projection | 3/4" |
| Removable Plug | Yes |
| Security Level | General Security |
| Series | C8173 Series |
| Standards | Ansi/Bhma Grade 2 |
| Style | Cabinet |
| Throw Length | 3/4" |
| Type | Small Format Pin Tumbler |
| Unlock Turn Direction | CW |
| Unlock Turn Direction | Left |
| Unlocking Radius | Half Turn |
| Unlocking Radius (deg.) | 360 |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 4.57 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 8.89 |
| HS code | 8301406030 |
| Country of Origin | US |
Product Variants
| Model | Lock Body Finish | Finish | Key Number | Key Type | Body Color | For Material Thickness | Mounting Hole Dia. | For Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| C8173-KD-26D | Chrome Plated | Dull Chrome | KD | Different | Silver | 7/8" | 29/32" | Wood | €63.53 | |
| C8173-KD-4 | Brass | Satin Brass | KD | Different | Gold | 7/8" | 29/32" | Wood | €63.53 | |
| C8173-915-4 | Brass | Satin Brass | 915 | Alike | Gold | 7/8" | 29/32" | Wood | €63.53 |
