COMPX NATIONAL C8053-C415A-3 Disc Tumbler Cam Lock Brass Key C415a
Item: AE3PKCModel: C8053-C415A-3Cross Ref: 5EKV7
7 In Stock
Ships within 2 days via
10.00% off
€17.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Disc Tumbler Cam Lock |
| Body Color | Silver |
| Cam Length (in.) | 1 1/8, 1 1/2 |
| Cam Lock Type | Keyed |
| Cam Type | Offset, Straight |
| Cam Width | 5/8" |
| Cam Width (in.) | 5/8 |
| Cylinder Length | 1 3/16" |
| Finish | Bright Brass |
| For Door Thickness | 7/8" |
| For Material | Metal, Wood |
| For Material Thickness | 7/8" |
| Head Dia. | 7/8" |
| Includes | Two Cams, Hardware |
| Includes Mounting Hardware | Yes |
| Interchangeable Core | No |
| Key Code | C415A |
| Key Number | C415A |
| Key Retaining | No |
| Key Type | Alike |
| Keyed Cam Lock Type | Disc Tumbler Keyed Cam Lock |
| Keying | Keyed Alike |
| Keyway Type | National D8785 |
| Latching Distance | 1 3/16" |
| Lock Body Finish | Brass |
| Lock Body Material | Zinc Die Cast |
| Max. Latching Distance (in.) | 1-3/16, 17/32 |
| Mounting Hardware Required | Yes |
| Mounting Hole Dia. | 3/4" |
| Mounting Hole Size | 3/4" |
| Number Of Keys | 2 |
| Number Of Locks In Pack | 25 |
| Number Of Pins | 5 |
| Offset Cam Length | 1 1/8" |
| Offset Cam Width | 5/8" |
| Opens With | Key |
| Security Level | General Security |
| Straight Cam Length | 1 1/2" |
| Straight Cam Width | 5/8" |
| Unlock Turn Direction | CW |
| Unlock Turn Direction | Either |
| Unlocking Radius | Quarter Turn |
| Unlocking Radius (deg.) | 90 |
| Weather Resistant | No |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 3.81 |
| HS code | 8301300060 |
| Country of Origin | US |
Product Variants
| Product | Model | Keying | For Material Thickness | Mounting Hole Dia. | For Material | Unlock Turn Direction | Lock Body Finish | Latching Distance | Cylinder Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

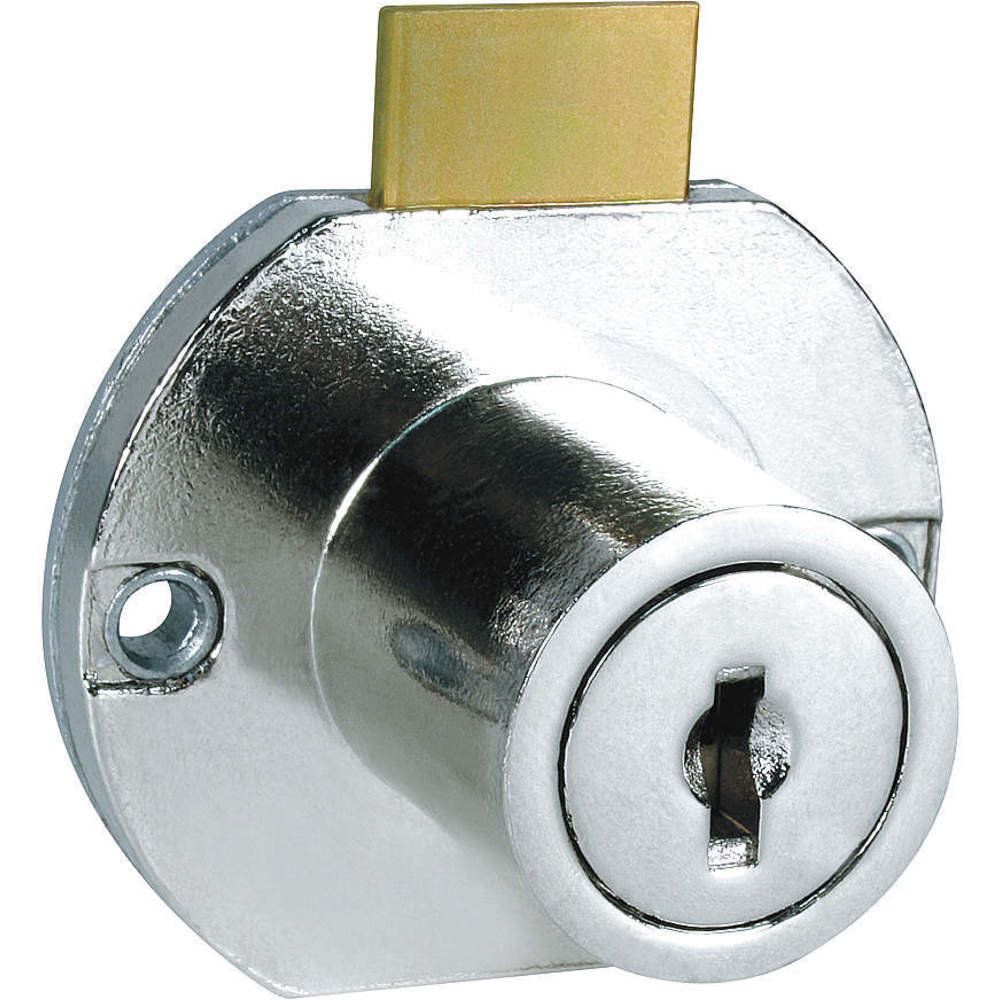

C8703-MKKD-14A | Master Keyed | 15/16" | 7/8" | Wood | CW | Chrome Plated | - | - | €26.64 | |
 |

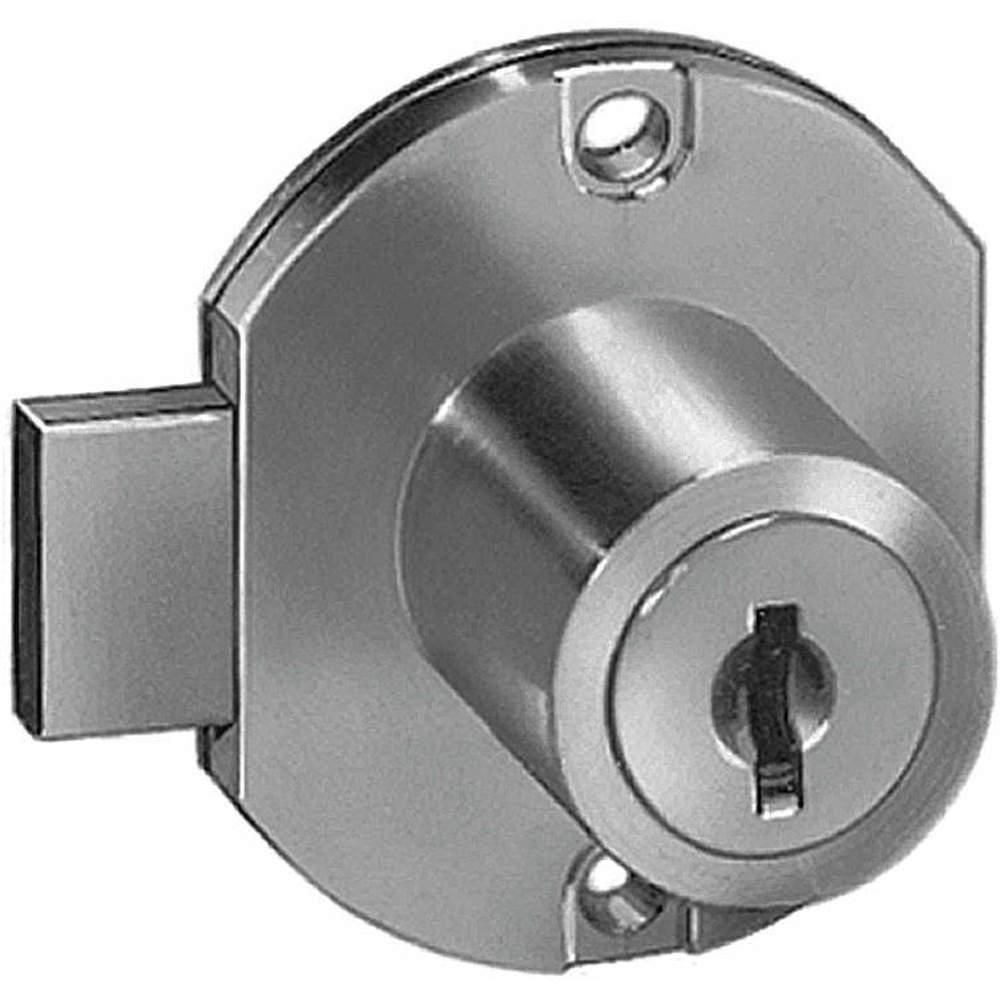

C8704-KD-14A | Keyed Different | 15/16" | 7/8" | Wood | CW | Chrome Plated | - | - | €21.51 | |
|
C8704-MKKD-14A | Master Keyed | 15/16" | 7/8" | Wood | CW | Chrome Plated | - | - | €28.27 | |
|
C8704-KD-3 | Keyed Different | 15/16" | 7/8" | Wood | CW | Brass | - | - | €22.19 | |
|
C8704-MKKD-3 | Master Keyed | 15/16" | 7/8" | Wood | CW | Brass | - | - | €28.27 | |
 |

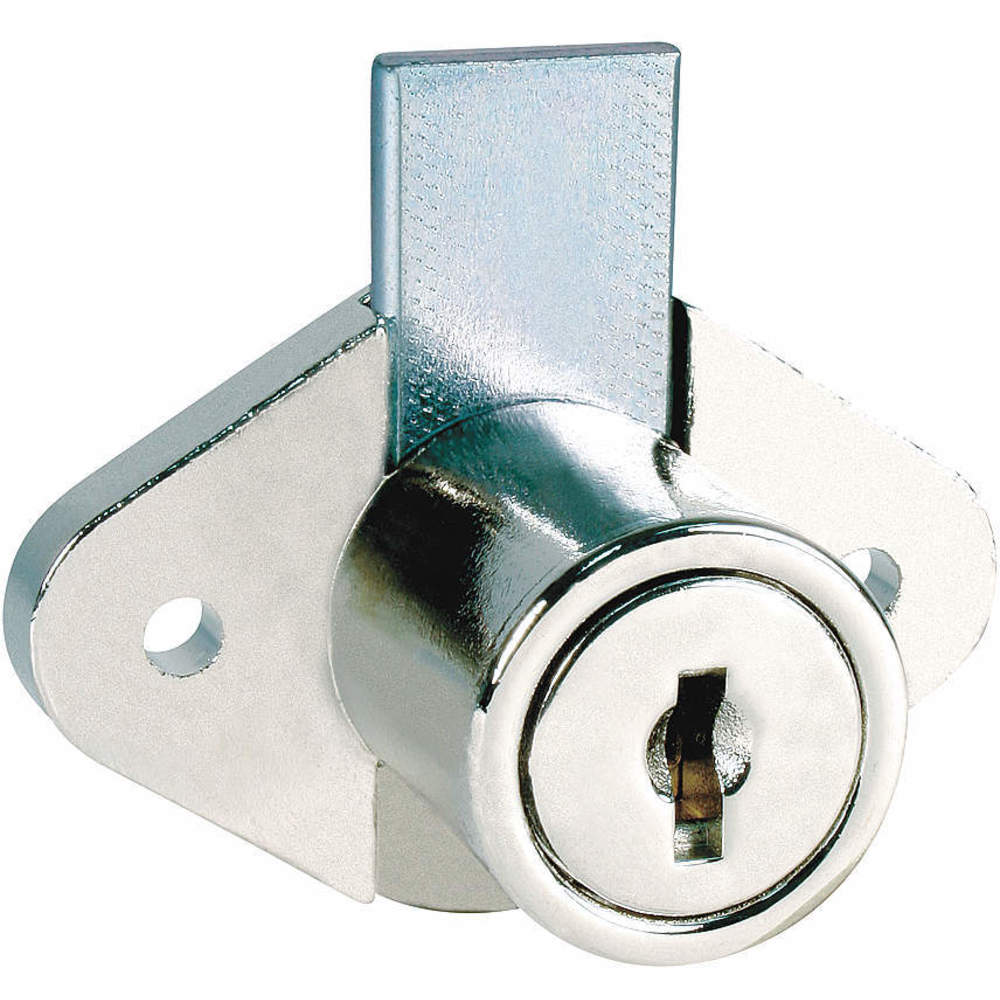

C8803-KD-14A | Keyed Different | 15/16" | 7/8" | Wood | CW | Chrome Plated | - | - | €19.49 | |
|
C8803-KD-3 | Keyed Different | 15/16" | 7/8" | Wood | CW | Brass | - | - | €20.11 |
