COLSON 2.04256.55 BRK5 Standard Plate Caster, 4 Inch Dia, 5 1/8 Inch Height, Swivel
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€65.53 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Application | Store Fixtures, Stoage Equipment, Utility Carts, Institutional Equipment, Office Equipment, Food Service, Material Handling Equipment, Hospitality Carts |
| Brake Type | Total Lock Brake |
| Caster Brake Type | Total Lock Brake |
| Caster Frame Material | Steel |
| Caster Material | Steel |
| Caster Mounting Type | Plate |
| Caster Sub-type | Swivel |
| Core Color | Black |
| Frame Finish | Zinc Plated |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 1 3/4" x 2 13/16" |
| Load Rating | 275 lbs. |
| Load Rating Range | 0 lbs. to 299 lbs. |
| Mounting Bolt Dia. | 5/16" |
| Mounting Height | 5 1/8" |
| Mounting Plate Bolt Hole Pattern | C |
| Mounting Plate Size | 2 1/2" x 3 5/8" |
| Mounting Plate Size & Bolt Hole Pattern | 2 1/2" X 3 5/8" ( C ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -45°F to +180°F |
| Outside Bolt Hole Spacing | 1 3/4" x 3 13/16" |
| Swivel Lock Type | Total Lock |
| Swivel Raceway Type | Double Ball |
| Swivel Radius | 4 5/8" |
| Tread Material, Wheel Material | Polyolefin |
| Tread Shape | Standard |
| Wheel Bearing Type | Ball |
| Wheel Core Material | Polyolefin |
| Wheel Core Type | Solid |
| Wheel Diameter | 4" |
| Wheel Width | 1 1/4" |
| Wheel/tread Hardness | 70 Shore D |
| Wheel/tread Hardness Rating | Hard |
Shipping Info:
| Ship weight (kg) | 0.95 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Caster Sub-type | Outside Bolt Hole Spacing | Load Rating | Mounting Height | Mounting Plate Bolt Hole Pattern | Wheel Bearing Type | Caster Brake Type | Frame Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

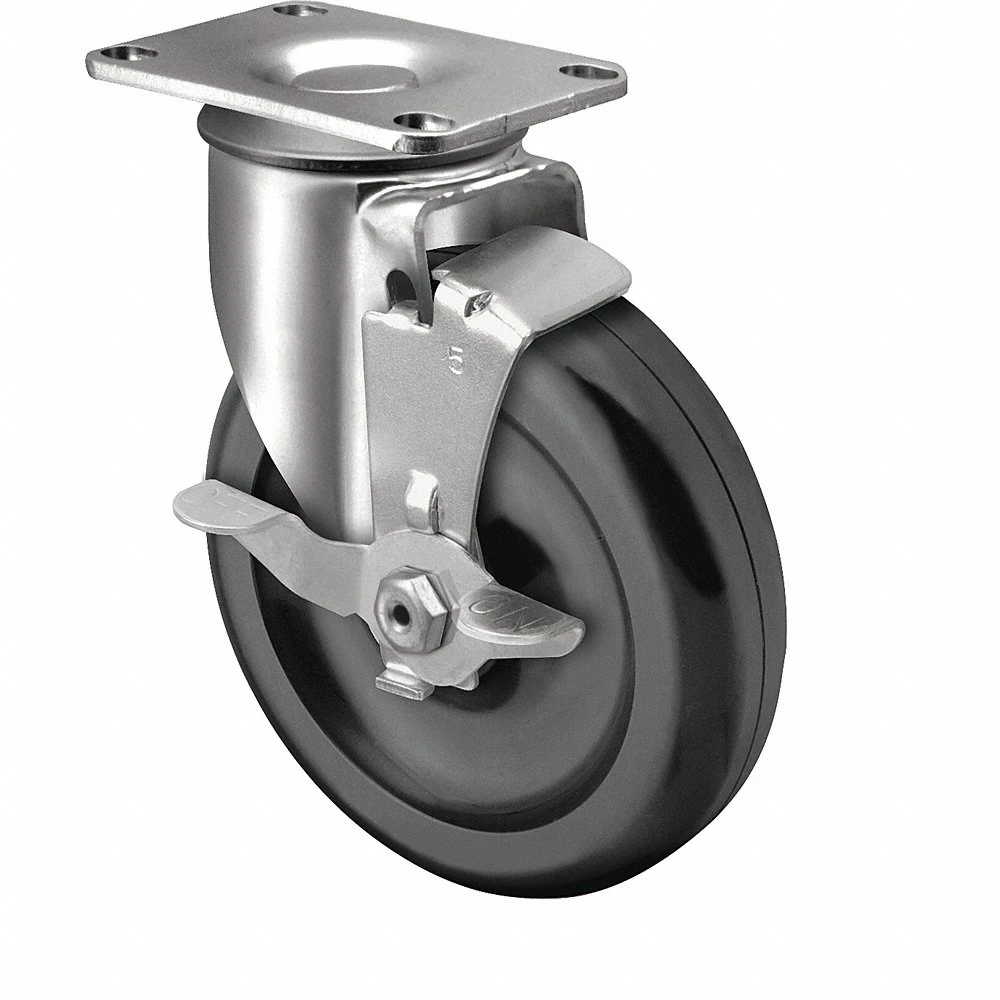

2.03256.55 BRK1 | Swivel | 1 3/4" x 3 13/16" | 230 lbs. | 4 11/16" | C | Ball | Side Pedal Brake | Zinc Plated | €76.23 | |
 |
2.03256.95 BRK5 | Swivel | 1 3/4" x 3 13/16" | 250 lbs. | 4 11/16" | C | Ball | Total Lock Brake | Zinc Plated | €67.59 | |
 |
2.03408.944 | Rigid | 1 3/4" x 3 13/16" | 250 lbs. | 4 11/16" | C | Delrin | No Brake Included | Zinc Plated | €105.34 | |
 |
2.03208.95 | Rigid | 1 3/4" x 3 13/16" | 250 lbs. | 4 11/16" | C | Ball | - | Zinc Plated | €30.71 | |
 |
2.03408.544 | Rigid | 1 3/4" x 3 13/16" | 250 lbs. | 4 11/16" | C | Ball | No Brake Included | Zinc Plated | €93.08 | |
 |
2.03208.445 | Rigid | 1 3/4" x 3 13/16" | 250 lbs. | 4 11/16" | C | Ball | No Brake Included | Zinc Plated | €31.47 | |
 |
2.03456.444 BRK4 | Swivel | 1 3/4" x 3 13/16" | 250 lbs. | 4 11/16" | C | Ball | Side Pedal Brake | Zinc Plated | €251.81 |
