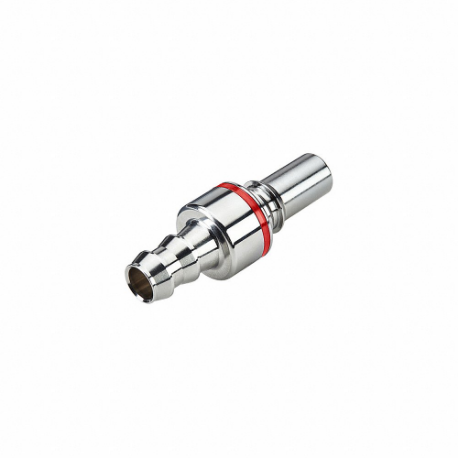

COLDER PRODUCTS COMPANY LQ6D22006LRED Quick Disconnect, Chrome Ca360 Brass, 3/8 Inch Size, Insert x Barbed, Shut-Off
Item: CR2QNLModel: LQ6D22006LREDCross Ref: 788CH6
7 In Stock
Ships within 2 days via
5.00% off
€187.45 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Quick Disconnect |
| Application | Dielectric Coolants, Glycol, Water Coolants |
| Bag Qty | 10 |
| Body Type | Inserts |
| Color | Metallic With Warm Red |
| Finish | Chrome |
| Finish, Coating | Chrome |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Insert |
| Fitting Side B Connection Type | Barbed |
| Fitting Side B Tube Inside Dia. | 3/8" |
| Flow Control Type | Shut Off |
| Grade | Grade 302 |
| Material | Brass |
| Material Grade | Ca360 |
| Max. Operating Pressure | 120 psi |
| Max. Operating Temp. | 240°F |
| Mfr. Series | EVERIS LQ6 |
| Min. Operating Temp. | 0°F |
| Mounting Type | In Line |
| Overall Length | 2 13/16" |
| Pressure | 0 psi to 120 psi |
| Seal Options | EPDM |
| Specific Fitting Shape | Straight Insert |
| Spillage | Greater than 0.025 cc Per Disconnect at 0 psi And Greater than 0.055 cc Per Disconnect Rated at 120 psi, Inclusion Greater than 0.025 cc Per Connect |
| Sub-brand | Cpc |
| Temp. | 0°F to 240°F |
| Valve Options | Valved |
| Valve Spring Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Overall Length | Color | Grade | Fitting Side B Connection Type | Hex Size | Fitting Side B Pipe Size | Flow Control Type | Max. Operating Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LQ6D47008RED | 2 1/16" | Metallic With Warm Red | Grade CA360 | BSPP | 26 mm | 1/2" | Shut Off | 120 psi | €174.47 | |
 |
LQ6D47008BLU | 2 1/16" | Metallic With Cool Blue | Grade CA360 | BSPP | 26 mm | 1/2" | Shut Off | 120 psi | €174.47 | |
 |
LQ6D46008BLU | 1 31/32" | Metallic With Cool Blue | Grade 302 | Morb | 7/8" | 1/2" | Shut Off | 120 psi | €166.59 | |
 |
LQ6D46008RED | 1 31/32" | Metallic With Warm Red | Grade 302 | Morb | 7/8" | 1/2" | Shut Off | 120 psi | €166.59 | |
 |
LQ6D22008RED | 2 9/16" | Metallic With Warm Red | Grade 302 | Barbed | - | - | Shut Off | 120 psi | €200.05 | |
 |
LQ6D22008LRED | 2 29/32" | Metallic With Warm Red | Grade 302 | - | - | - | Shut Off | 120 psi | €200.05 | |
 |
LQ4D47004RED | 2 1/8" | Metallic With Warm Red | Grade CA360 | BSPP | 20 mm | 1/4" | Shut Off | 120 psi | €148.77 |
