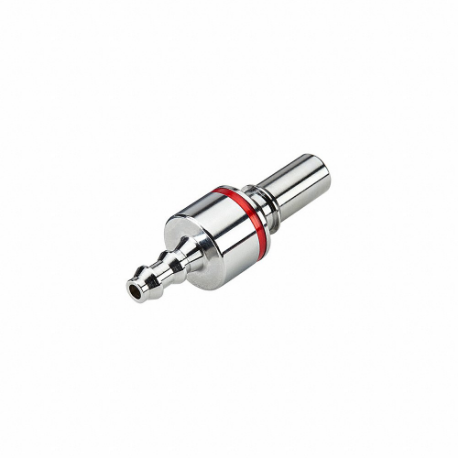

COLDER PRODUCTS COMPANY LQ4D22004LRED Quick Disconnect, 1/4 Inch Size, Insert x Barbed, Shut-Off
Item: CR2QLVModel: LQ4D22004LREDCross Ref: 788CD4
7 In Stock
Ships within 2 days via
5.00% off
€145.50 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Quick Disconnect |
| Application | Dielectric Coolants, Glycol, Water Coolants |
| Bag Qty | 10 |
| Body Type | Inserts |
| Color | Metallic With Warm Red |
| Finish | Chrome |
| Finish, Coating | Chrome |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Insert |
| Fitting Side B Connection Type | Barbed |
| Fitting Side B Tube Inside Dia. | 1/4" |
| Flow Control Type | Shut Off |
| Grade | Grade CA360 |
| Material Grade | Ca360 |
| Max. Operating Pressure | 120 psi |
| Max. Operating Temp. | 240°F |
| Mfr. Series | EVERIS LQ4 |
| Min. Operating Temp. | 0°F |
| Mounting Type | In Line |
| Overall Length | 2 7/16" |
| Pressure | 0 psi to 120 psi |
| Seal Options | EPDM |
| Specific Fitting Shape | Straight Insert |
| Spillage | Greater than 0.025 cc Per Disconnect Rated at 0 psi, Greater than 0.055 cc Per Disconnect Rated at 120 psi, Greater than 0.025 cc Per Connect |
| Sub-brand | Cpc |
| Temp. | 0°F to 240°F |
| Valve Options | Valved |
| Valve Spring Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Color | Mounting Type | Grade | Bag Qty | Mfr. Series | Fitting Side B Connection Type | Hex Size | Fitting Side B Pipe Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LQ6D47008RED | Metallic With Warm Red | Thread | Grade CA360 | 10 | EVERIS LQ6 | BSPP | 26 mm | 1/2" | €174.47 | |
 |
LQ6D47008BLU | Metallic With Cool Blue | Thread | Grade CA360 | 10 | EVERIS LQ6 | BSPP | 26 mm | 1/2" | €174.47 | |
 |
LQ6D46008BLU | Metallic With Cool Blue | Thread | Grade 302 | 10 | EVERIS LQ6 | Morb | 7/8" | 1/2" | €166.59 | |
 |
LQ6D46008RED | Metallic With Warm Red | Thread | Grade 302 | 10 | EVERIS LQ6 | Morb | 7/8" | 1/2" | €166.59 | |
 |
LQ6D22008RED | Metallic With Warm Red | Free Floating | Grade 302 | 10 | EVERIS LQ6 | Barbed | - | - | €200.05 | |
 |
LQ6D22008LRED | Metallic With Warm Red | In Line | Grade 302 | 10 | EVERIS LQ6 | - | - | - | €200.05 | |
 |
LQ4D47004RED | Metallic With Warm Red | Thread | Grade CA360 | 10 | EVERIS LQ4 | BSPP | 20 mm | 1/4" | €148.77 |
