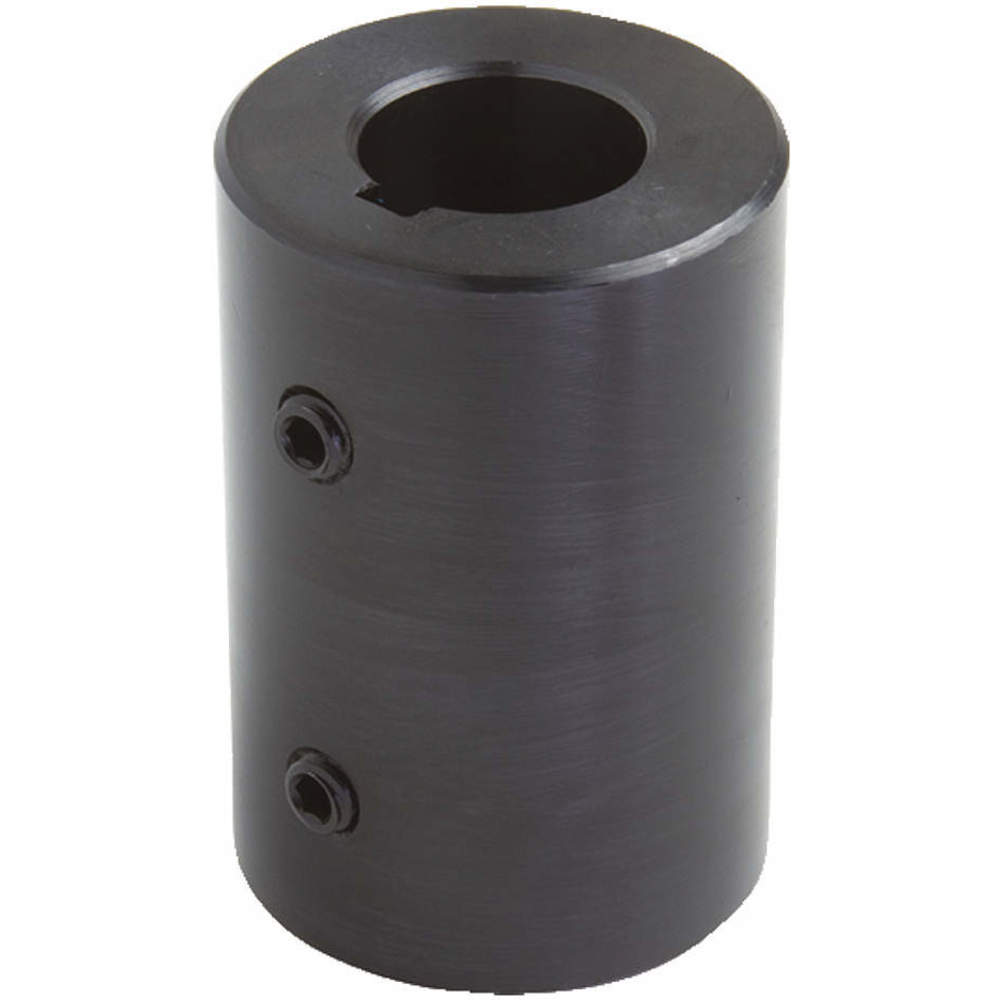

CLIMAX METAL PRODUCTS RC-137-KW Set Screw Coupling, 1 3/8 Inch Bore, 2 1/2 Inch O.D, 4 1/2 Inch Length, Steel, Keyway
Item: AH7RQBModel: RC-137-KWCross Ref: 38AW50
7 In Stock
Ships within 2 days via
13.00% off
€106.91 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Screw Coupling |
| Bore Dia. 1 | 1 3/8" |
| Bore Dia. 2 | 1 3/8" |
| Bore Tolerance | +0.0005" to +0.003" |
| Bore Type | Round Keyed |
| Clearance Dia. | 2.5" |
| Coupling Construction | One-Piece |
| Coupling Material | Carbon Steel |
| Coupling Material Finish | Black Oxide |
| Coupling Material Grade | Grade 1211 |
| Coupling Outside Dia. | 2 1/2" |
| Different Bore Size | No |
| Included Screws | (2) Hex Socket Set Screw |
| Keyway Depth 1 | 5/32" |
| Keyway Depth 2 | 5/32" |
| Keyway Width 1 | 5/16" |
| Keyway Width 2 | 5/16" |
| Material | Steel |
| Max. Bore Dia. | 1 3/8" |
| Max. Speed | 1800 RPM |
| No. Of Locking Screws | 2 |
| Outside Dia. | 2 1/2" |
| Overall Length | 4 1/2" |
| Product Datasheet | climax-metal-products-rc-037-kw.pdf |
| Screw Material | Carbon Steel |
| Screw Material Finish | Black Oxide |
| Screw Material Grade | Grade 4140 |
| Shaft Locking Type | Set Screw |
| System Of Measurement | Imperial |
| Torque | 1375 lbs.-in. |
| Type | Set Screw, With Keyway |
| Zero Backlash | Yes |
Shipping Info:
| Ship weight (kg) | 1.89 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 6.35 |
| HS code | 8483608000 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Material | Torque | Bore Tolerance | Screw Material | Screw Material Grade | Coupling Outside Dia. | Coupling Material | Max. Bore Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RC-037-S-KW | Stainless Steel | 103 lbs.-in. | +0.0005" to +0.0025" | Stainless Steel | 18-8 | 3/4" | Stainless Steel | 3/8" | €73.59 | |
| RC-050-S-KW | Stainless Steel | 138 lbs.-in. | +0.0005" to +0.0025" | Stainless Steel | 18-8 | 1" | Stainless Steel | 1/2" | €68.50 | |
| RC-062-S-KW | Stainless Steel | 281 lbs.-in. | +0.0005" to +0.003" | Stainless Steel | 18-8 | 1 1/4" | Stainless Steel | 5/8" | €106.85 | |
| RC-075-S-KW | Stainless Steel | 338 lbs.-in. | +0.0005" to +0.003" | Stainless Steel | 18-8 | 2 1/4" | Stainless Steel | 5/8" | €137.90 | |
| RC-100-S-KW | Stainless Steel | 450 lbs.-in. | +0.0005" to +0.003" | Stainless Steel | 18-8 | 2" | Stainless Steel | 1" | €247.87 | |
| RC-125-S-KW | Stainless Steel | 750 lbs.-in. | +0.0005" to +0.003" | Stainless Steel | 18-8 | 2 1/4" | Stainless Steel | 1 1/4" | €392.57 | |
| RC-150-S-KW | Stainless Steel | - | - | - | - | - | - | - | €566.11 |
