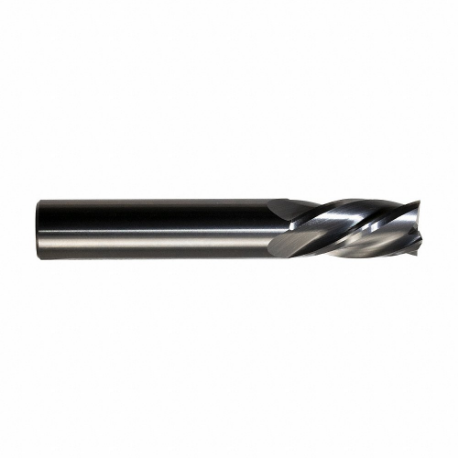

CLEVELAND C98221 0 Square End Mill, Center Cutting, 4 Flutes, 4 mm Milling Dia, 14 mm Length Of Cut
Item: CQ9WKKModel: C98221Cross Ref: 789LD2 / 0
7 In Stock
Ships within 2 days via
10.00% off
€36.01 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Square End Mill |
| Chip-breaker | No |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Cutting Length | 14 mm |
| Cutting Type | Center Cutting |
| Drilling Tool Configuration | Individual |
| End Mill Application | Profile, Ramping |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Square |
| End Type | Single End |
| Finish | Bright, Uncoated |
| Flute Type | Spiral |
| Grade | General Purpose |
| Helix Angle | 30° |
| List Number | CEM-SE-4M |
| Material | Carbide |
| Material Applications | Alloy Steel, Carbon Steel, Alloy Steel, Carbon Steel, Cast Iron, Inconel, Nickel, Stainless Steel, Steel, Alloy Steel, Carbon Steel, Prehardened Steel |
| Material Grade - Machining | General Purpose |
| Milling Dia. | 4 mm |
| Neck Diameter | 0" |
| Number Of Coolant Holes | 0 |
| Number Of Flutes | 4 |
| Overall Length | 50 mm |
| Primary Material Application | Aluminum, Brass, Bronze, Copper |
| Primary Material Application Iso Code | N |
| Secondary Material Application | Cast Iron, Steel |
| Secondary Material Application Iso Code | K, P |
| Shank Dia. | 4 mm |
| Shank Type | Straight |
| Single End/double End | Single End |
| Spiral Direction | Right Hand |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.1 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Milling Dia. | List Number | Cutting Direction | Finish | Overall Length | Shank Dia. | Secondary Material Application | Cutting Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| C98215 | 1 mm | CEM-SE-4M | Right Hand | Bright, Uncoated | 40 mm | 3 mm | Cast Iron, Steel | 3 mm | €38.28 | |

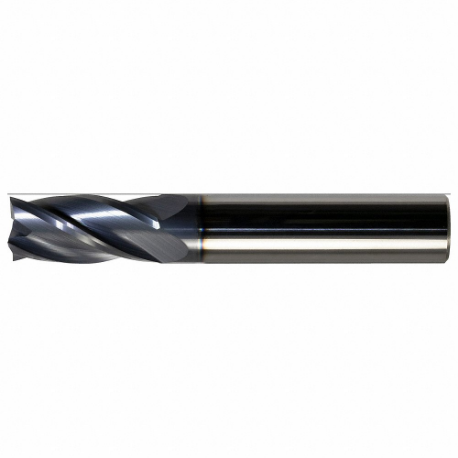

| C98240 | 1 mm | CEM-SE-4M-AT | Right Hand | ALTiN | 40 mm | 3 mm | Stainless Steel | 3 mm | €40.30 | |
| C98216 | 1.5 mm | CEM-SE-4M | Right Hand | Bright, Uncoated | 40 mm | 3 mm | Cast Iron, Steel | 5 mm | €42.78 | |
| C98241 | 1.5 mm | CEM-SE-4M-AT | Right Hand | Aluminum Titanium Nitride | 40 mm | 3 mm | Stainless Steel | 5 mm | €40.30 | |
| C98256 | 10 mm | CEM-SE-4M-AT | Right Hand | ALTiN | 70 mm | 10 mm | Stainless Steel | 22 mm | €91.34 | |
| C98231 | 10 mm | CEM-SE-4M | Right Hand | Bright, Uncoated | 70 mm | 10 mm | Cast Iron, Steel | 22 mm | €90.67 | |
| C98257 | 11 mm | CEM-SE-4M-AT | Right | AlTiN | 70 mm | - | Stainless Steel | - | €167.75 |
