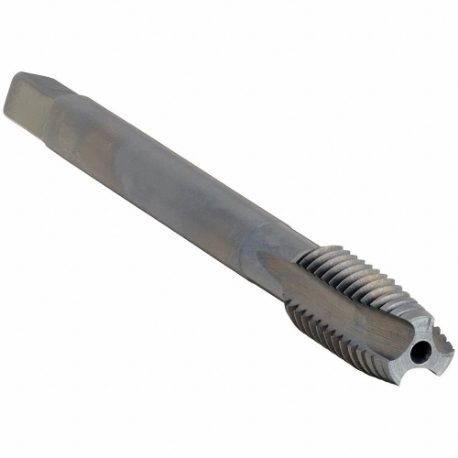

CLEVELAND C96151 Spiral Point Tap, M18X2.5 Thread Size, 54.99 mm Thread Length, 125 mm Length
Item: CQ9RWDModel: C96151Cross Ref: 45ER66
7 In Stock
Ships within 2 days via
10.00% off
€190.14 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Point Tap |
| 55% Thread Drill Size | 16.2 mm |
| 65% Thread Drill Size | 5/8" |
| 75% Thread Drill Size | 15.5 mm |
| Finish | Black Oxide |
| Fits Class | Class 6H |
| Number Of Flutes | 4 |
| Overall Length | 125 mm |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Hardened Steel, Stainless Steel, Steel |
| Primary Material Application Iso Code | H, K, N, P |
| Secondary Material Application | Cast Iron, Stainless Steel, Steel |
| Secondary Material Application Iso Code | K, M, P |
| Shank Dia. | 13.77 mm |
| Shank Length | 70 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 10.31 mm |
| Standards | DIN/ANSI |
| System Of Measurement | Metric |
| Tap Chamfer | Plug |
| Tap Finish | Black Oxide |
| Tap Length Standard | DIN |
| Tap Material | High Speed Steel E |
| Tap Shank Standard | ANSI |
| Tap Thread Size | M18 x 2.5 |
| Thread Direction | Right Hand |
| Thread Length | 54.99 mm |
| Thread Limit | 6H |
| Thread Limit/class Of Fit | 6H |
| Thread Pitch | 2.5 mm |
| Thread Size | M18 x 2.5 |
| Thread Standard | Metric Fine |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Thread Size | Thread Length | Overall Length | Number Of Flutes | 75% Thread Drill Size | Thread Limit | Tap Finish | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| C96110 | #10-24 | 1" | 2 3/4" | 3 | #25 | 2B | - | 0.094" | €40.03 | |
| C96111 | #10-32 | 1" | 2 3/4" | 3 | #21 | 2B | Black Oxide | 3/32" | €38.74 | |
| C86112 | #12-24 | 1 1/16" | 3 1/8" | 3 | 4.45 mm | 2B | TiAlN | 7/64" | €48.68 | |
| C86113 | #12-28 | 1 1/16" | 3 1/8" | 3 | 4.6 mm | 2B | TiAlN | 7/64" | €48.68 | |
| C96113 | #12-28 | 1 1/16" | 3 1/8" | 3 | 4.6 mm | 2B | Black Oxide | 7/64" | €38.97 | |
| C86101 | #2-56 | 1/2" | 1 3/4" | 3 | 1.73 mm | 2B | TiAlN | 9/64" | €79.85 | |
| C96101 | #2-56 | 1/2" | 1 3/4" | 3 | 1.73 mm | 2B | Black Oxide | 9/64" | €69.57 |
