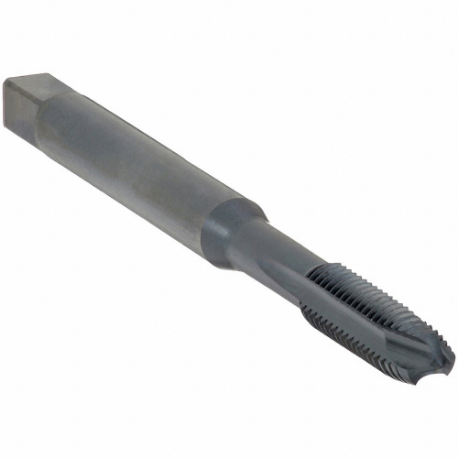

CLEVELAND C86236 Spiral Point Tap, M4X0.7 Thread Size, 21.01 mm Thread Length, 63 mm Length
Item: CQ9RWYModel: C86236Cross Ref: 45EN45
7 In Stock
Ships within 2 days via
10.00% off
€46.57 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Point Tap |
| 55% Thread Drill Size | 3.5 mm |
| 65% Thread Drill Size | 3.4 mm |
| 75% Thread Drill Size | 3.3 mm |
| Drill Bit Size | 3.3 mm |
| Extended Neck | Yes |
| Finish | Black Oxide |
| Fits Class | Class 6H |
| Number Of Flutes | 3 |
| Overall Length | 63 mm |
| Primary Material Application | Stainless Steel, Steel |
| Primary Material Application Iso Code | M, P |
| Secondary Material Application | Cast Iron, Stainless Steel, Steel |
| Secondary Material Application Iso Code | K, M, P |
| Shank Dia. | 4.27 mm |
| Shank Length | 42 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 3.33 mm |
| Standards | DIN/ANSI |
| System Of Measurement | Metric |
| Tap Chamfer | Plug |
| Tap Finish | Black Oxide |
| Tap Length Standard | DIN |
| Tap Material | High Speed Steel E |
| Tap Shank Standard | ANSI |
| Tap Thread Size | M4 x 0.7 |
| Thread Direction | Right Hand |
| Thread Length | 21.01 mm |
| Thread Limit | 6H |
| Thread Limit/class Of Fit | 6H |
| Thread Pitch | 0.7 mm |
| Thread Size | M4 x 0.7 |
| Thread Standard | Metric Coarse |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Thread Size | Thread Length | Number Of Flutes | Thread Limit | Overall Length | 75% Thread Drill Size | Tap Finish | Tap Chamfer | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C57012 | #0-80 | 5/16" | 2 | H2 | 1 5/8" | 1.2 mm | Bright | Bottoming | €56.17 | |
 |
C57600 | #0-80 | 5/16" | 2 | H2 | 1 5/8" | 1.2 mm | Black Oxide | Plug | €51.78 | |
 |
C57009 | #0-80 | 5/16" | 2 | H1 | 1 5/8" | 1.2 mm | Bright | Plug | €48.88 | |
|
C57011 | #0-80 | 5/16" | 2 | H2 | 1 5/8" | 1.2 mm | Bright | Plug | €48.51 | |
 |
C55370 | #0-80 | 5/16" | 2 | H2 | 1 5/8" | 1.2 mm | TiCN | Plug | €61.77 | |
 |
C55290 | #0-80 | 5/16" | 2 | H2 | 1 5/8" | 1.2 mm | Tin | Plug | €53.52 | |
 |
C96010 | #10-24 | 1" | 3 | 2B | 2 3/4" | #25 | Hard Lube | Plug | €48.80 |
