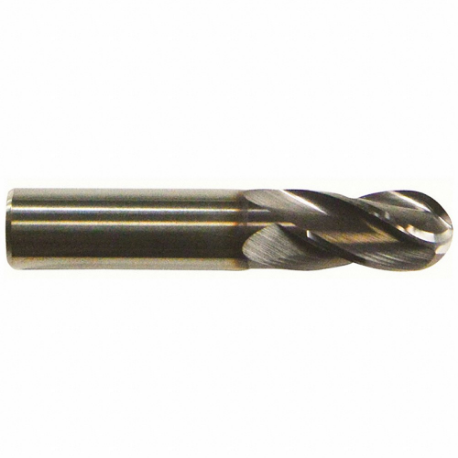

CLEVELAND C83562 0 Ball End Mill, 4 Flutes, 1/2 Inch Milling Dia, 6 Inch Overall Length
Item: CQ9DXEModel: C83562Cross Ref: 33GL89 / 0
7 In Stock
Ships within 2 days via
10.00% off
€204.67 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball End Mill |
| Cast Iron (k) Compatibility | Yes |
| Chip-breaker | No |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Cutting Length | 1 1/2" |
| Cutting Type | Center Cutting |
| Dimension Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing |
| End Mill Style | Ball Nose |
| End Type | Single End |
| Finish | Titanium Aluminum Nitride Coat |
| Grade | General Purpose |
| Hardened Compatibility | Yes |
| Helix Angle | 30° |
| Material | Carbide |
| Material Application | Cast Iron, Carbon Steel, Alloy Steel, Stainless Steel |
| Material Grade - Machining | General Purpose |
| Milling Dia. | 1/2" |
| Neck Dia. | Not Applicable |
| Neck Length | Not Applicable |
| Non Ferrous (n) Compatibility | Yes |
| Number Of Flutes | 4 |
| Overall Length | 4" |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P, M |
| Shank Dia. | 1/2" |
| Shank Type | Straight |
| Spiral Direction | Right Hand |
| Stainless (m) Compatibility | Yes |
| Steel (p) Compatibility | Yes |
| Super Alloy (s) Compatibility | Yes |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.15 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 15.9 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Milling Dia. | Material | Overall Length | Shank Dia. | Helix Angle | Number Of Flutes | List Number | Cutting Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C60974 | 1" | Carbide | 6" | 1" | 30° | 2 | - | 3" | €966.12 | |
 |
C80974 | 1" | Carbide | 6" | 1" | 30° | 2 | - | 3" | €1,130.47 | |
 |
C60972 | 1" | Carbide | 4" | 1" | 30° | 2 | - | 1 1/2" | €633.30 | |
|
C80972 | 1" | Carbide | 4" | 1" | 30° | 2 | - | 1 1/2" | €689.68 | |
|
C60973 | 1" | Carbide | 5" | 1" | 30° | 2 | - | 2 1/4" | €872.63 | |
|
C80956 | 1/2" | Carbide | 3" | 1/2" | 30° | 2 | - | 1" | €159.63 | |
|
C60956 | 1/2" | Carbide | 3" | 1/2" | 30° | 2 | - | 1" | €132.10 |
