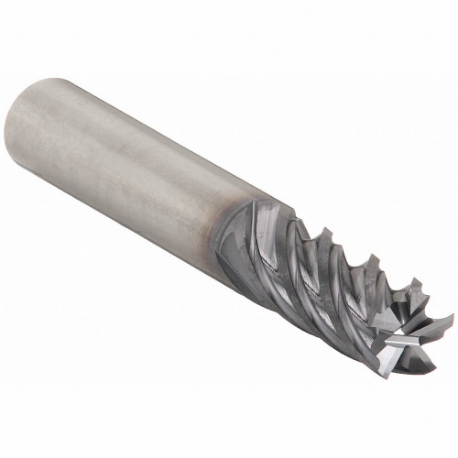

CLEVELAND C80557 0 Square End Mill, Center Cutting, 5 Flutes, 7/16 Inch Milling Dia, 2 Inch Length Of Cut
Item: CQ9XFBModel: C80557Cross Ref: 33GG54 / 0
7 In Stock
Ships within 2 days via
10.00% off
€149.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Square End Mill |
| Cast Iron (k) Compatibility | No |
| Chip-breaker | No |
| Cutting Direction | Right Hand |
| Cutting Direction - Machining | Right Hand |
| Cutting Length | 2" |
| Cutting Type | Center Cutting |
| Dimension Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End Mill Application | Roughing/Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Square |
| End Type | Single End |
| Finish | Titanium Aluminum Nitride Coat |
| Grade | High Performance |
| Hardened Compatibility | Yes |
| Helix Angle | 38° |
| List Number | CEM-V2-5R-TA |
| Material | Carbide |
| Material Application | Steel, Carbon Steel, Stainless Steel, Super Alloy, Titanium |
| Material Applications | Carbon Steel, Stainless Steel, Steel, Super Alloy, Titanium |
| Material Grade | HIGH PERFORMANCE |
| Material Grade - Machining | High Performance |
| Milling Dia. | 0.438" |
| Milling Diameter | 7/16" |
| Neck Dia. | Not Applicable |
| Neck Length | Not Applicable |
| Non Ferrous (n) Compatibility | No |
| Number Of Flutes | 5 |
| Overall Length | 4" |
| Primary Material Application | Nickel, Stainless Steel, Steel, Titanium |
| Primary Material Application Iso Code | M, P, S |
| Shank Dia. | 0.438" |
| Shank Diameter | 7/16" |
| Shank Type | Straight |
| Single End/double End | Single End |
| Stainless (m) Compatibility | Yes |
| Steel (p) Compatibility | Yes |
| Super Alloy (s) Compatibility | Yes |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10.49 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Number Of Flutes | Overall Length | Milling Dia. | Shank Dia. | List Number | End Mill Style | Grade | Length Of Cut | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| C80514 | 5 | 4" | 1" | 1" | CEM-V2-5R | Corner Radius | - | - | €582.75 | |
| C60515 | 5 | 5" | 1" | 1" | CEM-V2-5R | - | - | - | €619.45 | |
| C80512 | 5 | 4" | 3/4" | 3/4" | CEM-V2-5R | Corner Radius | - | - | €341.95 | |
| C60512 | 5 | 4" | 3/4" | 3/4" | CEM-V2-5R | Corner Radius | - | - | €318.29 | |
| C80511 | 5 | 3" | 3/4" | 3/4" | CEM-V2-5R | Corner Radius | - | - | €336.11 | |
| C60513 | 5 | 5" | 3/4" | 3/4" | CEM-V2-5R | Corner Radius | - | - | €402.33 | |
| C80513 | 5 | 5" | 3/4" | 3/4" | CEM-V2-5R | Corner Radius | - | - | €484.54 |
