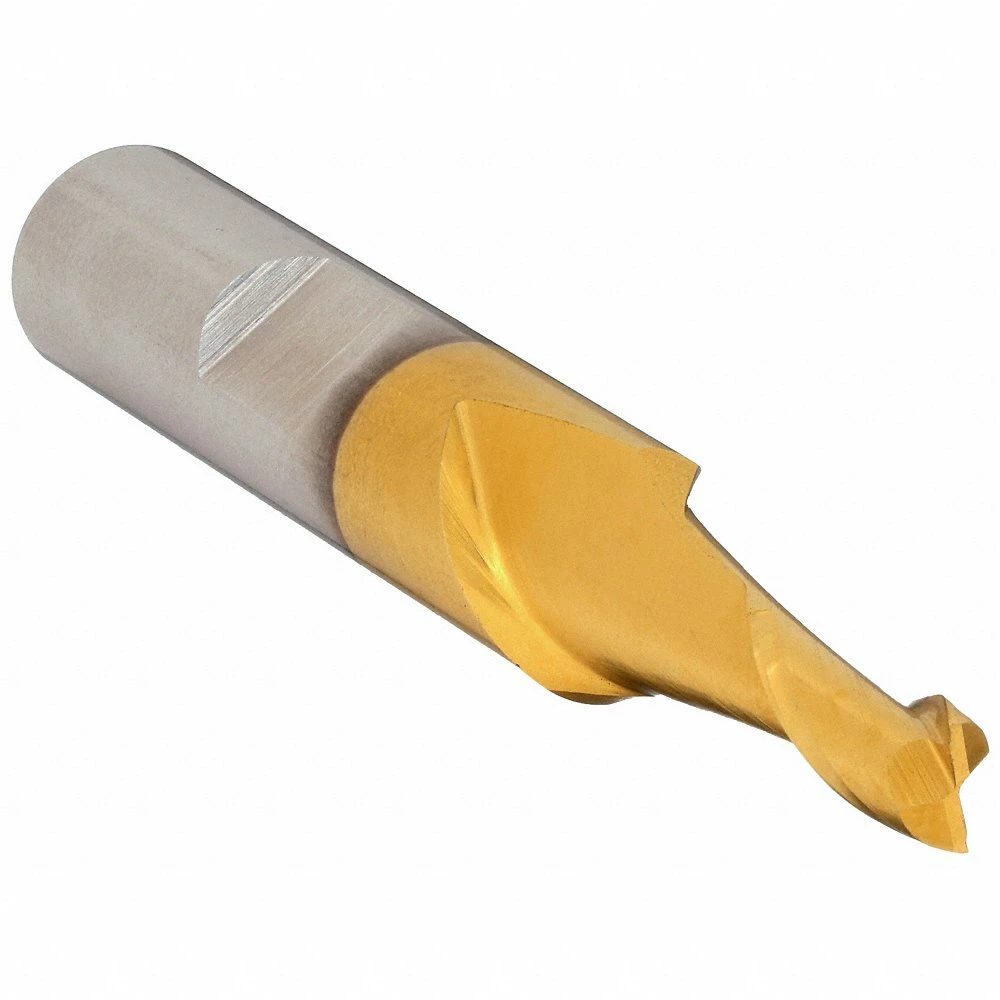

CLEVELAND C75217 Square End Mill, Center Cutting, 2 Flutes, 3/16 Inch Milling Dia, 9/32 Inch Cut
Item: CQ9VBWModel: C75217Cross Ref: 438T65
7 In Stock
Ships within 2 days via
5.00% off
€25.45 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Square End Mill |
| Cast Iron (k) Compatibility | Yes |
| Chip Breaker | No |
| Cutting Direction | Right Hand |
| Cutting Direction-machining | Right Hand |
| Cutting Length | 0.281" |
| Cutting Type | Center Cutting |
| Dimensions Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Square |
| End Type | Single End |
| Finish | Tin |
| Finish-machining | Tin |
| Grade | General Purpose |
| Hardened Compatibility | No |
| Helix Angle | 30° |
| Length Of Cut | 9/32" |
| List Number | HG-2-TN |
| Material | High Speed Steel |
| Material Grade-machining | General Purpose |
| Material-machining | High Speed Steel |
| Milling Dia. | 3/16" |
| Neck Dia. | Not Applicable |
| Neck Length | Not Applicable |
| No. Of Flutes | 2 |
| Non Ferrous (n) Compatibility | Yes |
| Overall Length | 2 3/16" |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Shank Dia. | 3/8" |
| Shank Type | Weldon |
| Shank Type-machining | Weldon Flat |
| Single End/double End | Single End |
| Stainless Compatibility | No |
| Steel (p) Compatibility | Yes |
| Super Alloy (s) Compatibility | No |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.2 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Shank Dia. | Primary Material Application | Primary Material Application Iso Code | Cutting Length | Milling Dia. | Finish-machining | Finish | No. Of Flutes | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C38916 | 1 1/4" | Cast Iron, Steel | K, P | 1 5/8" | 1 1/2" | TiCN | TiCN | 2 | €334.71 | |
 |
C33799 | 1" | Cast Iron, Steel | K, P | 1 5/8" | 1 1/2" | Tin | Tin | 2 | €319.12 | |
|
C38915 | 1" | Cast Iron, Steel | K, P | 1 5/8" | 1 1/2" | TiCN | TiCN | 2 | €334.71 | |
|
C33800 | 1 1/4" | Cast Iron, Steel | K, P | 1 5/8" | 1 1/2" | Tin | Tin | 2 | €319.12 | |
|
C33796 | 1" | Cast Iron, Steel | K, P | 1 5/8" | 1 1/4" | Tin | Tin | 2 | €238.92 | |
 |
C38911 | 7/8" | Cast Iron, Steel | K, P | 1 5/8" | 1 1/4" | TiCN | TiCN | 2 | - | RFQ
|
 |
C38912 | 1" | Cast Iron, Steel | K, P | 1 5/8" | 1 1/4" | TiCN | TiCN | 2 | €254.81 |
