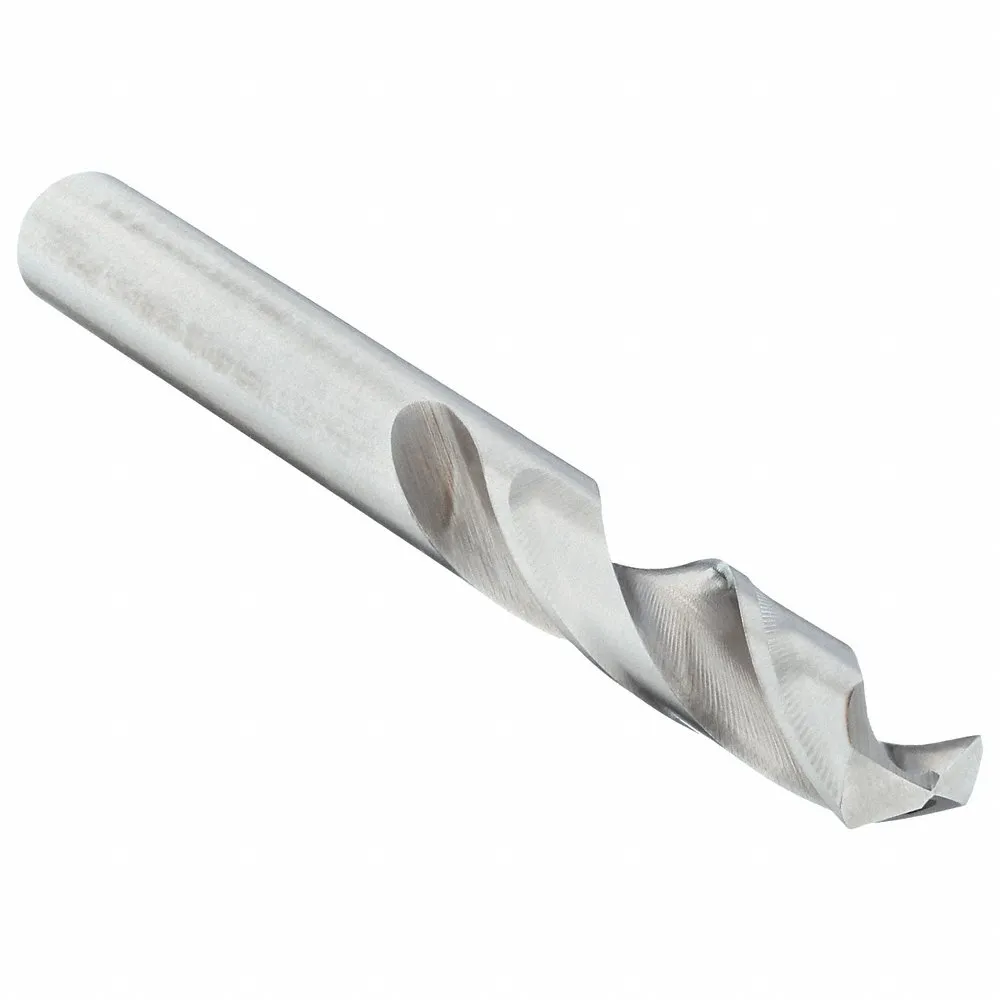

CLEVELAND C70352 Screw Machine Drill Bit, #48 Drill Bit Size, 11/16 Inch Flute Length
Item: CX7NJHModel: C70352Cross Ref: 440A07
7 In Stock
Ships within 2 days via
10.00% off
€4.18 /unit
This product can only be shipped in multiples of 12Add To Cart
Request a Quote
Payment
Product Specifications:
| Aircraft Drill | Yes |
| Application | For Drilling Austenitic Stainless Steel, Aluminum, Carbon Steel, Die Steel, Iron-Based Alloys, Tool Steel |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.076 |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #48 |
| Drill Diameter Tolerance | -0" to +0.0005" |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.0157" |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 11/16" |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Helix Angle | 28° |
| List Number | 2330 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | Heavy Duty |
| Max. Drilling Depth | 11/16" |
| Measurement System | Wire |
| No. Of Pieces | 0 |
| Number Of Flutes | 2 |
| Overall Length | 1 11/16" |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Secondary Material Application | Aluminum, Brass, Bronze, Copper, Stainless Steel |
| Secondary Material Application Iso Code | M, N |
| Shank Diameter | 5/64" |
| Shank Length | 1" |
| Shank Type - Machining | Straight |
| Sizes Included | #48 |
| Spiral Direction | Right Hand |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 4.29 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
