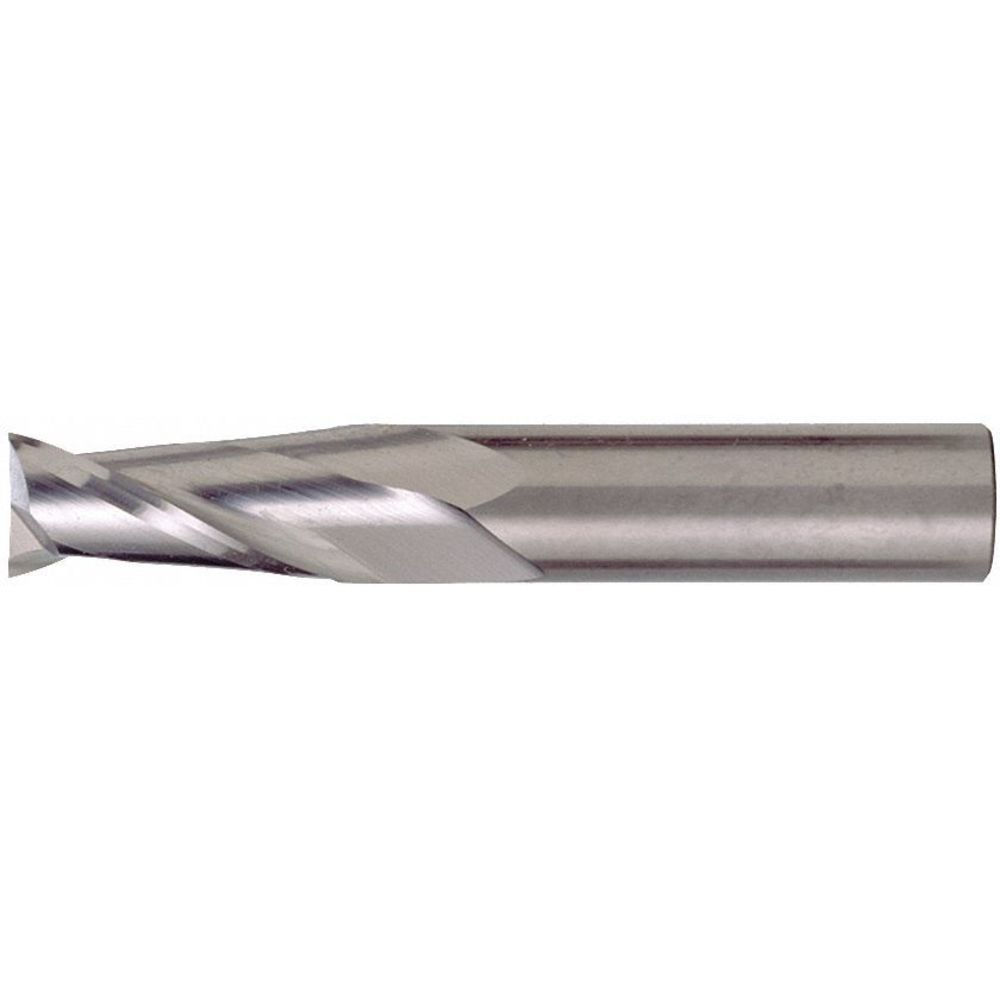

CLEVELAND C61037 Corner Radius End Mill, 5/16 Inch Milling Diameter, 13/16 Inch L of Cut
Item: CD2KQZModel: C61037Cross Ref: 33FY50
7 In Stock
Ships within 2 days via
€44.35 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Corner Radius End Mill |
| Cast Iron (k) Compatibility | Yes |
| Corner Radius | 0.03" |
| Cutting Direction | Right Hand |
| Cutting Direction-machining | Right Hand |
| Cutting Length | 0.812" |
| Cutting Type | Center |
| Dimensions Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Corner Radius |
| End Type | Single End |
| Finish | Bright |
| Finish-machining | Bright (Uncoated) |
| Grade | General Purpose |
| Hardened Compatibility | No |
| Helix Angle | 35° |
| Length Of Cut | 13/16" |
| List Number | CEM-SE-2 |
| Material | Carbide |
| Material Grade-machining | General Purpose |
| Material-machining | Carbide |
| Milling Dia. | 5/16" |
| Neck Dia. | Not Applicable |
| Neck Length | Not Applicable |
| No. Of Flutes | 2 |
| Non Ferrous (n) Compatibility | Yes |
| Overall Length | 2 1/2" |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Magnesium |
| Primary Material Application Iso Code | N |
| Shank Dia. | 5/16" |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Single End/double End | Single End |
| Stainless Compatibility | No |
| Steel (p) Compatibility | Yes |
| Super Alloy (s) Compatibility | No |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.51 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Milling Dia. | Shank Dia. | Material | Finish | Helix Angle | Overall Length | Corner Radius | List Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| C40033 | 3/4" | 3/4" | Powdered Metal | TiCN Coating | 42° | 3 7/8" | 0.06" | PM-538R-TC | €187.24 | |
| C40035 | 3/4" | 3/4" | Powdered Metal | TiCN Coating | 42° | 3 7/8" | 3/25" | PM-538R-TC | €237.22 | |
| C40064 | 3/4" | 3/4" | Powdered Metal | TiCN Coating | 42° | 4 1/2" | 0.06" | PM-538R-TC | €278.09 | |
| C40066 | 3/4" | 3/4" | Powdered Metal | TiCN Coating | 42° | 4 1/2" | 3/25" | PM-538R-TC | €265.57 | |
| C40036 | 3/4" | 3/4" | Powdered Metal | TiCN Coating | 42° | 5 1/4" | 0.06" | PM-538R-TC | €306.45 | |
| C40038 | 3/4" | 3/4" | Powdered Metal | TiCN Coating | 42° | 5 1/4" | 3/25" | PM-538R-TC | €300.49 | |
| C40039 | 1" | 1" | Powdered Metal | TiCN Coating | 42° | 4 1/2" | 0.06" | PM-538R-TC | €340.92 |
