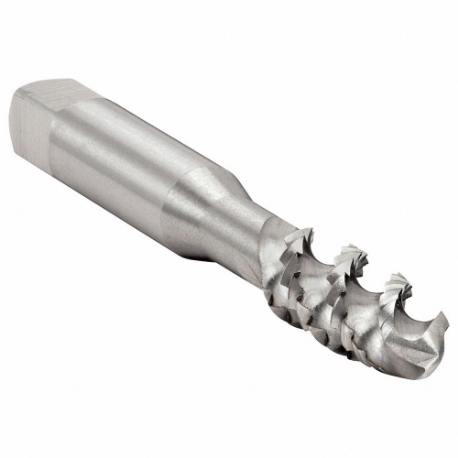

CLEVELAND C58812 1093 Spiral Flute Tap, M10X1.5 Thread Size, 31.75 mm Thread Length, 74.61 mm Length
Item: CQ9QZLModel: C58812Cross Ref: 435V72 / 1093
7 In Stock
Ships within 2 days via
10.00% off
€63.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 8.9 mm |
| 65% Thread Drill Size | 11/32" |
| 75% Thread Drill Size | 8.5 mm |
| Drill Bit Size | 8.5 mm |
| Extended Neck | Yes |
| Features | High Helix |
| Finish | Bright |
| Fits Class | Class 6H |
| Grade | Grade 1093 |
| Helix Angle | 52° |
| Material Grade - Machining | Grade 1093 |
| Number Of Flutes | 3 |
| Overall Length | 74.61 mm |
| Primary Material Application Iso Code | N |
| Shank Dia. | 9.68 mm |
| Shank Length | 42.86 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Square Size | 7.26 mm |
| Standards | Uscti Table 302A |
| System Of Measurement | Metric |
| Tap Chamfer | Plug |
| Tap Finish | Bright |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI Table 302A |
| Tap Style | Spiral Flute |
| Tap Thread Size | M10 x 1.5 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 31.75 mm |
| Thread Limit | D8 |
| Thread Limit / Class Of Fit | D8, 6H |
| Thread Pitch | 1.5 mm |
| Thread Size | M10 x 1.5 |
| Thread Standard | Metric |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10.01 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Thread Size | Thread Length | Overall Length | 75% Thread Drill Size | Thread Limit | Number Of Flutes | Tap Finish | Tap Chamfer | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C58437 | #10-24 | 1/2" | 2 3/8" | #25 | H3 | 3 | Black Oxide | Bottoming | €38.30 | |
 |
C58545 | #10-24 | 1/2" | 2 3/8" | #25 | H3 | 3 | Bright | Bottoming | €32.76 | |
 |
C55575 | #10-24 | 1/2" | 2 3/8" | #25 | H3 | 3 | Tin | Plug | €44.28 | |
 |
C58544 | #10-24 | 1/2" | 2 3/8" | #25 | H3 | 3 | - | Plug | €33.16 | |
 |
C58436 | #10-24 | 1/2" | 2 3/8" | #25 | H3 | 3 | Black Oxide | Plug | €37.79 | |
|
C58547 | #10-32 | 1/2" | 2 3/8" | #21 | H3 | 3 | Bright | Bottoming | €33.32 | |
|
C58439 | #10-32 | 1/2" | 2 3/8" | #21 | H3 | 3 | Black Oxide | Bottoming | €37.33 |
