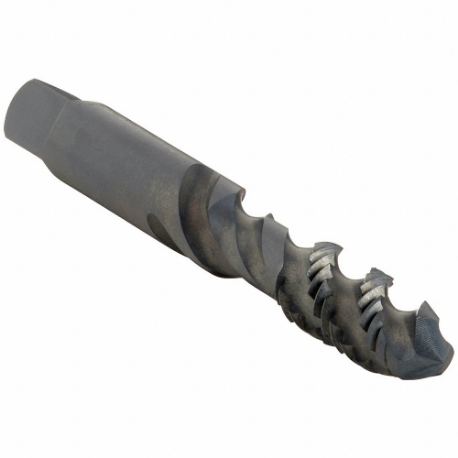

CLEVELAND C58452 1095 Spiral Flute Tap, 1/2-13 Thread Size, 15/16 Inch Thread Length, 3 3/8 Inch Length
Item: CQ9RDXModel: C58452Cross Ref: 435V34 / 1095
7 In Stock
Ships within 2 days via
10.00% off
€93.51 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 11.3 mm |
| 65% Thread Drill Size | 11 mm |
| 75% Thread Drill Size | 27/64" |
| Class Of Fit | Class 2B |
| Extended Neck | Yes |
| Features | CNC Heavy Duty |
| Finish | Black Oxide |
| Helix Angle | 45° |
| Material Grade - Machining | Grade 1095 |
| Measurement System | Fractional Inch |
| Overall Length | 3 3/8" |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Secondary Material Application | Cast Iron |
| Secondary Material Application Iso Code | K |
| Shank Dia. | 23/64" |
| Shank Length | 1 23/32" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Square Size | 0.275" |
| Standards | Uscti Table 302A |
| System Of Measurement | Imperial |
| Tap Chamfer | Plug |
| Tap Finish | Black Oxide |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI Table 302A |
| Tap Style | Spiral Flute |
| Tap Thread Size | 1/2"-13 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 15/16" |
| Thread Limit | H3 |
| Thread Limit / Class Of Fit | H3, 2B |
| Thread Size | 1/2"-13 |
| Thread Standard | Coarse |
| Threads Per Inch | 13 |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 9.8 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Thread Size | Thread Length | Overall Length | 75% Thread Drill Size | Thread Limit | Number Of Flutes | Tap Finish | Tap Chamfer | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C58437 | #10-24 | 1/2" | 2 3/8" | #25 | H3 | 3 | Black Oxide | Bottoming | €38.30 | |
 |
C58545 | #10-24 | 1/2" | 2 3/8" | #25 | H3 | 3 | Bright | Bottoming | €32.76 | |
 |
C55575 | #10-24 | 1/2" | 2 3/8" | #25 | H3 | 3 | Tin | Plug | €44.28 | |
 |
C58544 | #10-24 | 1/2" | 2 3/8" | #25 | H3 | 3 | - | Plug | €33.16 | |
 |
C58436 | #10-24 | 1/2" | 2 3/8" | #25 | H3 | 3 | Black Oxide | Plug | €37.79 | |
|
C58547 | #10-32 | 1/2" | 2 3/8" | #21 | H3 | 3 | Bright | Bottoming | €33.32 | |
|
C58439 | #10-32 | 1/2" | 2 3/8" | #21 | H3 | 3 | Black Oxide | Bottoming | €37.33 |
