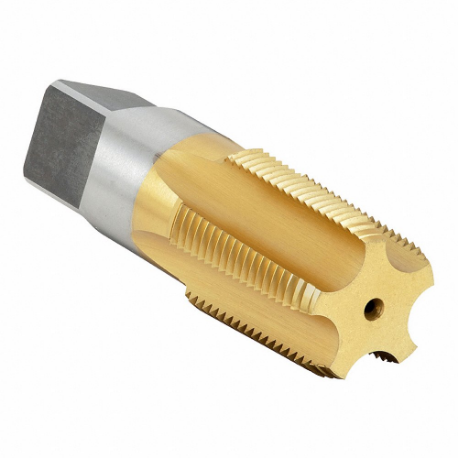

CLEVELAND C55686 975 Pipe And Conduit Thread Tap, 3/4-14 Thread Size, 1 3/8 Inch Thread Length
Item: CQ9NBHModel: C55686Cross Ref: 435T32 / 975
7 In Stock
Ships within 2 days via
10.00% off
€229.12 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tap |
| 75% Thread Drill Size | 0.9063" |
| Coolant Fed | Coolant Through |
| Cutting Direction - Machining | Right Hand |
| Drill Bit Size | 29/32", 57/64" |
| Extended Neck | No |
| Finish | Titanium Nitride Coated |
| Helix Angle | 0° |
| Interrupted Thread | No |
| List Number | 975 |
| Material Grade - Machining | Grade 975TN |
| Max. Projection | 0.565" |
| No. Of Pieces | 1 |
| Number Of Flutes | 5 |
| Overall Length | 3 1/4" |
| Pitch Diameter Limit | Not Rated |
| Primary Material Application | Cast Iron, Stainless Steel, Steel |
| Primary Material Application Iso Code | K, M, P |
| Shank Dia. | 29/32" |
| Shank Length | 1 7/8" |
| Spiral Direction | Neutral |
| Square Size | 0.679" |
| Standards | Uscti |
| System Of Measurement | Fractional Inch |
| Tap Chamfer | Semi Bottoming |
| Tap Finish | Tin |
| Tap Length Standard | USCTI Table 311 |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI Table 311 |
| Tap Style | Pipe |
| Tap Thread Size | 3/4"-14 |
| Tap Type | Pipe |
| Thread Direction | Right Hand |
| Thread Length | 1 3/8" |
| Thread Size | 3/4"-14 |
| Thread Standard | NPTF |
| Threads Per Inch | 14 |
Shipping Info:
| Ship weight (kg) | 0.24 |
| Ship height (cm) | 3.51 |
| Ship length (cm) | 10.31 |
| Ship width (cm) | 3.51 |
| Country of Origin | US |
Product Variants
| Product | Model | Thread Size | Thread Length | Overall Length | 75% Thread Drill Size | Number Of Flutes | Tap Finish | Shank Dia. | Shank Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C64058 | 1/16"-27 | 11/16" | 2 1/8" | C | 4 | - | 5/16" | 1 27/64" | €70.70 | |
 |
C56700 | 1/16"-27 | 11/16" | 2 1/8" | C | 4 | Tin | 5/16" | 1 1/2" | €86.13 | |
 |
C64036 | 1/16"-27 | 11/16" | 2 1/8" | C | - | - | 5/16" | 1 27/64" | €70.39 | |
 |
C55680 | 1/16"-27 | 11/16" | 2 1/8" | C | 4 | Tin | 5/16" | 1 1/2" | €86.13 | |
 |
C64111 | 1/2"-14 | 1 3/8" | 3 1/8" | 0.7031" | 5 | Bright | 11/16" | 1 3/4" | €256.31 | |
 |
C56705 | 1/2"-14 | 1 3/8" | 3 1/8" | 0.703" | 4 | - | 0.688" | 1 3/4" | €186.53 | |
 |
C64063 | 1/2"-14 | 1 3/8" | 3 1/8" | 0.7031" | 4 | Bright | 11/16" | 1 3/4" | €161.00 |
