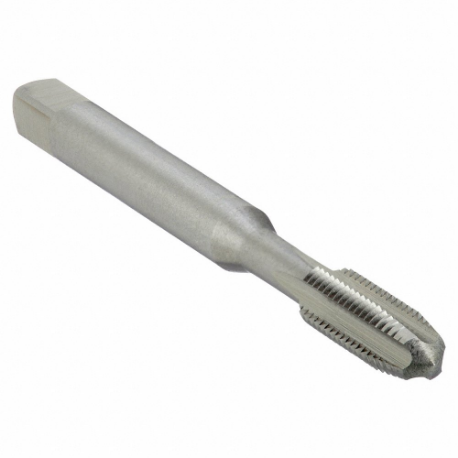

CLEVELAND C54290 1002 Straight Flute Tap, #8-36 Thread Size, 3/8 Inch Thread Length, 2 1/8 Inch Length, Pipe
Item: CQ9XXWModel: C54290Cross Ref: 435M05 / 1002
7 In Stock
Ships within 2 days via
10.00% off
€16.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Straight Flute Tap |
| 55% Thread Drill Size | #27 |
| 65% Thread Drill Size | 9/64" |
| 75% Thread Drill Size | #29 |
| Class Of Fit | Class 2B |
| Extended Neck | Yes |
| Finish | Bright |
| Measurement System | Pipe |
| Number Of Flutes | 4 |
| Overall Length | 2 1/8" |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Primary Material Application Iso Code | K, M, N, P |
| Shank Dia. | 5/32" |
| Shank Length | 1 3/8" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 0.131" |
| Standards | Uscti Table 302A |
| Tap Chamfer | Plug |
| Tap Finish | Bright |
| Tap Length Standard | USCTI |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI |
| Tap Style | Straight Flute (Hand) |
| Thread Direction | Right Hand |
| Thread Length | 3/8" |
| Thread Limit | H2 |
| Thread Limit/class Of Fit | H2, 2B |
| Thread Size | #8-36 |
| Thread Standard | Fine |
| Threads Per Inch | 36 |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Flutes | Thread Direction | Overall Length | Thread Length | Thread Limit | Thread Size | Tap Finish | 75% Thread Drill Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C60732 | 4 | Left Hand | 2 3/8" | 1/2" | H3 | #10-32 | Bright | #21 | €33.30 | |
 |
C55156 | 2 | Right Hand | 1 5/8" | 5/16" | H2 | #0-80 | Tin | 1.2 mm | €48.85 | |
 |
C54030 | 2 | Right Hand | 1 5/8" | 5/16" | H2 | #0-80 | Bright | 1.2 mm | €43.46 | |
|
C54027 | 2 | Right Hand | 1 5/8" | 5/16" | H1 | #0-80 | Bright | 1.2 mm | €45.15 | |
 |
C54029 | 2 | Right Hand | 1 5/8" | 5/16" | H2 | #0-80 | Bright | 1.2 mm | €43.85 | |
|
C54026 | 2 | Right Hand | 1 5/8" | 5/16" | H1 | #0-80 | Bright | 1.2 mm | €43.46 | |
 |
C54025 | 2 | Right Hand | 1 5/8" | 5/16" | H1 | #0-80 | Bright | 1.2 mm | €43.85 |
