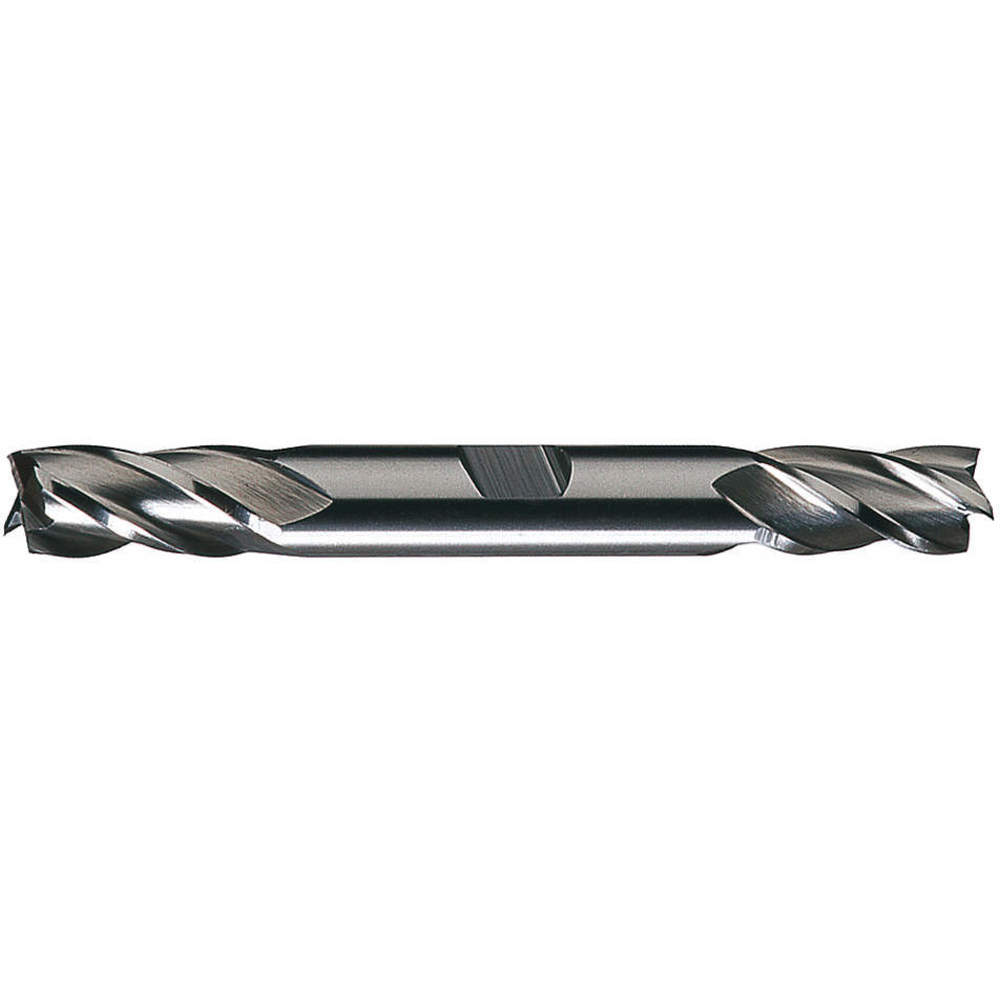

CLEVELAND C41202 High Speed Steel End Mill 1/8 Inch D 3/8 Inch Cut L
Item: AC4YJGModel: C41202Cross Ref: 31C292
7 In Stock
Ships within 2 days via
€49.49 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | High Speed Steel End Mill |
| Chip Breaker | No |
| Corner Radius | 3.062" |
| Cutting Direction | Right Hand |
| Cutting Direction-machining | Right Hand |
| Cutting Length | 3/8" |
| Cutting Type | Center Cutting |
| Dia. | 1/8" |
| Dimensions Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End | Double |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Material | High Speed Steel |
| End Mill Style | Square |
| End Type | Double |
| Finish | Bright |
| Finish-machining | Bright (Uncoated) |
| Grade | General Purpose |
| Helix Angle | 30° |
| Length Of Cut | 3/8" |
| List Number | HD-4C |
| Material | High Speed Steel |
| Material Grade | General Purpose |
| Material Grade-machining | General Purpose |
| Material-machining | High Speed Steel |
| Milling Dia. | 1/8" |
| Neck Dia. | Not Applicable |
| Neck Length | Not Applicable |
| No. Of Flutes | 4 |
| Overall Length | 3 1/16" |
| Primary Material Application | Cast Iron, Copper, Magnesium, Steel |
| Primary Material Application Iso Code | K, N, P |
| Shank Dia. | 3/8" |
| Shank Type | Weldon Flat |
| Shank Type-machining | Weldon Flat |
| Single End/double End | Double End |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.1 |
| Ship width (cm) | 2.54 |
| HS code | 8207703030 |
| Country of Origin | US |
Product Variants
| Product | Model | Cutting Direction | Shank Dia. | Overall Length | Milling Dia. | Length Of Cut | Helix Angle | List Number | End Mill Cutting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C42096 | Right Hand | 3/8" | 2 3/4" | 1/8" | 3/16" | 30° | HD-2 | Center Cutting | €34.35 | |
 |
C39044 | Right Hand | 3/8" | 2 3/4" | 1/8" | 3/16" | 30° | HD-2-TN | Center Cutting | €36.45 | |
 |
C39049 | Right Hand | 3/8" | 2 3/4" | 1/8" | 0.188" | 0.188" | - | - | €39.23 | |
|
C42051 | Right Hand | 3/8" | 3 1/16" | 1/8" | 3/8" | 30° | HD-2 | Center Cutting | €38.37 | |
|
C33648 | Right Hand | 3/8" | 3 1/16" | 1/8" | 3/8" | 30° | HD-2-TN | Center Cutting | €41.94 | |
|
C33689 | Right Hand | 3/8" | 3 1/16" | 1/8" | 3/8" | 30° | HD-2-TC | Center Cutting | €44.44 | |
|
C33626 | Right Hand | 3/8" | 3 1/8" | 9/64" | 7/16" | 30° | HD-2 | Center Cutting | €51.09 |
