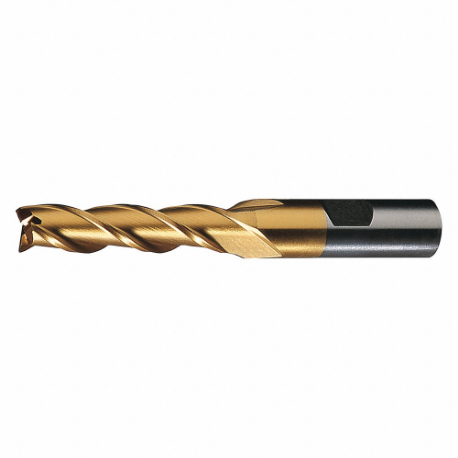

CLEVELAND C39767 Square End Mill, Center Cutting, 3 Flutes, 1 Inch Milling Dia, 4 Inch Cut
Item: CQ9XMAModel: C39767Cross Ref: 438K42
7 In Stock
Ships within 2 days via
€203.73 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Square End Mill |
| Cast Iron (k) Compatibility | Yes |
| Chip Breaker | No |
| Cutting Direction | Right Hand |
| Cutting Direction-machining | Right Hand |
| Cutting Length | 4" |
| Cutting Type | Center Cutting |
| Dimensions Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Square |
| End Type | Single End |
| Finish | Tin |
| Finish-machining | Tin |
| Grade | General Purpose |
| Hardened Compatibility | No |
| Helix Angle | 30° |
| List Number | HG-3-TN |
| Material | High Speed Steel |
| Material Grade-machining | General Purpose |
| Material-machining | High Speed Steel |
| Milling Dia. | 1" |
| Neck Dia. | Not Applicable |
| Neck Length | Not Applicable |
| No. Of Flutes | 3 |
| Non Ferrous (n) Compatibility | Yes |
| Overall Length | 6 1/2" |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Shank Dia. | 1" |
| Shank Type | Weldon |
| Shank Type-machining | Weldon Flat |
| Single End/double End | Single End |
| Stainless Compatibility | No |
| Steel (p) Compatibility | Yes |
| Super Alloy (s) Compatibility | No |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.49 |
| Ship height (cm) | 2.59 |
| Ship length (cm) | 20.9 |
| Ship width (cm) | 2.59 |
| Country of Origin | US |
Product Variants
| Product | Model | Primary Material Application | Shank Dia. | List Number | Overall Length | Helix Angle | Cutting Direction | Milling Dia. | End Mill Cutting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C38916 | Cast Iron, Steel | 1 1/4" | HG-2-TC | 4 1/2" | 30° | Right Hand | 1 1/2" | Center Cutting | €266.08 | |
 |
C33799 | Cast Iron, Steel | 1" | HG-2-TN | 4 1/2" | 30° | Right Hand | 1 1/2" | Center Cutting | €251.74 | |
|
C38915 | Cast Iron, Steel | 1" | HG-2-TC | 4 1/2" | 30° | Right Hand | 1 1/2" | Center Cutting | €264.00 | |
|
C33800 | Cast Iron, Steel | 1 1/4" | HG-2-TN | 4 1/2" | 30° | Right Hand | 1 1/2" | Center Cutting | €251.74 | |
|
C33796 | Cast Iron, Steel | 1" | HG-2-TN | 4 1/2" | 30° | Right Hand | 1 1/4" | Center Cutting | €189.80 | |
 |
C38911 | Cast Iron, Steel | 7/8" | HG-2-TC | 4 1/8" | 30° | Right Hand | 1 1/4" | Center Cutting | - | RFQ
|
 |
C38912 | Cast Iron, Steel | 1" | HG-2-TC | 4 1/2" | 30° | Right Hand | 1 1/4" | Center Cutting | €203.39 |
