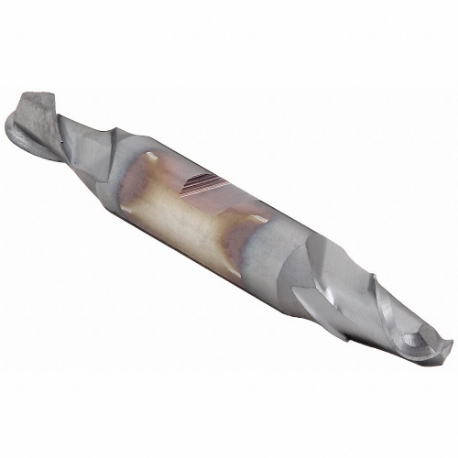

CLEVELAND C39166 0 Ball End Mill, High Speed Steel, Ticn Finish, 2 Flutes, 11/32 Inch Milling Dia
Get it by Tuesday, Dec 23
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball End Mill |
| Cast Iron (k) Compatibility | Yes |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction | Right Hand |
| Cutting Length | 0.562" |
| Cutting Type | Center Cutting |
| Dimension Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing |
| End Mill Style | Ball Nose |
| End Type | Double End |
| Finish | TiCN |
| Grade | General Purpose |
| Hardened Compatibility | No |
| Helix Angle | 30° |
| List Number | HD-2B-TC |
| Material | High Speed Steel |
| Material Application | Cast Iron, Carbon Steel, Alloy Steel |
| Material Grade - Machining | General Purpose |
| Milling Dia. | 11/32" |
| Neck Dia. | Not Applicable |
| Neck Length | Not Applicable |
| Non Ferrous (n) Compatibility | Yes |
| Number Of Flutes | 2 |
| Overall Length | 3 1/2" |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Shank Dia. | 3/8" |
| Shank Type | Weldon |
| Spiral Direction | Right Hand |
| Stainless (m) Compatibility | No |
| Steel (p) Compatibility | Yes |
| Super Alloy (s) Compatibility | No |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.99 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Milling Dia. | List Number | Overall Length | Cutting Direction | Finish | Shank Dia. | Length Of Cut | Coolant Fed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| C42212 | 1" | HD-2B | 6.3" | Right Hand | Bright, Uncoated | 1" | - | Non-Coolant Through | €335.82 | |
| C42189 | 1/4" | HD-2B | 3.3" | Right Hand | Bright, Uncoated | 3/8" | - | Non-Coolant Through | €101.21 | |
| C75119 | 1/4" | HD-2B | 3.3" | Right Hand | Bright, Uncoated | 3/8" | - | Non-Coolant Through | €79.61 | |
| C42184 | 1/8" | HD-2B | 3" | Right Hand | Bright, Uncoated | 3/8" | - | Non-Coolant Through | €101.21 | |
| C42199 | 11/32" | HD-2B | 4.1" | Right Hand | Bright, Uncoated | 1/2" | - | Non-Coolant Through | €146.81 | |
| C42194 | 11/32" | HD-2B | 3 1/2" | Right Hand | Bright, Uncoated | - | - | Non-Coolant Through | €104.77 | |
| C42197 | 11/32" | HD-2B | 4.1" | Right Hand | Bright, Uncoated | 1/2" | - | Non-Coolant Through | €131.83 |
