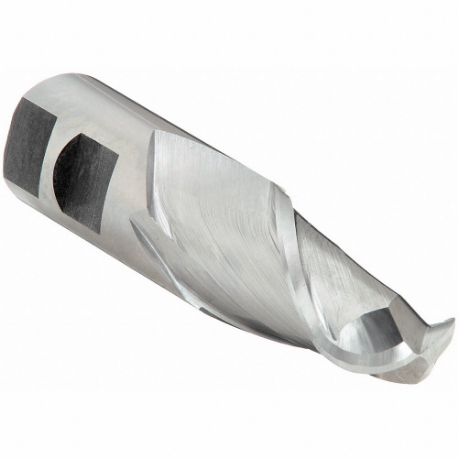

CLEVELAND C32736 0 Ball End Mill, 2 Flutes, 7/8 Inch Milling Dia, 1 7/8 Inch Length Of Cut
Item: CQ9DTQModel: C32736Cross Ref: 437Z53 / 0
7 In Stock
Ships within 2 days via
10.00% off
€156.90 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball End Mill |
| Cast Iron (k) Compatibility | No |
| Chip-breaker | No |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction | Right Hand |
| Cutting Length | 1 7/8" |
| Dimension Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Style | Ball Nose |
| End Type | Single End |
| Finish | Bright, Uncoated |
| Grade | General Purpose |
| Hardened Compatibility | No |
| Helix Angle | 30° |
| List Number | HGC-2B-TN |
| Material | Cobalt |
| Material Application | Carbon Steel, Alloy Steel, Stainless Steel, Aluminum |
| Material Grade - Machining | General Purpose |
| Milling Dia. | 7/8" |
| Neck Dia. | Not Applicable |
| Neck Length | Not Applicable |
| Non Ferrous (n) Compatibility | No |
| Number Of Flutes | 2 |
| Overall Length | 4.1" |
| Primary Material Application | Stainless Steel, Steel |
| Primary Material Application Iso Code | M, P |
| Shank Dia. | 7/8" |
| Shank Type | Weldon |
| Spiral Direction | Right Hand |
| Stainless (m) Compatibility | Yes |
| Steel (p) Compatibility | Yes |
| Super Alloy (s) Compatibility | Yes |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.59 |
| Ship length (cm) | 10.69 |
| Ship width (cm) | 2.59 |
| Country of Origin | US |
Product Variants
| Product | Model | Milling Dia. | Number Of Flutes | Shank Dia. | List Number | Overall Length | Finish | Cutting Direction | Coolant Fed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C32758 | 1" | 2 | 1" | HGC-2B-TC | 4.7" | TiCN | Right Hand | Non-Coolant Through | €248.83 | |
 |
C42657 | 1/2" | 2 | 1/2" | HGC-2B | 3 1/5" | Bright, Uncoated | Right Hand | Non-Coolant Through | €75.58 | |
 |
C32742 | 1/2" | 2 | 1/2" | HGC-2B-TN | 3.2" | - | Right | Non Coolant Through | - | RFQ
|
|
C32754 | 1/2" | 2 | 1/2" | HGC-2B-TC | 3 1/5" | - | Right Hand | Non-Coolant Through | €78.21 | |
 |
C42648 | 1/4" | 2 | 3/8" | HGC-2B | 2 2/5" | Bright, Uncoated | Right Hand | Non-Coolant Through | €47.82 | |
|
C42643 | 1/8" | 2 | 3/8" | HGC-2B | 2.3" | Bright, Uncoated | Right Hand | Non-Coolant Through | €49.40 | |
 |
C32749 | 1/8" | 2 | 3/8" | HGC-2B-TC | 2.3" | - | Right Hand | Non-Coolant Through | €49.93 |
