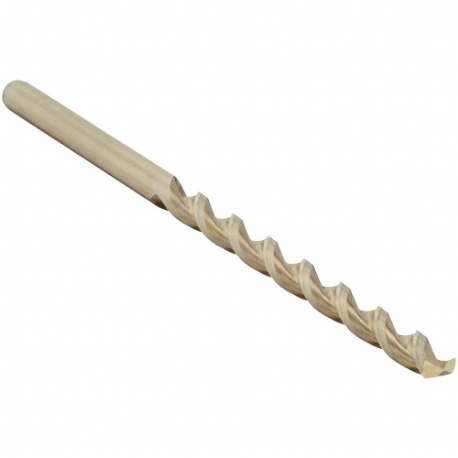

CLEVELAND C16784 2575 Taper Length Drill Bit, 3/16 Inch Drill Bit Size, 3/16 Inch Shank Dia, M42
Item: CQ9ZDMModel: C16784Cross Ref: 53FP78 / 2575
7 In Stock
Ships within 2 days via
10.00% off
€50.61 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Taper Length Drill Bit |
| Application | For Stainless Steel, Tool Steel, High Carbon Steel, Medium Carbon Steel, Low Carbon Steel, Cast Iron, Aluminum, Brass, Plastic, Nickel Alloy |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1875 |
| Depth X Dia. Ratio | 10xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Material | Cobalt Steel |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 3/16" |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Taper Length |
| Drill Point Length | 0.0388" |
| Finish | Straw, Bronze |
| Finish - Machining | Straw, Bronze |
| Flute Length | 3 3/8" |
| Flute Type | Spiral |
| Grade | High Performance |
| Helix Angle | 35°, 45° |
| List Number | 2575 |
| Material | Cobalt |
| Material - Machining | Cobalt |
| Material Grade - Machining | Grade M42 |
| Max. Drilling Depth | 3 3/8" |
| Number Of Flutes | 2 |
| Overall Length | 5 3/4" |
| Point Angle | 135° |
| Point Type | Split Point |
| Primary Material Application | Aluminum, Brass, Bronze, Copper |
| Primary Material Application Iso Code | N |
| Shank Dia. | 3/16" |
| Shank Length | 2 3/8" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Size | 0.188" |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 15.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Flute Type | Decimal Equivalent | Flute Length | Overall Length | Coolant Fed | Shank Dia. | Drill Bit Size | Drill Bit Point Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D45381 | - | - | - | - | - | - | - | - | €52.48 | |
|
D45376 | - | - | - | - | - | - | - | - | €321.15 | |
|
D45377 | - | - | - | - | - | - | - | - | €149.20 | |
|
D45379 | - | - | - | - | - | - | - | - | €176.63 | |
|
D45380 | - | - | - | - | - | - | - | - | €147.08 | |
 |
C09202 | Helical | 0.228 | 3 3/4" | 6 1/8" | Non Coolant Through | 7/32" | #1 | 118° | - | RFQ
|
 |
C08733 | Spiral | 0.228 | 3 3/4" | 6 1/8" | Non-Coolant Through | 7/32" | #1 | 118° | €25.25 |
