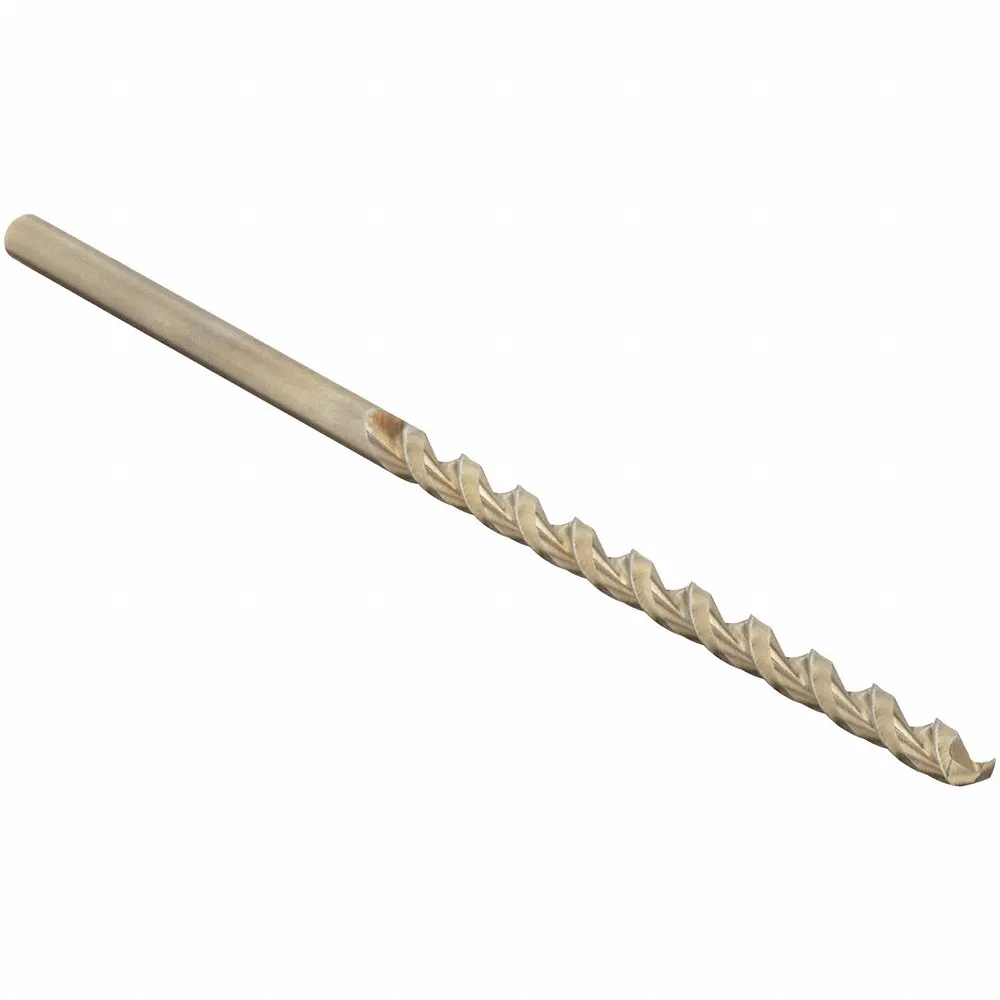

CLEVELAND C16732 Taper Length Drill Bit, #9 Drill Bit Size, 3 5/8 Inch Flute Length, 3/16 Inch Shank Dia
Get it by Tuesday, Dec 23
€35.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right |
| Decimal Equivalent | 0.196 |
| Depthdia. Ratio | 10xd |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #9 |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Taper Length |
| Drill Point Length | 0.0406" |
| Finish - Machining | Straw, Bronze |
| Flute Length | 3 5/8" |
| Flute Type | Parabolic |
| Helix Angle | 35°, 45° |
| Material - Machining | Cobalt |
| Material Grade - Machining | Grade M42 |
| Maximum Drilling Depth | 3 5/8" |
| Measurement System | Wire |
| Number Of Flutes | 2 |
| Overall Length | 6" |
| Primary Material Application | Aluminum, Brass, Bronze, Copper |
| Primary Material Application Iso Code | N |
| Shank Diameter | 3/16" |
| Shank Length | 2 3/8" |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship length (cm) | 15.24 |
| Country of Origin | US |
