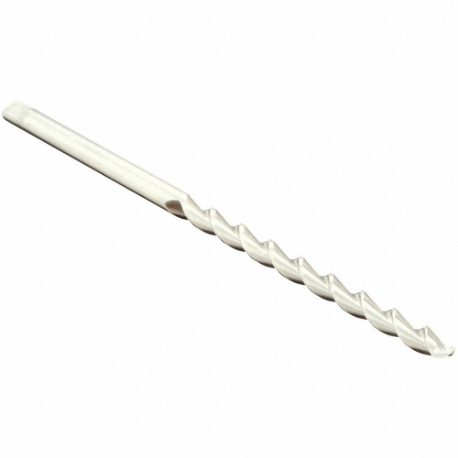

CLEVELAND C16248 2565 Taper Length Drill Bit, #29 Drill Bit Size, 1/8 Inch Shank Dia, Right Hand
Item: CQ9YTGModel: C16248Cross Ref: 439R98 / 2565
7 In Stock
Ships within 2 days via
10.00% off
€25.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Taper Length Drill Bit |
| Application | For Stainless Steel, Tool Steel, High Carbon Steel, Medium Carbon Steel, Low Carbon Steel, Cast Iron, Aluminum, Brass, Plastic, Nickel Alloy |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.136 |
| Depth X Dia. Ratio | 8xd |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Notched Point |
| Drill Bit Size | #29 |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Taper Length |
| Drill Point Length | 0.0409" |
| Finish | Bright, Uncoated |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 3" |
| Flute Type | Parabolic |
| Grade | General Purpose |
| Helix Angle | 35°, 45° |
| List Number | 2565 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Max. Drilling Depth | 3" |
| Number Of Flutes | 2 |
| Overall Length | 5 3/8" |
| Point Angle | 118° |
| Point Type | Notched Point |
| Primary Material Application | Aluminum, Brass, Bronze, Copper |
| Primary Material Application Iso Code | N |
| Secondary Material Application | Alloy Steel, Carbon Steel, Stainless Steel |
| Secondary Material Application Iso Code | M, P |
| Shank Dia. | 1/8" |
| Shank Length | 2 3/8" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Size | #29 |
| Sizes Included | #29 |
| Spiral Direction | Right Hand |
| System Of Measurement | Wire |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 14 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Flute Type | Decimal Equivalent | Flute Length | Overall Length | Coolant Fed | Shank Dia. | Drill Bit Size | Drill Bit Point Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D45381 | - | - | - | - | - | - | - | - | €52.48 | |
|
D45376 | - | - | - | - | - | - | - | - | €321.15 | |
|
D45377 | - | - | - | - | - | - | - | - | €149.20 | |
|
D45379 | - | - | - | - | - | - | - | - | €176.63 | |
|
D45380 | - | - | - | - | - | - | - | - | €147.08 | |
 |
C09202 | Helical | 0.228 | 3 3/4" | 6 1/8" | Non Coolant Through | 7/32" | #1 | 118° | - | RFQ
|
 |
C08733 | Spiral | 0.228 | 3 3/4" | 6 1/8" | Non-Coolant Through | 7/32" | #1 | 118° | €25.25 |
