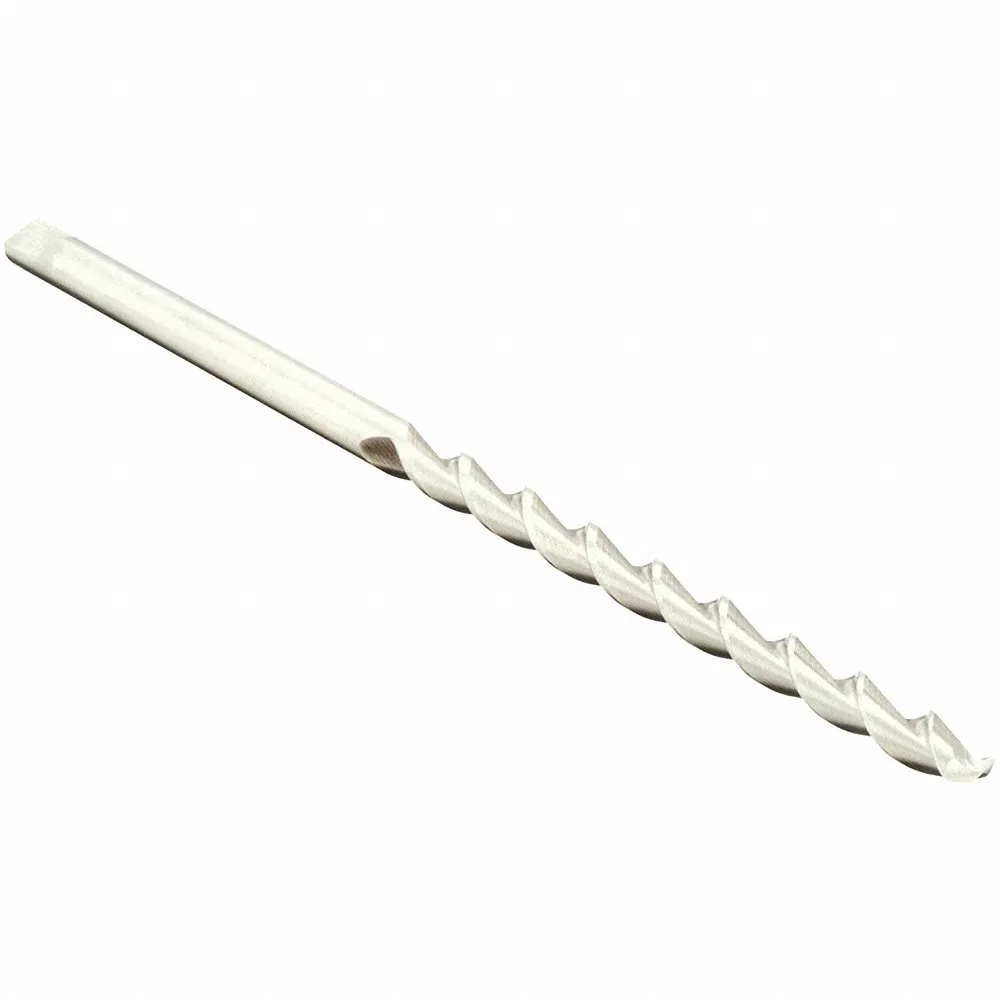

CLEVELAND C16239 Taper Length Drill Bit, #20 Drill Bit Size, 3 3/8 Inch Flute Length, 5/32 Inch Shank Dia
Item: CX7JKVModel: C16239Cross Ref: 439R94
7 In Stock
Ships within 2 days via
10.00% off
€30.41 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Application | For Stainless Steel, Tool Steel, High Carbon Steel, Medium Carbon Steel, Low Carbon Steel, Cast Iron, Aluminum, Brass, Plastic, Nickel Alloy |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.161 |
| Depthdia. Ratio | 8xd |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Notched Point |
| Drill Bit Size | #20 |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Taper Length |
| Drill Point Length | 0.0484" |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 3 3/8" |
| Flute Type | Parabolic |
| Grade | General Purpose |
| Helix Angle | 35°, 45° |
| List Number | 2565 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Maximum Drilling Depth | 3 3/8" |
| Measurement System | Wire |
| Number Of Flutes | 2 |
| Overall Length | 5 3/4" |
| Primary Material Application | Aluminum, Brass, Bronze, Copper |
| Primary Material Application Iso Code | N |
| Secondary Material Application | Alloy Steel, Carbon Steel, Stainless Steel |
| Secondary Material Application Iso Code | M, P |
| Shank Dia. | 5/32" |
| Shank Length | 2 3/8" |
| Shank Type - Machining | Straight |
| Sizes Included | #20 |
| Spiral Direction | Right Hand |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 14.61 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
