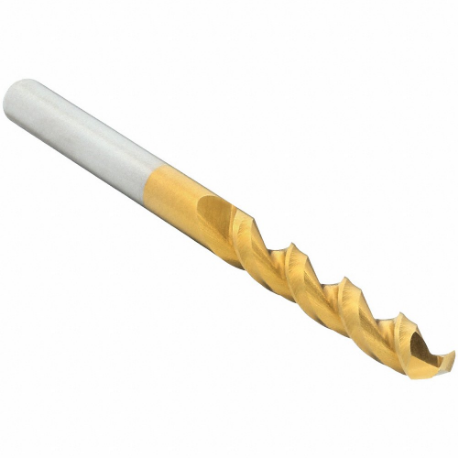

CLEVELAND C14331 2175 Screw Machine Drill Bit, 7/32 Inch Size, 1 1/4 Inch Flute Length
Item: CQ9QBNModel: C14331Cross Ref: 439P45 / 2175
7 In Stock
Ships within 2 days via
10.00% off
€31.30 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Screw Machine Drill Bit |
| Application | For Stainless Steel, Tool Steel, High Carbon Steel, Medium Carbon Steel, Low Carbon Steel, Cast Iron, Aluminum, Brass, Plastic, Nickel Alloy |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Depth X Dia. Ratio | 10xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 7/32" |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.0453" |
| Finish | Tin |
| Finish - Machining | Tin |
| Flute Length | 1 1/4" |
| Flute Type | Parabolic |
| Grade | High Performance |
| Helix Angle | 40° |
| Material | Cobalt |
| Material - Machining | Cobalt |
| Material Grade - Machining | Grade M42 |
| Max. Drilling Depth | 1 1/4" |
| No. Of Pieces | 0 |
| Number Of Flutes | 2 |
| Overall Length | 2 3/8" |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Shank Dia. | 0.219" |
| Shank Diameter | 7/32" |
| Shank Length | 1 1/8" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.59 |
| Ship length (cm) | 8.71 |
| Ship width (cm) | 2.59 |
| Country of Origin | US |
Product Variants
| Product | Model | Coolant Fed | Flute Length | Overall Length | Cutting Direction | Flute Type | Shank Dia. | Drill Bit Size | Decimal Equivalent | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

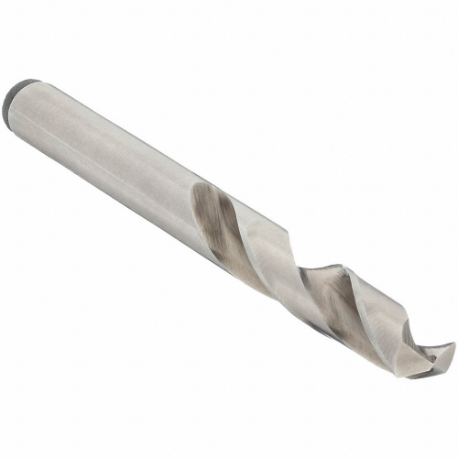

C14634 | Non-Coolant Through | 1 5/16" | 2 7/16" | Right Hand | Spiral | 0.234" | #1 | 0.228 | €12.78 | |
 |

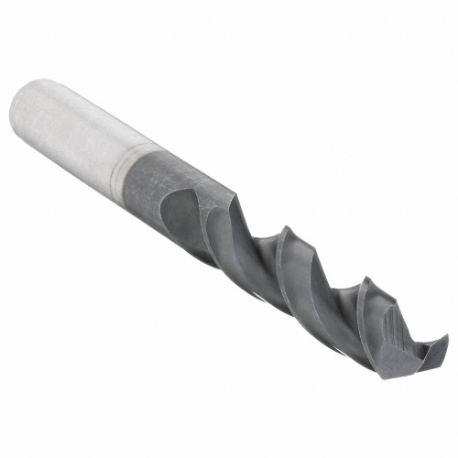

C15091 | Non-Coolant Through | 1 5/16" | 2 7/16" | Right Hand | Parabolic | 0.234" | #1 | 0.228 | €36.39 | |
 |

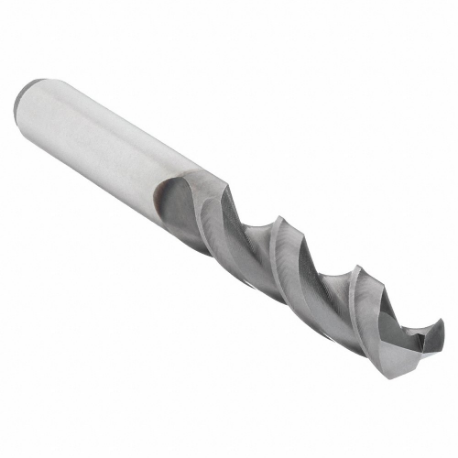

C15291 | Non-Coolant Through | 1 5/16" | 2 7/16" | Right Hand | Parabolic | 0.234" | #1 | 0.228 | €39.80 | |
|
C14362 | Non-Coolant Through | 1 5/16" | 2 7/16" | Right Hand | Parabolic | 0.234" | #1 | 0.228 | €33.95 | |
 |

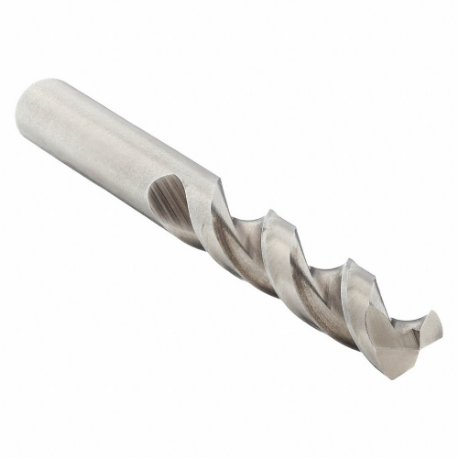

C14250 | Non-Coolant Through | 1 3/16" | 2 1/4" | Right Hand | Parabolic | 0.188" | #10 | 0.1935 | €24.51 | |
|
C14371 | Non-Coolant Through | 1 3/16" | 2 1/4" | Right Hand | Parabolic | 0.188" | #10 | 0.1935 | €29.57 | |
|
C15300 | Non-Coolant Through | 1 3/16" | 2 1/4" | Right Hand | Parabolic | 0.188" | #10 | 0.1935 | €33.47 |
