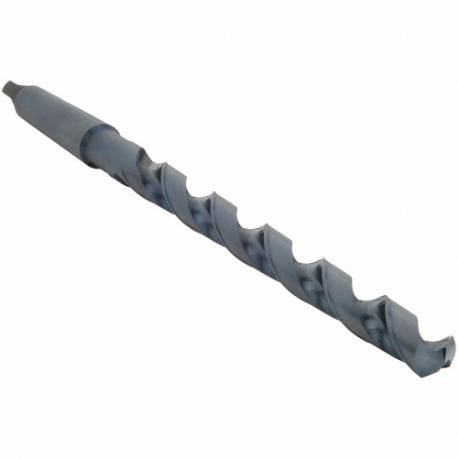

CLEVELAND C13844 940 Taper Shank Drill Bit, 45/64 Inch Drill Bit Size, 8 Inch Flute Length, Mt2 Taper Shank
Get it by Tuesday, Dec 23
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Drill Bit |
| Coolant Fed | Non Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.7031 |
| Depth X Dia. Ratio | 4xd |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Steam Oxide |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Notched Point |
| Drill Bit Size | 45/64" |
| Drill Diameter Tolerance | -0.0012" to 0" |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 8" |
| Flute Type | Spiral |
| Grade | Heavy-Duty , High Performance |
| Helix Angle | +35° to +45° |
| List Number | 940E |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | HIGH PERFORMANCE |
| Max. Drilling Depth | 8" |
| Number Of Flutes | 2 |
| Overall Length | 12" |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Secondary Material Application | Cast Iron |
| Secondary Material Application Iso Code | K |
| Shank Type | Taper |
| Shank Type - Machining | Taper |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch |
| Taper Shank Size | MT2 |
Shipping Info:
| Ship weight (kg) | 0.39 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 30.99 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Decimal Equivalent | Overall Length | Drill Bit Size | Max. Drilling Depth | Price | |
|---|---|---|---|---|---|---|
| C12257 | 1.0625 | 11 1/4" | 1 1/16" | 6 5/8" | €283.74 | |
| C12254 | 1.0039 | 11 1/8" | 1 1/32" | 6 1/2" | €284.34 | |
| C12532 | 1.25 | 12 1/2" | 1 1/4" | 7 7/8" | €553.57 | |
| C12279 | 1.25 | 13 1/2" | 1 1/4" | 7 7/8" | €431.93 | |
| C12252 | 1.0156 | 11 1/8" | 1 1/64" | 6 1/2" | €290.97 | |
| C12518 | 1.125 | 11 3/4" | 1 1/8" | 7 1/8" | €455.34 | |
| C12265 | 1.125 | 12 3/4" | 1 1/8" | 7 1/8" | €358.31 |
