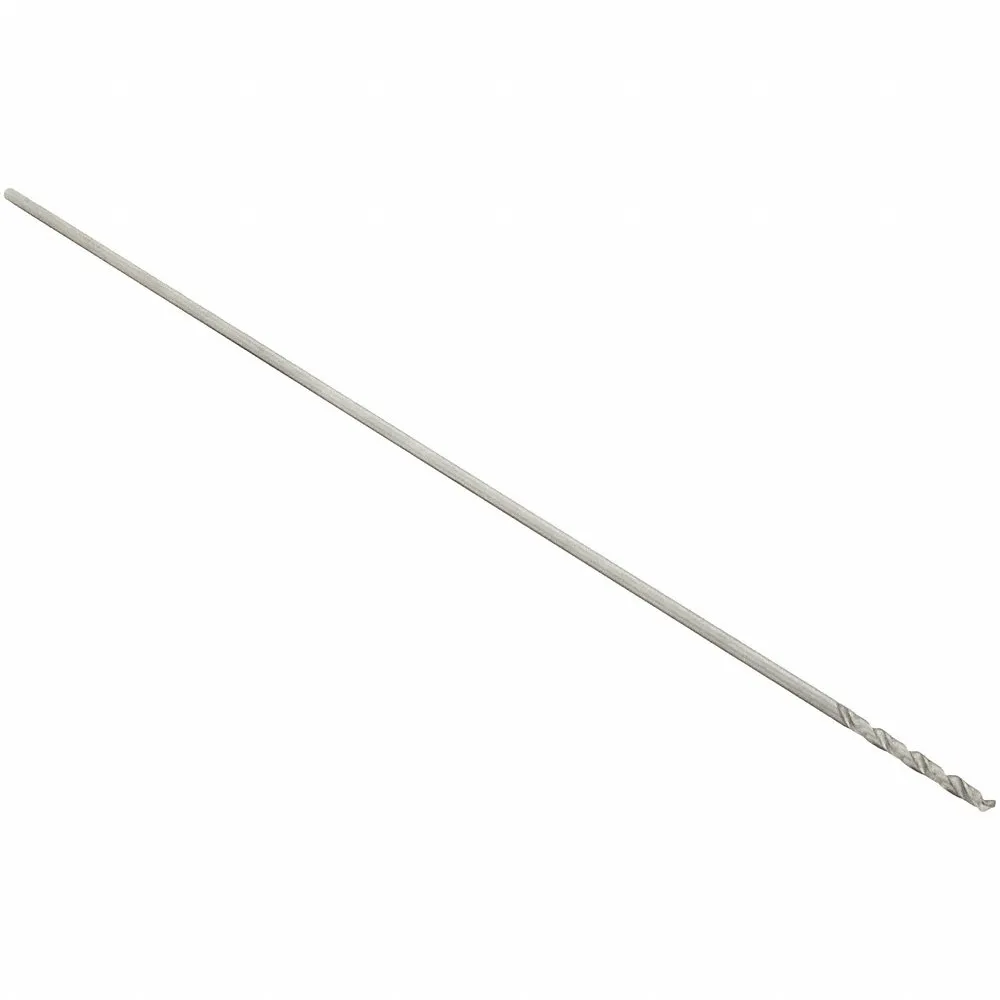

CLEVELAND C13240 Extra Long Drill Bit, #29 Drill Bit Size, 1 3/4 Inch Flute Length, 1/8 Inch Shank Dia
Item: CX7JHDModel: C13240Cross Ref: 1NPB9
7 In Stock
Ships within 2 days via
5.00% off
€24.33 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Aircraft Drill | Yes |
| Application | For Alloy Steel, Carbon Steel And Cast Iron |
| Coolant Fed | Non Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.136 |
| Depth Dia. Ratio | 4Xd |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Bright |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #29 |
| Drill Dia. Tolerance | -0" to +0.0007" |
| Drill Length Class | Extra Long |
| Drill Point Length | 0.0282" |
| Finish-machining | Bright (Uncoated) |
| Flute Length | 1 3/4" |
| Flute Type | Spiral |
| Grade | Heavy Duty , High Performance |
| Helix Angle | +21° to +34° |
| List Number | 3957 |
| Material | High Speed Steel |
| Material Grade-machining | HIGH PERFORMANCE |
| Material-machining | High Speed Steel |
| Max. Drilling Depth | 17/32" |
| Measurement System | Wire |
| No. Of Flutes | 2 |
| No. Of Pieces | 1 |
| Overall Length | 12" |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Steel |
| Primary Material Application Iso Code | N, P |
| Secondary Material Application | Cast Iron, Stainless Steel |
| Secondary Material Application Iso Code | K, M |
| Shank Dia. | 1/8" |
| Shank Length | 11/4" |
| Shank Type-machining | Straight |
| Size | #29 |
| Spiral Direction | Right Hand |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
