CLEVELAND C13232 3957 Extra Long Drill Bit, #19 Size, 2 1/8 Inch Flute Length, 5/32 Inch Shank Dia
Item: CQ9HBXModel: C13232Cross Ref: 407G51 / 3957
7 In Stock
Ships within 2 days via
10.00% off
€25.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Extra Long Drill Bit |
| Aircraft Drill | Yes |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.166 |
| Depth X Dia. Ratio | 10xd |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #19 |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Extra Long |
| Drill Point Length | 0.0344" |
| Finish | Bright, Uncoated |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 2 1/8" |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Helix Angle | 28° |
| Left/right Hand | Right |
| List Number | 3957-12 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | HIGH PERFORMANCE |
| Max. Drilling Depth | 2 1/8" |
| Number Of Flutes | 2 |
| Overall Length | 12" |
| Point Angle | 135° |
| Point Type | Split Point |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Steel |
| Primary Material Application Iso Code | N, P |
| Secondary Material Application | Cast Iron, Stainless Steel |
| Secondary Material Application Iso Code | K, M |
| Shank Dia. | 5/32" |
| Shank Length | 9 7/8" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Size | #19 |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
| System Of Measurement | Wire |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 35.99 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Decimal Equivalent | Shank Dia. | Flute Length | Overall Length | Max. Drilling Depth | Finish | Drill Bit Size | Drill Bit Point Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

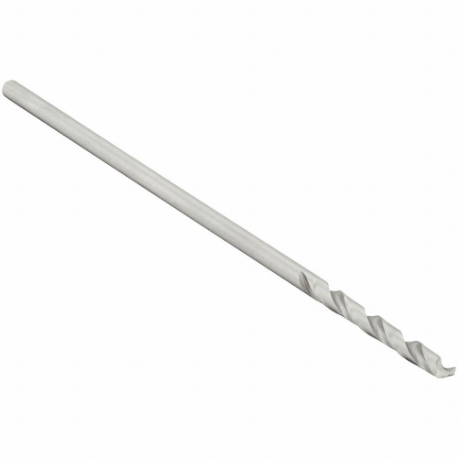

C13123 | 0.228 | 7/32" | 2 5/8" | 6" | - | Bright, Uncoated | #1 | 135° | €13.13 | |
|
C13218 | 0.228 | 7/32" | 2 5/8" | 12" | 2 5/8" | Bright, Uncoated | #1 | 135° | €32.41 | |
 |

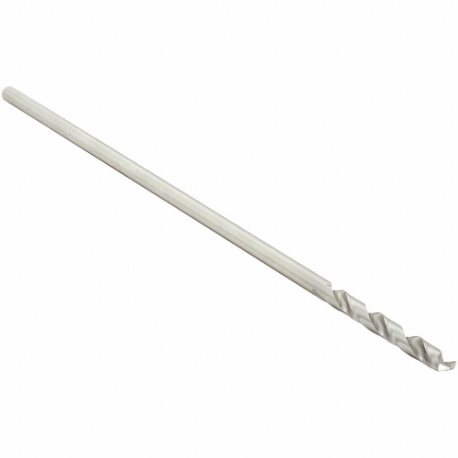

C13226 | 0.1935 | 3/16" | 2 7/16" | 12" | 49/64" | Bright, Uncoated | #10 | 135° | €25.40 | |
|
C13227 | 0.191 | 3/16" | 2 5/16" | 12" | 2 5/16" | Bright, Uncoated | #11 | 135° | €27.03 | |
|
C13134 | 0.189 | 3/16" | 2 5/16" | 6" | 2.312" | Bright, Uncoated | #12 | 135° | €10.85 | |
|
C13228 | 0.189 | 3/16" | 2 5/16" | 12" | 2 5/16" | Bright, Uncoated | #12 | 135° | €28.27 | |
|
C13229 | 0.185 | 11/64" | 2 5/16" | 12" | 2.312" | Bright, Uncoated | #13 | 135° | €25.65 |
