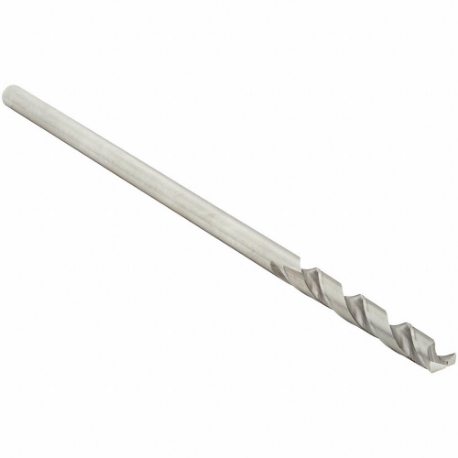

CLEVELAND C13192 3957 Extra Long Drill Bit, 5/16 Inch Drill Bit Size, 5/16 Inch Shank Dia
Item: CQ9HJFModel: C13192Cross Ref: 1NPA7 / 3957
7 In Stock
Ships within 2 days via
10.00% off
€38.85 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Extra Long Drill Bit |
| Aircraft Drill | Yes |
| Application | For Alloy Steel, Carbon Steel And Cast Iron |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.3125 |
| Depthdia. Ratio | 4Xd |
| Dimension Type | Fractional Inch |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 5/16" |
| Drill Diameter Tolerance | -0.001" to 0" |
| Drill Length Class | Extra Long |
| Drill Point Length | 0.0647" |
| Finish | Bright, Uncoated |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 3 3/16" |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Helix Angle | +21° to +34° |
| List Number | 3957 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | HIGH PERFORMANCE |
| Max. Drilling Depth | 1 1/4" |
| No. Of Pieces | 1 |
| Number Of Flutes | 2 |
| Overall Length | 12" |
| Point Angle | 135° |
| Point Type | Split Point |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Steel |
| Primary Material Application Iso Code | N, P |
| Secondary Material Application | Cast Iron, Stainless Steel |
| Secondary Material Application Iso Code | K, M |
| Shank Dia. | 5/16" |
| Shank Length | 8 13/16" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Size | 0.312" |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 30.99 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Decimal Equivalent | Shank Dia. | Flute Length | Overall Length | Max. Drilling Depth | Finish | Drill Bit Size | Drill Bit Point Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C13123 | 0.228 | 7/32" | 2 5/8" | 6" | - | Bright, Uncoated | #1 | 135° | €13.13 | |
 |
C13218 | 0.228 | 7/32" | 2 5/8" | 12" | 2 5/8" | Bright, Uncoated | #1 | 135° | €32.41 | |
 |
C13226 | 0.1935 | 3/16" | 2 7/16" | 12" | 49/64" | Bright, Uncoated | #10 | 135° | €25.40 | |
|
C13227 | 0.191 | 3/16" | 2 5/16" | 12" | 2 5/16" | Bright, Uncoated | #11 | 135° | €27.03 | |
|
C13134 | 0.189 | 3/16" | 2 5/16" | 6" | 2.312" | Bright, Uncoated | #12 | 135° | €10.85 | |
|
C13228 | 0.189 | 3/16" | 2 5/16" | 12" | 2 5/16" | Bright, Uncoated | #12 | 135° | €28.27 | |
|
C13229 | 0.185 | 11/64" | 2 5/16" | 12" | 2.312" | Bright, Uncoated | #13 | 135° | €25.65 |
