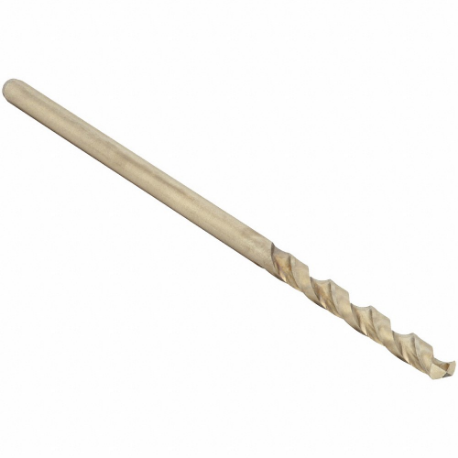

CLEVELAND C08142 3722 Extra Long Drill Bit, #30 Size, 1 5/8 Inch Flute Length, 1/8 Inch Shank Dia
Item: CQ9HDHModel: C08142Cross Ref: 407F69 / 3722
7 In Stock
Ships within 2 days via
10.00% off
€14.75 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Extra Long Drill Bit |
| Aircraft Drill | Yes |
| Coolant Fed | Non Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1285 |
| Depth X Dia. Ratio | 10xd |
| Drill Bit Dimension Type | Wire |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #30 |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Extra Long |
| Drill Point Length | 0.0266" |
| Finish | Straw, Bronze |
| Finish - Machining | Straw, Bronze |
| Flute Length | 1 5/8" |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Helix Angle | 28° |
| Left/right Hand | Right |
| List Number | 3722-6 |
| Material | Cobalt |
| Material - Machining | Cobalt |
| Material Grade - Machining | Grade M42 |
| Max. Drilling Depth | 1 5/8" |
| Measurement System | Wire |
| Number Of Flutes | 2 |
| Overall Length | 6" |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Stainless Steel, Steel |
| Primary Material Application Iso Code | M, N, P |
| Secondary Material Application | Cast Iron, Nickel, Stainless Steel, Titanium |
| Secondary Material Application Iso Code | K, M, S |
| Shank Dia. | 1/8" |
| Shank Length | 4 3/8" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 16 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Drill Bit Size | Decimal Equivalent | Max. Drilling Depth | Overall Length | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|
| C08165 | #1 | 0.228 | 2 5/8" | 6" | 7/32" | €20.43 | |

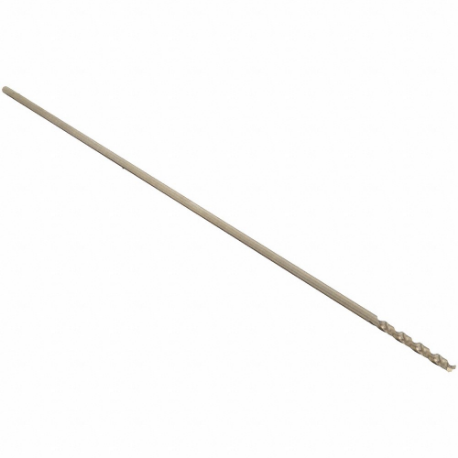

| C08182 | #10 | 0.1935 | 2.438" | 12" | 3/16" | €38.09 | |
| C08132 | #10 | 0.1935 | 2 7/16" | 6" | 3/16" | €24.13 | |
| C08181 | #11 | 0.191 | 2 5/16" | 6" | 3/16" | €38.09 | |
| C08133 | #11 | 0.191 | 2 5/16" | 6" | 3/16" | €23.65 | |
| C08156 | #12 | 0.189 | 2.312" | 6" | 3/16" | €15.50 | |
| C08134 | #13 | 0.185 | 2.312" | 6" | 11/64" | €23.47 |
