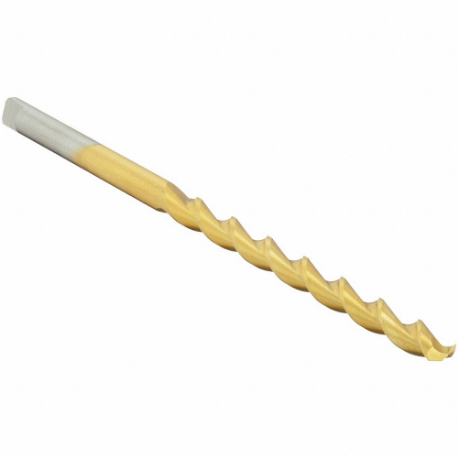

CLEVELAND C05201 2565 Taper Length Drill Bit, 13/32 Inch Drill Bit Size, 13/32 Inch Shank Dia
Item: CQ9ZAEModel: C05201Cross Ref: 439D07 / 2565
7 In Stock
Ships within 2 days via
10.00% off
€67.32 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Taper Length Drill Bit |
| Application | For Metalworking |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.4062 |
| Depthdia. Ratio | 8xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Notched Point |
| Drill Bit Size | 13/32" |
| Drill Diameter Tolerance | -0.001" to 0" |
| Drill Length Class | Taper Length |
| Drill Point Length | 0.122" |
| Finish | Tin |
| Finish - Machining | Tin |
| Flute Length | 4 3/8" |
| Flute Type | Parabolic |
| Grade | General Purpose |
| Helix Angle | 35°, 45° |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Max. Drilling Depth | 4 3/8" |
| Number Of Flutes | 2 |
| Overall Length | 7" |
| Point Angle | 118° |
| Point Type | Notched Point |
| Primary Material Application | Stainless Steel, Steel |
| Primary Material Application Iso Code | M, P |
| Shank Dia. | 13/32" |
| Shank Length | 2 5/8" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Size | 0.406" |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 18.29 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Flute Type | Decimal Equivalent | Flute Length | Overall Length | Coolant Fed | Shank Dia. | Drill Bit Size | Drill Bit Point Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D45381 | - | - | - | - | - | - | - | - | €52.48 | |
|
D45376 | - | - | - | - | - | - | - | - | €321.15 | |
|
D45377 | - | - | - | - | - | - | - | - | €149.20 | |
|
D45379 | - | - | - | - | - | - | - | - | €176.63 | |
|
D45380 | - | - | - | - | - | - | - | - | €147.08 | |
 |
C09202 | Helical | 0.228 | 3 3/4" | 6 1/8" | Non Coolant Through | 7/32" | #1 | 118° | - | RFQ
|
 |
C08733 | Spiral | 0.228 | 3 3/4" | 6 1/8" | Non-Coolant Through | 7/32" | #1 | 118° | €25.25 |
