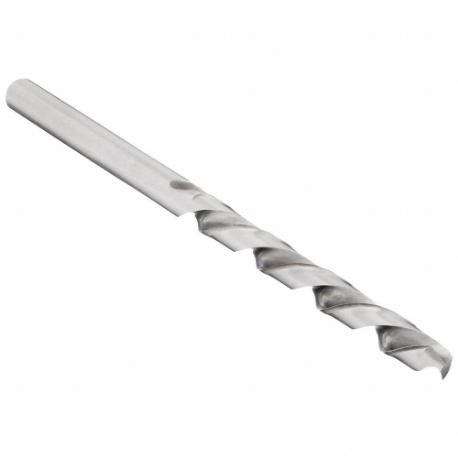

CLEVELAND C01484 2006 Jobber Length Drill Bit, Left Hand, 11/64 Inch Size Size
Item: CQ9MBXModel: C01484Cross Ref: 434T21 / 2006
7 In Stock
Ships within 2 days via
10.00% off
€13.58 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Length Drill Bit |
| Aircraft Drill | No |
| Application | Alloy-Tool Steel, Med Carbon Steel, Low Carbon Steel, Cast Iron |
| Coolant Fed | Non Coolant Through |
| Coolant Through | No |
| Cutting Direction | Left Hand |
| Decimal Equivalent | 0.1719 |
| Depth X Dia. Ratio | 4xd |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 11/64" |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0516" |
| Finish | Bright, Uncoated |
| Finish - Machining | Bright (Uncoated) |
| Flute Type | Spiral |
| Grade | High Performance |
| Helix Angle | +21° to +34° |
| Left/right Hand | Left |
| List Number | 2006 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | HIGH PERFORMANCE |
| Max. Drilling Depth | 0.688" |
| Maximum Drilling Depth | 11/16" |
| Number Of Flutes | 2 |
| Overall Length | 3 1/4" |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Primary Material Application Iso Code | K, N, P |
| Series | 2006 Series |
| Shank Dia. | 11/64" |
| Shank Length | 1 1/8" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Left Hand |
| System Of Measurement | Fractional Inch |
| Web Thinning | Thinned |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.99 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Drill Bit Size | Decimal Equivalent | Max. Drilling Depth | Overall Length | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|
| C01401 | 1/16" | 0.0625 | 21/32" | 1 7/8" | 1/16" | €11.23 | |

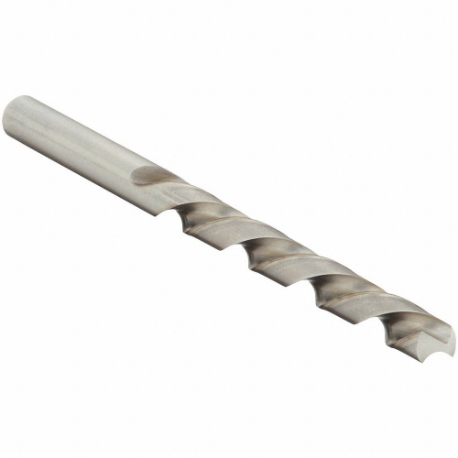

| C01532 | 1/4" | 0.25 | 2 1/16" | 4" | 1/4" | €24.69 | |
| C01453 | 1/8" | 0.125 | 1 7/32" | 2 3/4" | 1/8" | €11.30 | |
| C01600 | 13/32" | 0.4063 | 2 29/32" | 5 1/4" | 25/64" | €48.37 | |
| C01506 | 0.203" | 0.2031 | 1 13/16" | 3 5/8" | 0.203" | €19.28 | |
| C01538 | 17/64" | 0.2656 | 2 5/32" | 4 1/8" | 17/64" | €23.95 | |
| C01495 | 3/16" | 0.1875 | 3/4" | 3 1/2" | 3/16" | €15.67 |
