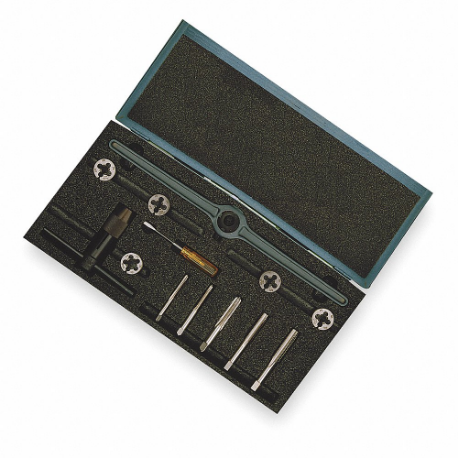

CLEVELAND C00518 Tap and Die Set, 13 Pieces, 1/4 Inch Size-20 Min. Tap Thread Size
Item: CQ9YQDModel: C00518Cross Ref: 4ALH0
7 In Stock
Ships within 2 days via
10.00% off
€666.37 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tap and Die Set |
| 55% Thread Drill Size | #3, 11.3 mm, 8.4 mm, I, W |
| 65% Thread Drill Size | #5, 11 mm, 17/64", P, V |
| 75% Thread Drill Size | #7, 27/64", 5/16", F, U |
| Case Type | Metal |
| Coolant Fed | Non-Coolant Through |
| Cutting Sizes | 5 |
| Die Finish | Bright Uncoated |
| Die Material | High Speed Steel |
| Die Material Grade | Carbon Steel |
| Die Shape | Round |
| Die Thread Sizes Included | 1/2"-13 NC, 1/4"-20 NC, 3/8"-16 NC, 5/16"-18 NC, 7/16"-14 NC |
| Die Type | Adjustable |
| Dimensional Standards | FRACTIONAL INCH |
| Dimensions Standard | Fractional Inch |
| Extended Neck | No |
| Extended Shank | No |
| Extension Tap | No |
| Features | General Purpose Applications |
| Finish | Mill |
| Fits Class | Class 2B |
| Helix Angle | 0° |
| Left/right Hand | Right Hand |
| Material | High Speed Steel |
| Max. Die Thread Size | 1/2"-13 |
| Max. Tap Thread Size | 1/2"-13 |
| Min. Tap Thread Size | 1/4"-20 |
| No. Of Pieces | 13 |
| Number Of Dies In Set | 5 |
| Number Of Flutes | 4 |
| Number Of Taps | 5 |
| Powdered Metal Base Material | No |
| Primary Material Application | All Materials |
| Primary Material Application Iso Code | H, K, M, N, P, S |
| Secondary Material Application | Stainless Steel |
| Secondary Material Application Iso Code | M |
| Spiral Direction | Neutral |
| System Of Measurement | Fractional Inch |
| Tap Chamfer | Plug |
| Tap Material | High Speed Steel |
| Tap Material Grade | Grade M2 |
| Tap Shank Standard | Table 302 |
| Tap Sizes Included | 1/2 In -13 NC, 1/4 In -20 NC, 3/8 In -16 NC, 5/16 In -18 NC, 7/16 In -14 NC |
| Tap Type | Hand Tap |
| Tap Wrench Number | T10 |
| Thread Direction | Right Hand |
| Thread Limit | H3 |
| Thread Standard | Coarse |
| Thread Type | UNC |
| Threads Per Inch | 13, 14, 16, 18, 20 |
Shipping Info:
| Ship weight (kg) | 1.98 |
| Ship height (cm) | 21.89 |
| Ship length (cm) | 38.3 |
| Ship width (cm) | 6.05 |
| Country of Origin | US |
Product Variants
| Product | Model | Die Material | Min. Tap Thread Size | Max. Die Thread Size | Max. Tap Thread Size | Die Shape | Number Of Pieces | Thread Type | Number Of Dies In Set | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

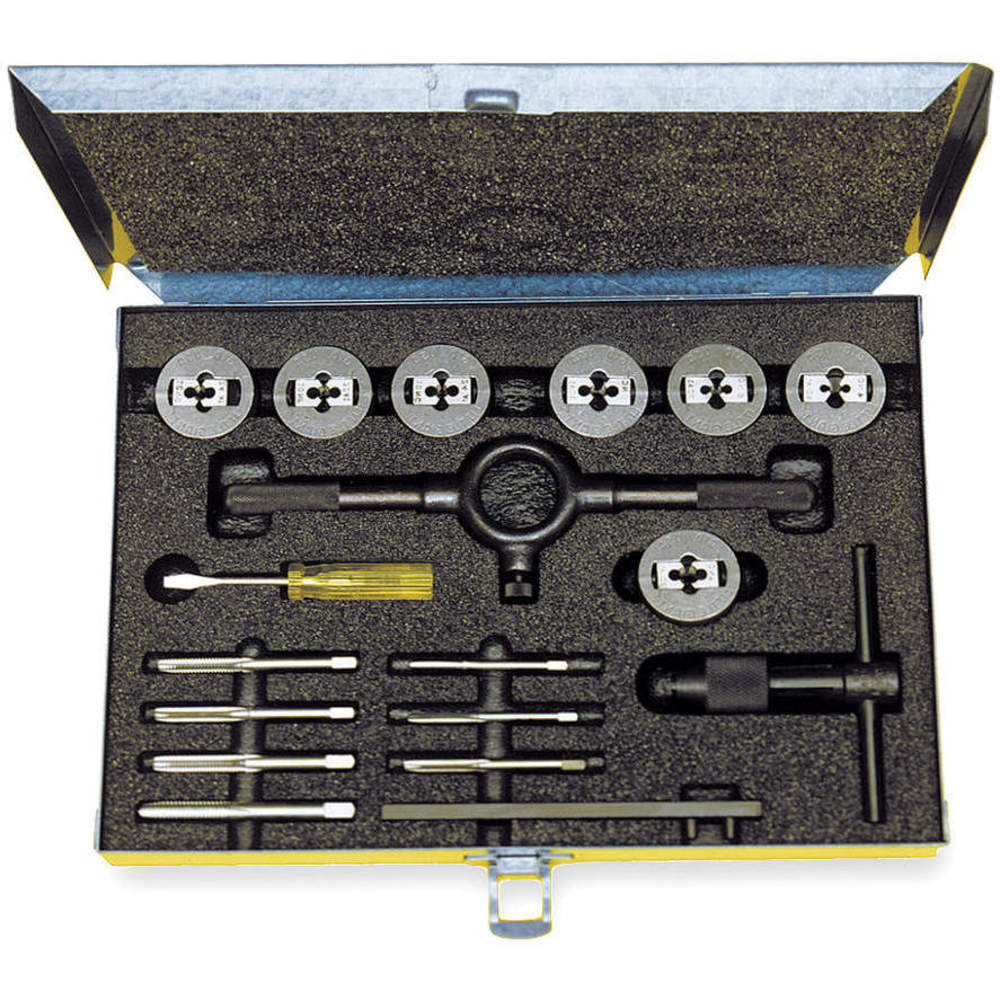

C00614 | Carbon Steel | M6 x 1 | M16 x 2 | M14 x 2 | Round | 16 | Metric | 6 | €3,117.63 | |
 |

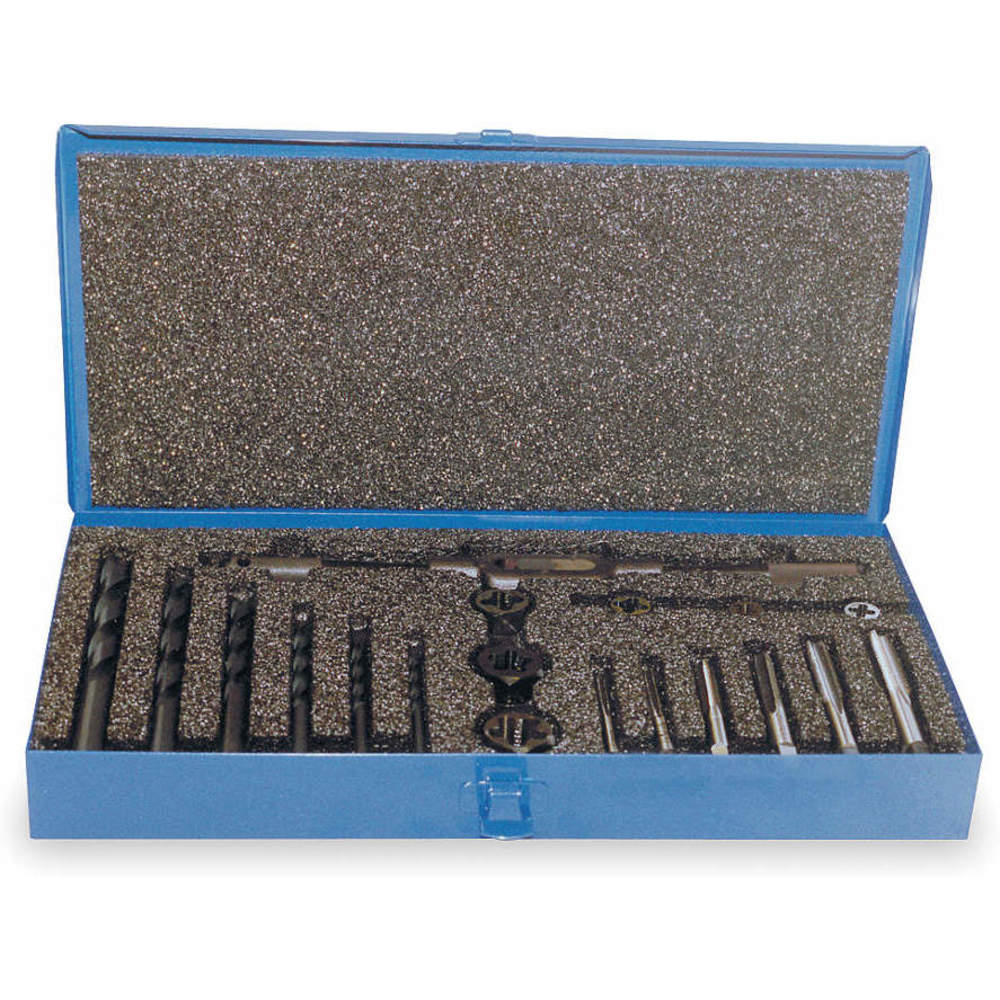

C00451 | High Speed Steel | M6 X 1 | M12 x 1.75 | 1 1/4" | Round | 17 | Metric Fine | 5 | €855.59 | |
 |

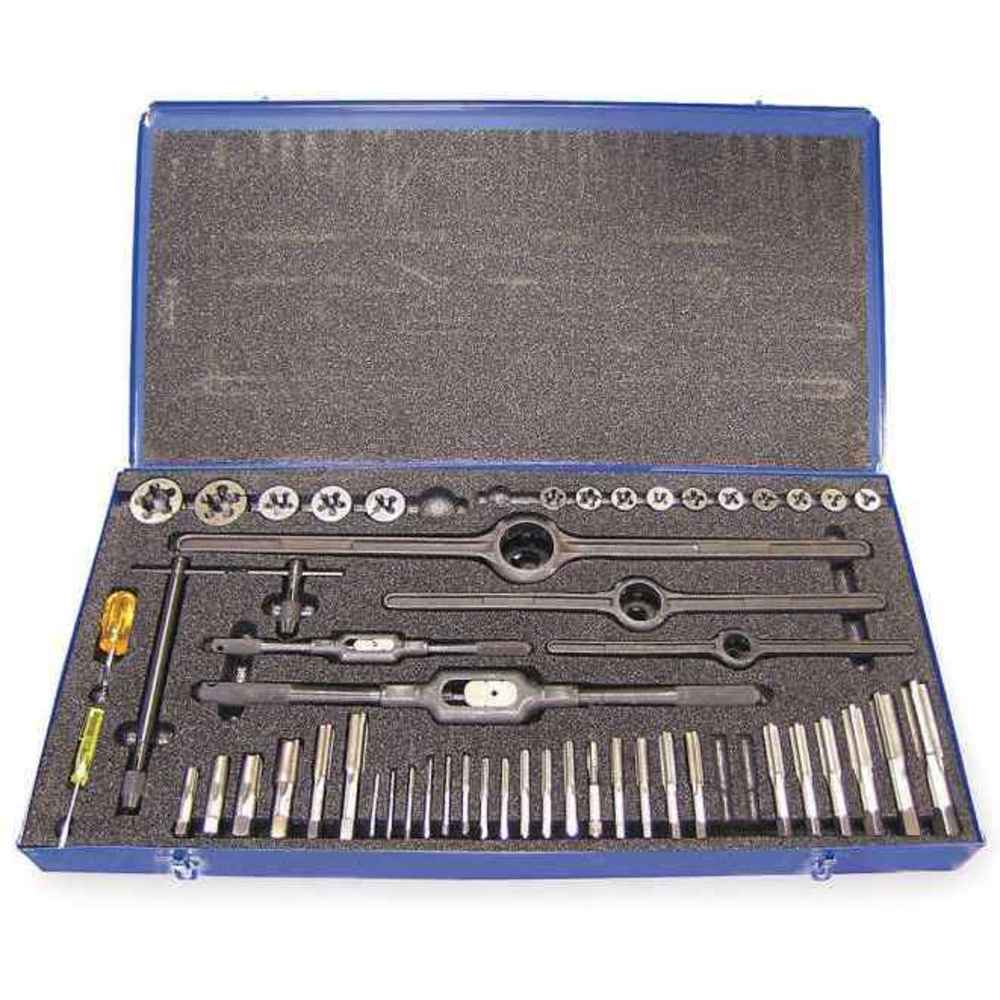

C00533 | Carbon Steel | 1/4"-20 | 1"-14 | 1"-14 | Round | 52 | NPT, UNC, UNF, UNS | 15 | €3,495.00 | |
 |

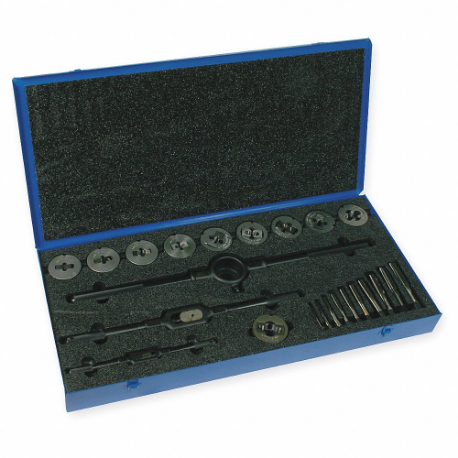

C00610 | High Speed Steel | 1/4"-20 | 1/2"-13 | 1/2"-13 | - | 13 | UNC | 8 | €1,941.36 | |
 |

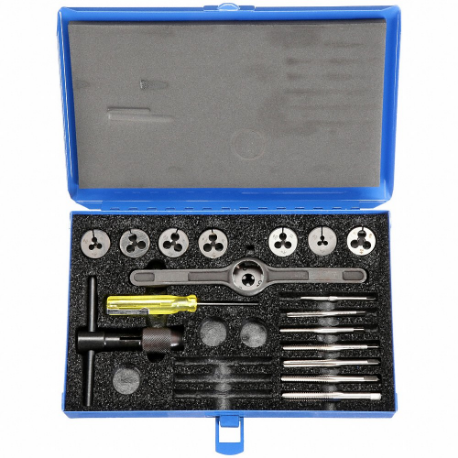

C00517 | High Speed Steel | #4-40 | 1/4"-20 | 1/4"-20 | Round | - | UNC, UNF | 7 | €881.64 | |
 |
C00609 | High Speed Steel | #4-40 | 1/4"-20 | 1/4"-20 | Round Fixed | 18 | UNC, UNF | 7 | €2,331.66 | |
 |

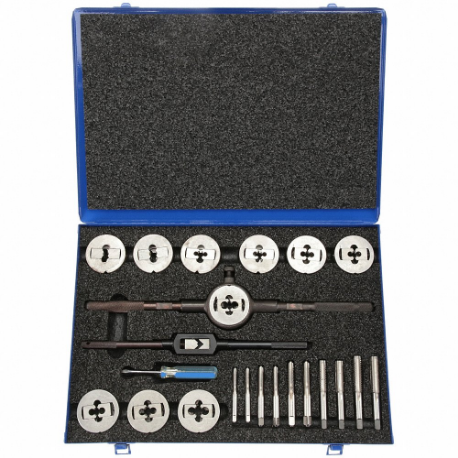

C00612 | High Speed Steel | 1/4"-20 | 1/2"-20 | - | - | 23 | UNC, UNF | 10 | €2,888.56 |
