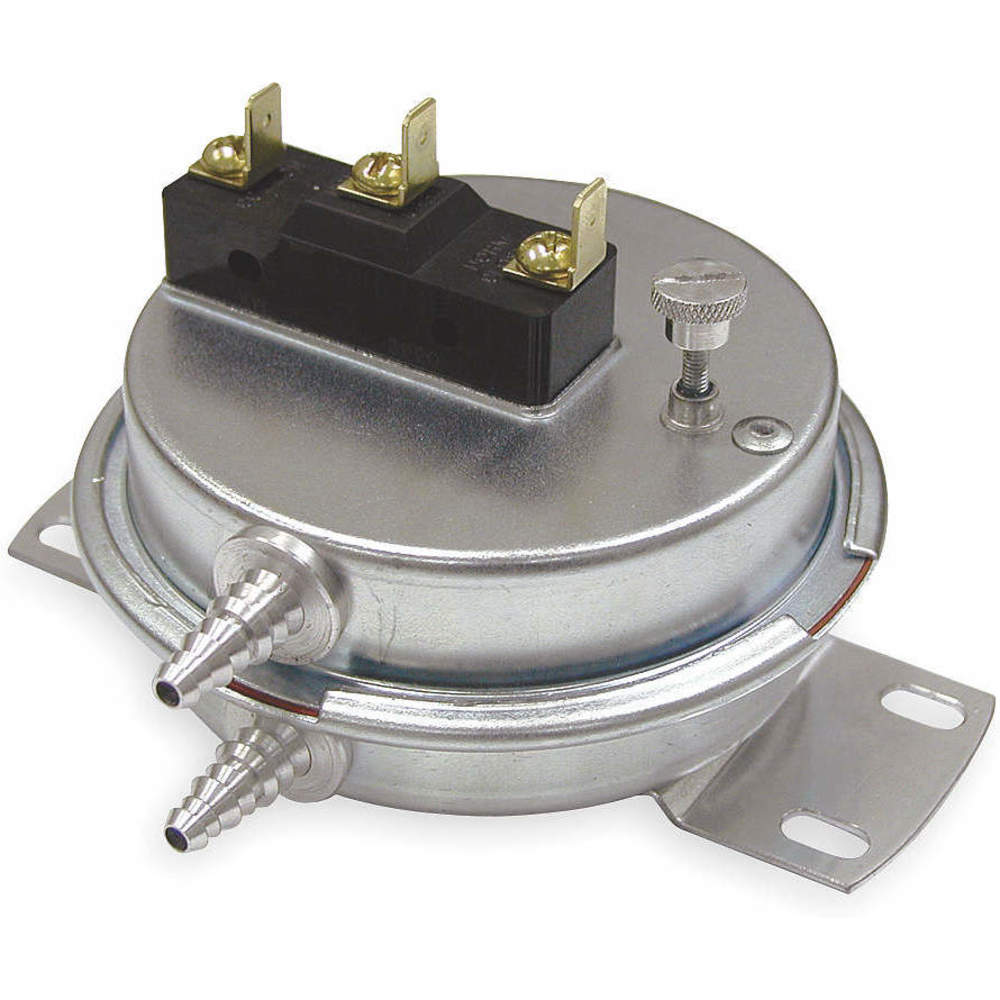

CLEVELAND CONTROLS RFS-4150 Switch Air Sensing
Item: AE2FGUModel: RFS-4150Cross Ref: 4XB70
7 In Stock
Ships within 2 days via
10.00% off
€58.57 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Sensing Switch |
| Contact Form | SPDT |
| Differential (in. Wc) | 0.02 to 0.3 |
| Differential Pressure | 0.02 in. wc to 0.3 in. wc |
| Electrical Connection Type | Hardwired |
| Electrical Rating | 300 VA Pilot Duty |
| For Pressure Type | Positive, Negative, Differential |
| Function | Senses Positive, Negative Or Differential Air Pressure Or When Extreme Low Temperature Or Pressure Is A Critical Factor |
| Height | 4 1/4" |
| Housing Material | Steel |
| Housing Type | Open Mounted |
| Max. Pressure Rating | 0.5 psi |
| Maximum Operating Temperature | 180°F |
| Minimum Operating Temperature | -40°F |
| Mounting Orientation | Vertical |
| Number Of Switches | 1 |
| Operating Temp. Range | -40°F to +180°F |
| Overall Depth | 2 3/4" |
| Overall Height | 4 1/4" |
| Overall Width | 3 3/4" |
| Pressure Set Point | 0.15 in. wc to 5 in. wc |
| Pressure Setpoint Type | Adjustable |
| Pressure Setting Range | 0.12 in. wc to 5 in. wc |
| Pressure Setting Range | 0.12 to 5.0 In. WC |
| Pressure Type | Differential, Negative |
| Product Datasheet | cleveland-controls-afs-145.pdf |
| Product Type | Air Pressure Switch |
| Reset Type | Automatic Reset |
| Sample Line Connection | 1/8" Barb, 1/4" Barb |
| Sample Line Connection Size | 1/8", 1/4" |
| Sample Line Connector | Barbed |
| Sample Line Connector Type | Barb |
| Switching Differential | 0.02 in. wc to 0.3 in. wc |
| Type Of Set Point | Adjustable |
| Width | 3 3/4" |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 13.72 |
| Ship length (cm) | 17.02 |
| Ship width (cm) | 14.99 |
| HS code | 8536509065 |
| Country of Origin | US |
