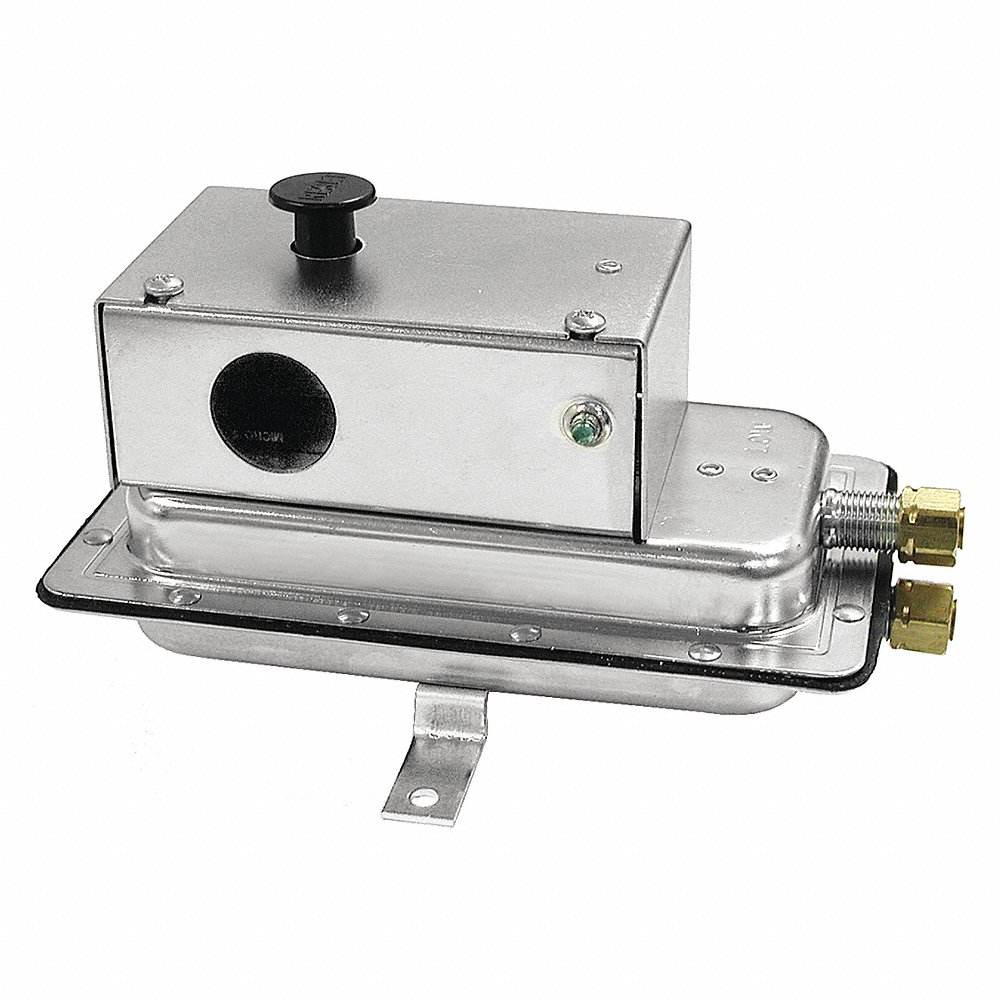

CLEVELAND CONTROLS AFS-305 Air Pressure Switch, Adjustable, Manual Reset, 0.25 Inch wc-12 Inch wc, Conduit Box, SPDT
Item: DG7JYFModel: AFS-305Cross Ref: 155T01
7 In Stock
Ships within 2 days via
5.00% off
€118.14 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Pressure Switch |
| Application | Energy Management, HVAC |
| Connection | 1/4" OD Tubing |
| Contact Form | SPDT |
| Contact Rating | 1A |
| Contact Type | SPDT |
| Direction | Uni-Directional |
| Display | No |
| Electrical Connection | Spade |
| Family Series | Cleveland Controls HVAC Sensors, AFS Series |
| Gross Weight | 1.2 lbs. |
| Housing Material | Metallic |
| Housing Type | Conduit Box |
| Max. Differential Pressure Setting | 0.8 in. wc |
| Max. Operating Temp. | 180°F |
| Max. Pressure | 0.5 psi |
| Max. Pressure Setting | 12 in. wc |
| Measurement | Inches Of Water Column |
| Media Compatibility | Air |
| Min. Differential Pressure Setting | 0.02 in. wc |
| Min. Operating Temp. | -40°F |
| Mounting Hole Center To Center Distance | 3 7/8" |
| Mounting Hole Dia. | 3/16" |
| Mounting Orientation | Vertical |
| No. Of Switches | 1 |
| Overall Depth | 3 9/16" |
| Overall Height | 6 1/8" |
| Overall Width | 3 1/4" |
| Override | Manual Reset |
| Power Required | Switch |
| Pressure Set Point | 0.25 in. wc to 12 in. wc |
| Pressure Type | Differential, Negative, Positive |
| Product Type | Air Pressure Switch |
| Rohs Compliant | Yes |
| Sample Line Connection | 1/4" UNS |
| Sample Line Connection Size | 1/4" |
| Sample Line Connector Type | Integral Compression |
| Sensor Style | Air Differential Switch |
| Series | AFS Series |
| Set Point | 1/4" to 12" |
| Switching Differential | 0.02 in. wc to 0.8 in. wc |
| Temp. | -40°F to +180°F |
| Type | Adjustable |
| Type Of Set Point | Adjustable |
Shipping Info:
| Ship weight (kg) | 0.59 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 15.24 |
| Country of Origin | US |
