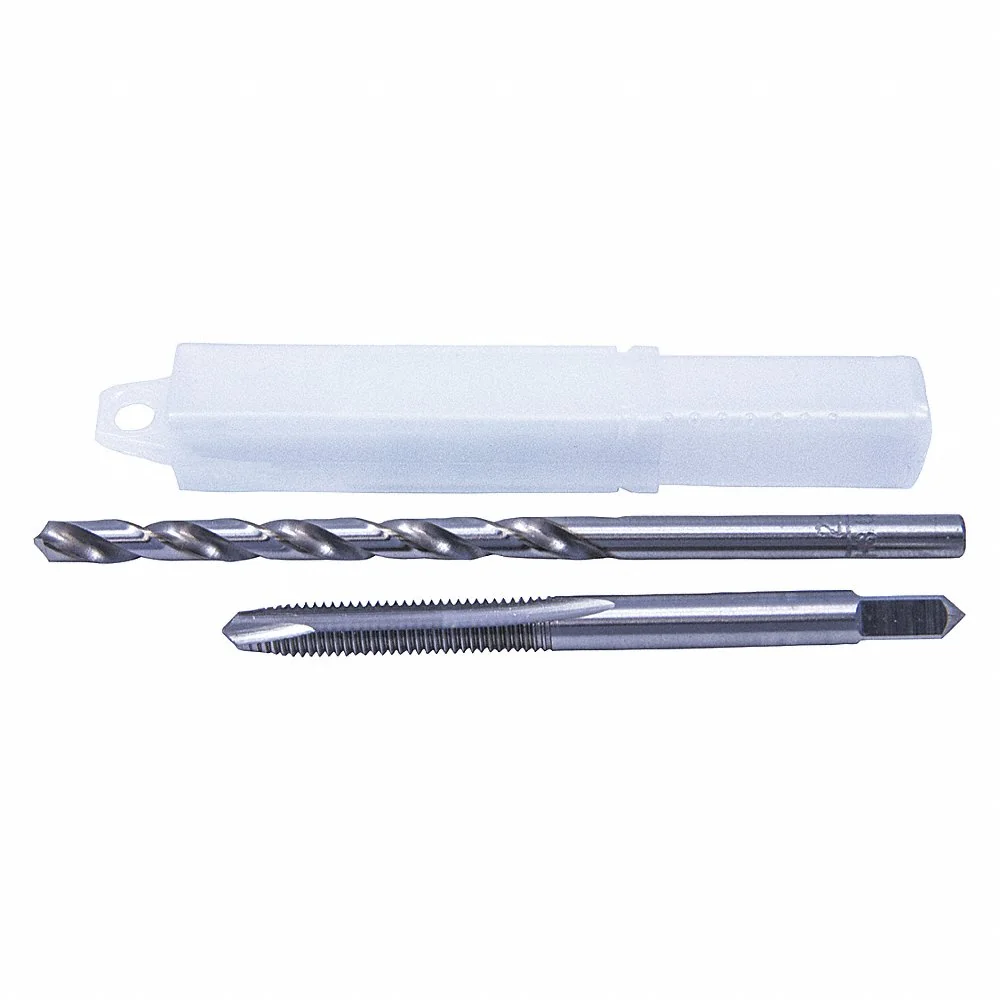

CLE-LINE C22306 Drill Bit And Tap Set, 2 Pieces, #10-32 Smallest Thread Size, #10-32 Largest Thread Size
Item: CQ8YFHModel: C22306Cross Ref: 445M76
7 In Stock
Ships within 2 days via
10.00% off
€19.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tap Set |
| Dimensional Standards | FRACTIONAL INCH |
| Dimensions Standard | Fractional Inch |
| Drill Bit Dia. Included | #21 |
| Drill Bit Finish | Bright (Uncoated) |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118° |
| Drill Series | 1898 Series |
| Drill Sizes | #21 |
| Features | Spiral Point |
| Finish | Bright |
| Impact Rated | No |
| Includes | Jobber Drills, Plastic Tube Case, Plug Spiral Point Taps |
| Largest Thread Size | #10-32 |
| Measurement System | Fractional Inch |
| Number Of Drills | 1 |
| Number Of Pieces | 2 |
| Number Of Taps | 1 |
| Primary Material Application | All Materials |
| Primary Material Application Iso Code | H, K, M, N, O, P, S |
| Secondary Material Application | Stainless Steel |
| Secondary Material Application Iso Code | M |
| Size Range | 10" to 32" |
| Sizes Included | #10-32 |
| Smallest Drill Bit Dia. | #21 |
| Smallest Thread Size | #10-32 |
| System Of Measurement | Imperial |
| Tap Chamfer | Plug |
| Tap Drill Size | #21 |
| Tap Finish | Bright |
| Tap Material | High Speed Steel |
| Tap Sizes Included | #10-32 |
| Tap Type | Spiral Point |
| Thread Direction | Right Hand |
| Thread Limit | 2B |
| Thread Pitch | 32 |
| Thread Sizes Included | #10-32 |
| Thread Standard | Unf |
| Thread Type | Nf |
| Threads Per Inch | 32 |
| Type | Spiral Point |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Tap Sizes Included | Thread Sizes Included | Largest Thread Size | Smallest Thread Size | Size Range | Sizes Included | Thread Type | Drill Bit Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C22307 | #10-24 | #10-24 | #10-24 | #10-24 | 10" to 24" | #10-24 | NC | High Speed Steel | €21.15 | |
 |
C22304 | #8-32 | #8-32 | #8-32 | #8-32 | 8" to 32" | #8-32 | NC | High Speed Steel | €20.46 | |
 |
C22301 | 1/2"-13 | 1/2"-13 | 1/2"-13 | 1/2"-13 | 1/2"-13 | 1/2"-13 | NC | High Speed Steel | €47.32 | |
 |
C22303 | 3/8"-16 | 3/8"-16 | 3/8"-16 | 3/8"-16 | 3/8" to 16" | 3/8"-16 | NC | High Speed Steel | €33.40 | |
 |
C22300 | 5/16"-18 | 5/16"-18 | 5/16"-18 | 5/16"-18 | 5/16" to 18" | 5/16"-18 | NC | High Speed Steel | €28.27 | |
 |
C22302 | 7/16"-14 | 7/16"-14 | 7/16"-4 | 7/16"-14 | 7/16"-14 | 7/16"-14 | NC | High Speed Steel | €42.87 | |
 |
C22308 | 1/4"-20 | 1/4"-20 | 1/4"-20 | 1/4"-20 | 1/4"-20 | 1/4"-20 | NC | High Speed Steel | €23.67 |
