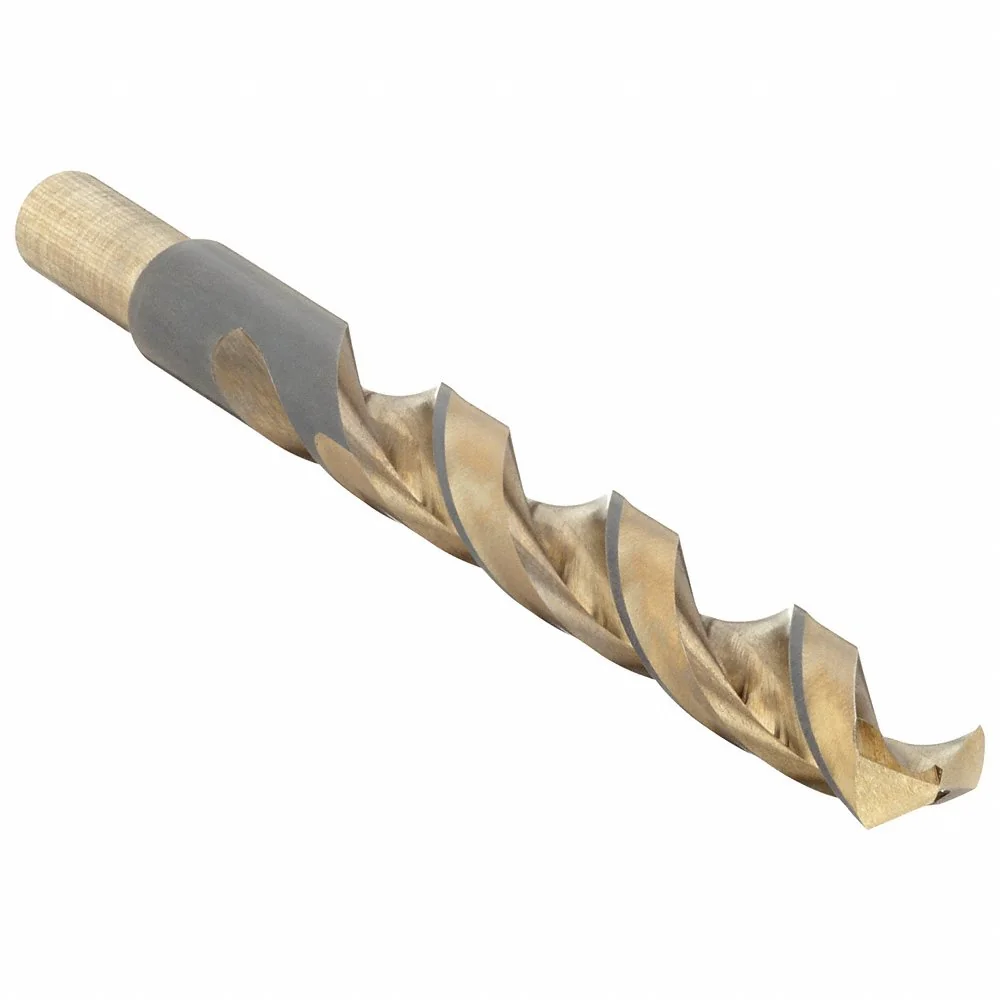

CLE-LINE C18712 Reduced Shank Drill Bit, 27/64 Inch Size, 5 3/8 Inch Overall Length
Get it by Monday, Feb 16
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reduced Shank Drill Bit |
| Application | For Aluminum, Low Alloy And Stainless Steels |
| Color | Black, Gold |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.4219 |
| Depth X Dia. Ratio | 8xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 27/64" |
| Drill Diameter Tolerance | -0.001" to 0" |
| Finish - Machining | Black, Gold |
| Flute Length | 3 15/16" |
| Flute Type | Parabolic |
| Grade | Heavy Duty |
| Helix Angle | 40° |
| Left/right Hand | Right |
| List Number | 1873 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | Heavy Duty |
| Max. Drilling Depth | 1.688" |
| Maximum Drilling Depth | 1 11/16" |
| No. Of Pieces | 1 |
| Number Of Flutes | 2 |
| Overall Length | 5 3/8" |
| Point Angle | 135° |
| Point Type | Split Point |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Magnesium, Steel |
| Primary Material Application Iso Code | K, N, P |
| Shank Dia. | 1/2" |
| Shank Length | 1" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Silver & Deming Drill | Yes |
| Size | 0.422" |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Flute Length | Overall Length | Shank Dia. | Decimal Equivalent | Finish | Drill Bit Size | Drill Bit Point Angle | Drill Bit Point Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C20696 | 3 1/8" | 6" | 1/2" | 1.0625 | Black Oxide | 1 1/16" | 118° | Conventional Point | €98.42 | |
 |
C17094 | 3 1/8" | 6" | 1/2" | 1.5 | Black Oxide | 1 1/2" | 118° | Split Point | €269.55 | |
 |
C20730 | 79.38 mm | 6" | 1/2" | 1.0039 | - | 1 1/32" | 118° | Conventional Point | €107.35 | |
|
C17078 | 3 1/8" | 6" | 1/2" | 1.25 | Black Oxide | 1 1/4" | 118° | Split Point | €161.99 | |
|
C20699 | 3 1/8" | 6" | 1/2" | - | Black Oxide | 1 1/4" | 118° | Conventional Point | €126.06 | |
|
C20697 | 3 1/8" | 6" | 1/2" | 1.125 | Black Oxide | 1 1/8" | 118° | Conventional Point | €103.92 | |
|
C17070 | 3 1/8" | 6" | 1/2" | 1.125 | Black Oxide | 1 1/8" | 118° | Split Point | €127.74 |
