CHIEF 212776 Hydraulic Cylinder, 4 Inch Bore x 72 Inch Stroke
Get it by Friday, Aug 14
5.00% off
€1,494.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Cylinder |
| Base Mount | Cross Tube |
| Bore Dia. | 4" |
| Column Load | 10570 lbs. |
| Extended Length | 159" |
| Max. Pressure | 3000 psi |
| Pin Dia. | 1 1/4" |
| Port Size | #8 SAE |
| Retracted Length | 87" |
| Rod Dia. | 2 1/4" |
| Rod End Mount | Cross Tube |
| Series | WT Series |
| Single Acting/double Acting | Double Acting |
| Stroke Length | 72" |
Shipping Info:
| Ship weight (kg) | 87 |
| Country of Origin | CN |
Product Variants
| Product | Model | Stroke Length | Max. Pressure | Bore Dia. | Rod Dia. | Retracted Length | Port Size | Pin Dia. | Column Load | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

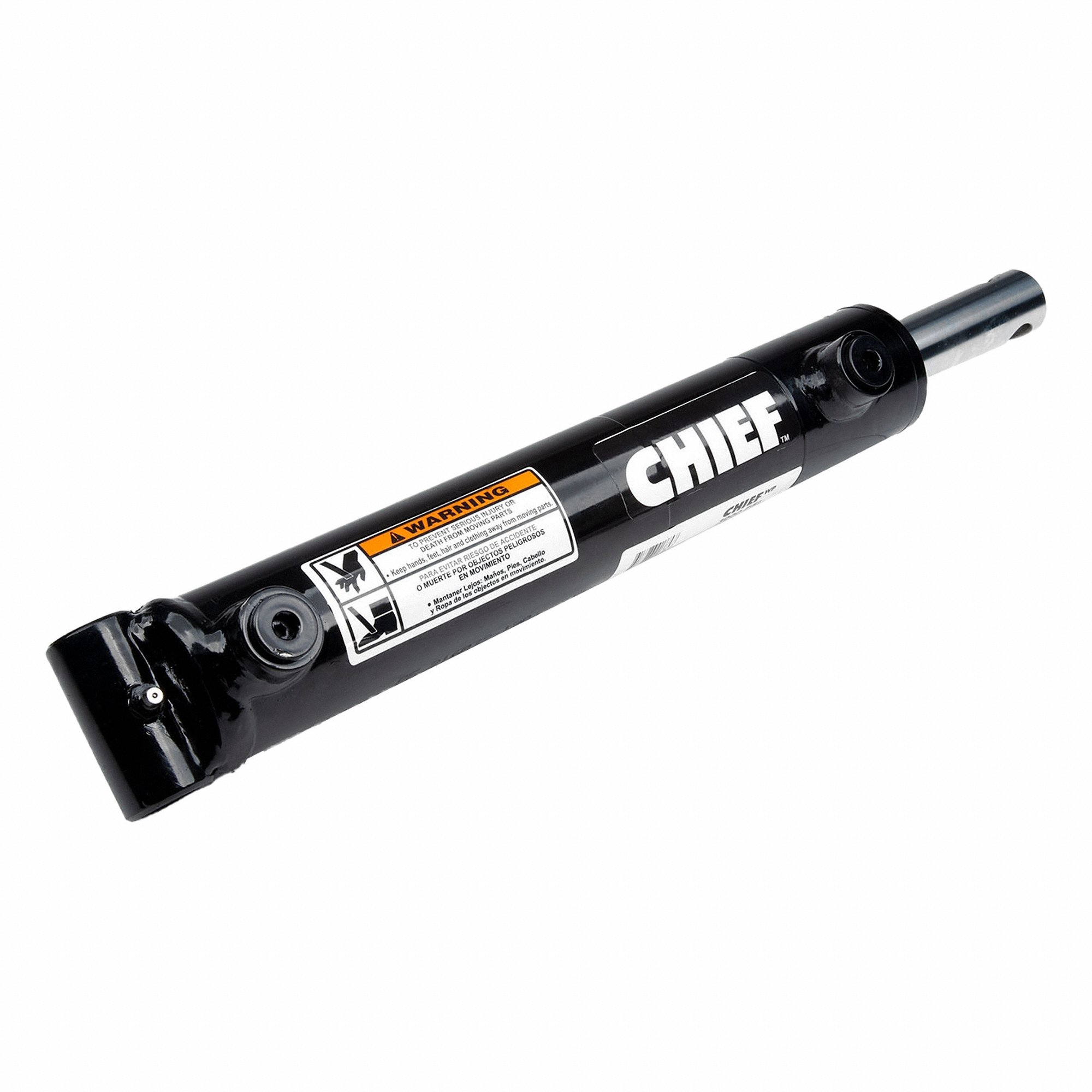

287226 | 72" | 3000 psi | 2" | 1 1/4" | 80" | #8 SAE | 3/4" | 1130 lbs. | €535.02 | |
 |

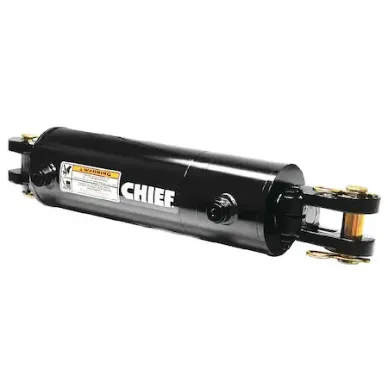

287002 | 6" | 3000 | 2" | 1 1/8" | 16 1/4" | SAE 8 | 1" | 9420 lbs. | €247.44 | |
|
287029 | 4" | 3000 psi | 3" | 1 1/2" | 14 1/4" | #8 SAE | 1" | 21200 lbs. | €311.08 | |
|

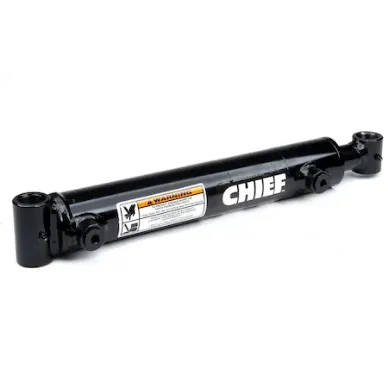

212727 | 6" | 3000 psi | 3" | 1 3/4" | 14" | #8 SAE | 1" | 21200 lbs. | €274.48 | |
|
212696 | 24" | 3000 psi | 2 1/2" | 1 1/2" | 32" | #8 SAE | 1" | 14725 lbs. | €482.15 |
