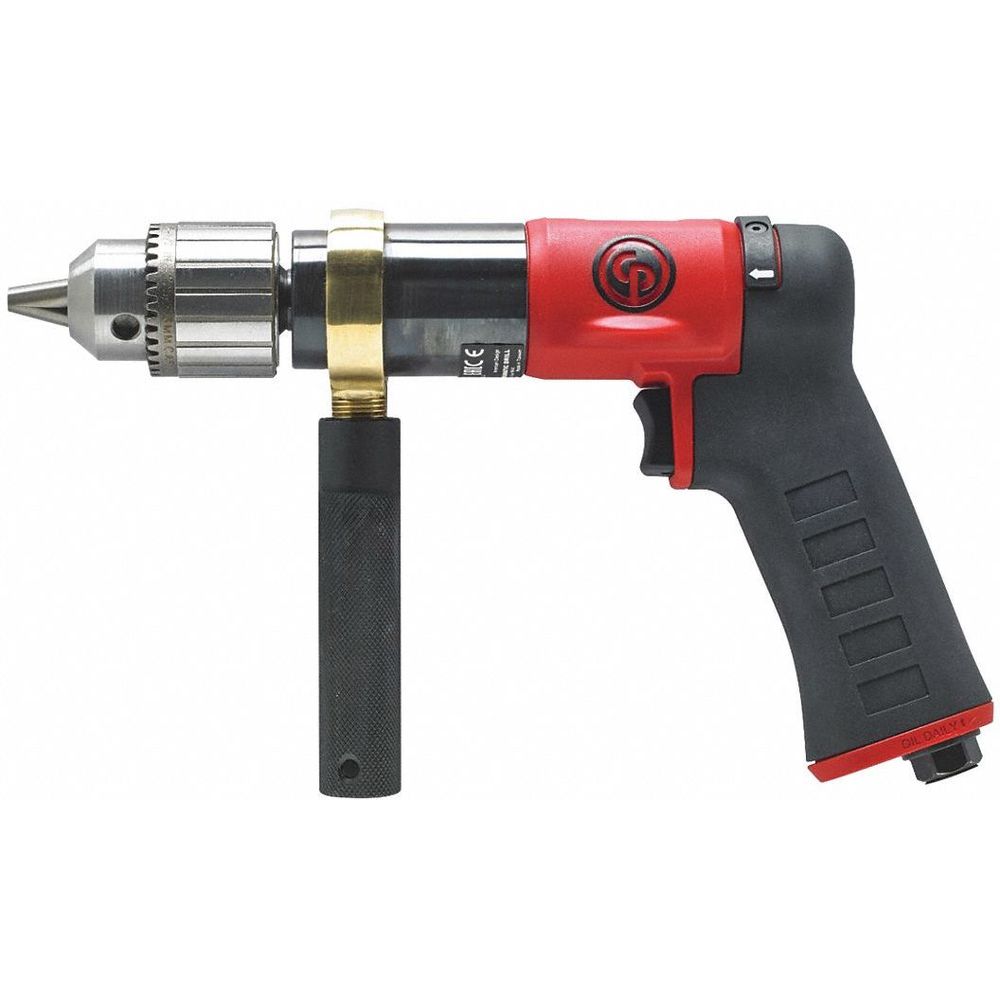

CHICAGO PNEUMATIC CP9789C Air Drill
Item: CD2PYJModel: CP9789CCross Ref: 468H74
7 In Stock
Ships within 2 days via
5.00% off
€451.29 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Drill |
| Air Consumption | 27.5 CFM |
| Air Inlet | 1/4" |
| Application | Drilling, Reaming Holes |
| Average Cfm @ 15 Sec. Run Time | 6.9 CFM |
| Bearing Design | Ball |
| Bearing Type | Ball |
| Body Style | Pistol Grip |
| Body Type | Pistol |
| Cfm @ Full Load | 27.6 CFM |
| Chuck Material | Metal |
| Chuck Size | 1/2" |
| Drill Chuck Type | Keyed |
| Drilling Capacity In Cast Iron | 1/2" |
| Drilling Capacity In Steel | 3/8" |
| Duty Rating | Industrial Duty |
| Exhaust Location | Handle |
| Free Speed | 840 RPM |
| Gear Train | Planetary |
| Handle Material | Rubber |
| Handle Type | Pistol Grip |
| Housing Material | Composite |
| Hp | 1/2 hp |
| Included | Chuck Key, Jacobs Chuck |
| Max. Torque | 10.3 lbs.-ft. |
| Min. Hose Size | 3/8" |
| Min. Torque | 0 lbs.-ft. |
| Noise Level | 88.3 dBA |
| Overall Height | 6" |
| Overall Length | 10 3/8" |
| Overall Width | 1 7/8" |
| Power Source | Air Powered |
| Required Pressure | 90 psi |
| Reversible | Yes |
| Side To Center | 2" |
| Spindle Thread Size | 3/8"-24 |
| Throttle Type | Trigger |
| Tool Weight | 3.1 lbs. |
| Torque | 0 lbs.-ft. to 10.3 lbs.-ft. |
| Variable Speed | Yes |
| Vibration Level | 2.5 m/sq. sec. |
Shipping Info:
| Ship weight (kg) | 0.88 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 26.16 |
| Ship width (cm) | 4.57 |
| Country of Origin | TW |
